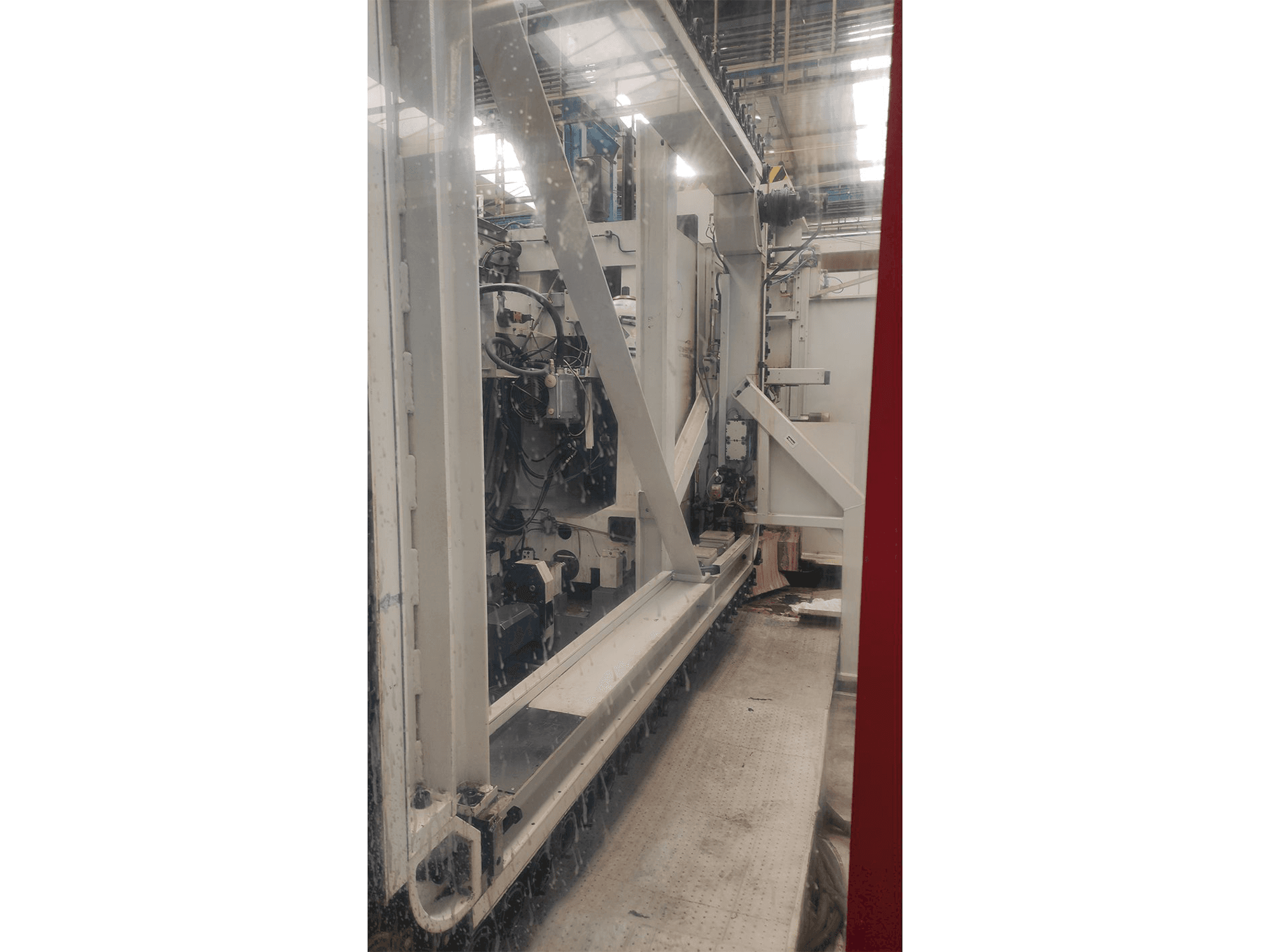

Starrag Heckert CWK 500 Vertical machining center

Show in original language

This Starrag Heckert CWK 500 Vertical machining center was made in Germany in 2001. It has been working for 60513 hours. It is operated through a Siemens 840D control unit. This 4 axis machine can works with a spindle speed up to 6000 rpm. It has been replaced for a new spindle and palette mechanism. It comes with a new chip conveyor since 2019. Very good condition, regularly serviced.

Overview

brand: Starrag Heckert
year: 2001
MODEL: CWK 500
production hours: 60513
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - Starrag Heckert CWK 500

General Data

Measurements width: 5640 mm
Measurements depth: 3480 mm
Measurements height: 2950 mm
Machine weight: 15500 KG

Control Unit

Model: 840D
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/MIN
Spindle motor power: 37 kW
Number of axis: 4

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 805 mm

Workpiece

Workpiece drm: 800 mm
Workpiece weight: 800 KG

Table

Outer length: 500 mm
Outer width: 500 mm
Min distance between vertical spindle and table: 100 mm
Max distance between vertical spindle and table: 700 mm

Tools

Slots in storage: 80
Max weight: 35 KG
Max tool diameter: 125/250 mm
Max tool length: 450 mm
Type of tool holder: SK 50

Media

Power consumption: 96 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Simultaneous axis operation
- - Table rotation: 360 x 1 º
- - Max. Workpiece diameter: 800 mm
- - Palette change time 10 s
- - Rapid feedrate: 32 m/min
- - Torque: 1190/1400 nm (100/40%)
- - Through spindle coolant
Qualitative Machine Benefits:
- - Includes machine manual
- - Very good condition
- - Regularly serviced
- - Very good accuracy
- - Major repairs done: new spindle / palette change mechanism
- - New chip conveyor in 2019

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
