➤ Used STAMA MC 531/SINGLE For Sale | gindumac.com

Show in original language

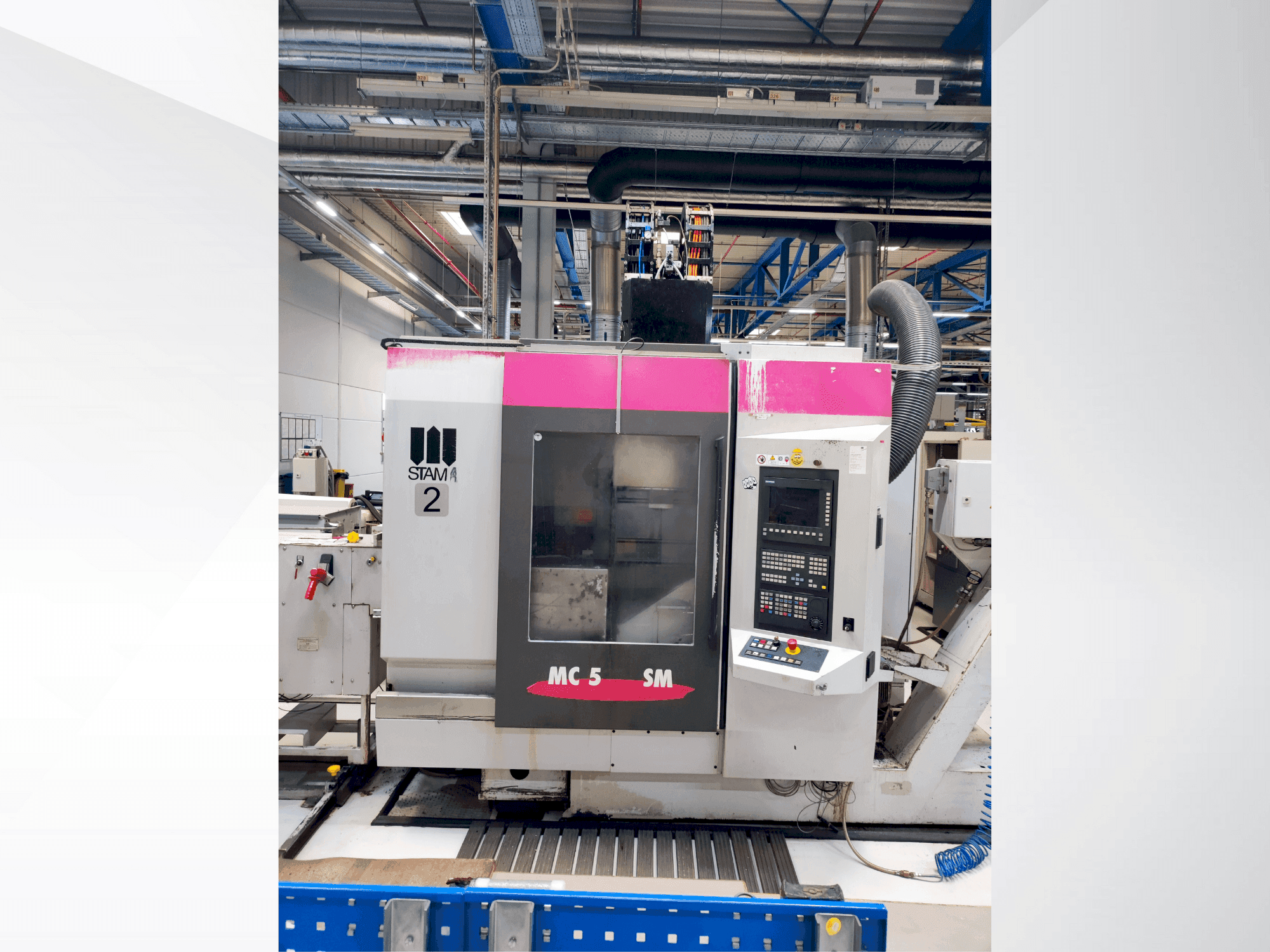

This 5-axis STAMA MC 531/SINGLE vertical machining center was manufactured in 2000. It features a robust single-spindle design, with traverse paths of 800/400/350mm and a quill stroke of 350mm. Equipped with a SK40 tool holder, it can handle a maximum tool diameter of 125mm and a tool length of 250mm. The machine includes a coolant cleaning system, chip conveyor, and a rotary swivelling device. Reach out for further details regarding this vertical machining center.

Overview

brand: STAMA
year: 2000
MODEL: MC 531/SINGLE
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: SIEMENS 840 D

Technical Information - STAMA MC 531/SINGLE

General Data

Measurements width: 4200 MM
Measurements depth: 6200 MM
Measurements height: 3300 MM
Machine weight: 7200 KG

Control Unit

Brand: SIEMENS 840 D

Main drive

Tool taper: SK40

Movement

X-AXIS Movement: 800 mm
X-AXIS Feed Force: 7000 N
X-AXIS Rapid traverse: 45 m/min
Y-AXIS Movement: 400 mm
Y-AXIS Feed Force: 7000 N
Y-AXIS Rapid traverse: 45 m/min
Z-AXIS Movement: 350 mm
Z-AXIS Feed Force: 12000 N
Z-AXIS Rapid traverse: 45 m/min

Tools

Slots in storage: 60
Max tool diameter: 125 mmm
Max tool length: 250 mm

Media

Chip conveyor: Yes

Additional equipment

- Coolant cleaning system
- Rotary swivelling device
- Bar magazine
- Hydraulic unit
- The machine has a SIEMENS 840 D control and a working memory of 32 MB.

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle torque: 70 nm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
