➤ Used STAMA MC 526/M For Sale | gindumac.com

Show in original language

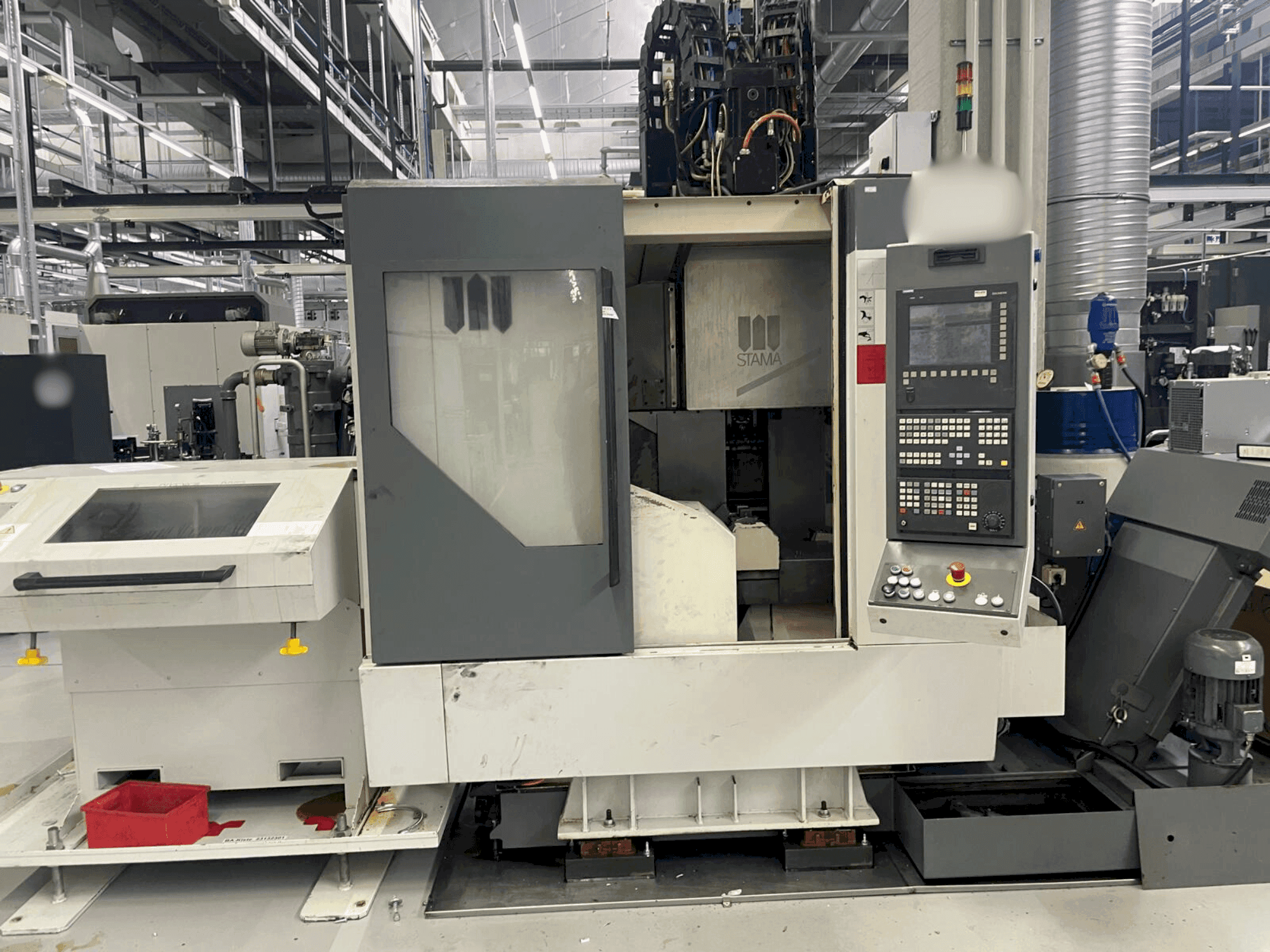

This 7-axis STAMA MC 526/M was manufactured in 2005, featuring a Siemens Sinumerik 840 D control system. It includes a milling spindle with a speed of 10,500 rpm and a turning spindle speed of 5,000 rpm. The machine offers a tool magazine with 132 tools capacity and rapid traverse rates up to 60 m/min. Ideal for complex milling and turning tasks. If you are looking to get high-quality milling and turning capabilities consider the STAMA MC 526/M machine we have for sale. Contact us for more information.

Overview

brand: STAMA
year: 2005
MODEL: MC 526/M
application type: Milling
Location: Austria
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: SIEMENS

Technical Information - STAMA MC 526/M

General Data

Measurements width: 7400 mm
Measurements depth: 5000 mm
Measurements height: 3300 mm
Machine weight: 6600 kg

Control Unit

Brand: SIEMENS
Model: SINUMERIK 840 D

Movement

X-AXIS Movement: 520 mm
X-AXIS Working Feed: 1 – 10000 mm/min
X-AXIS Feed Force: 4000 N
X-AXIS Rapid traverse: 60 m/min
Y-AXIS Movement: 400 mm
Y-AXIS Working Feed: 1 – 10000 mm/min
Y-AXIS Feed Force: 4000 N
Y-AXIS Rapid traverse: 60 m/min
Z-AXIS Movement: 360 mm
Z-AXIS Working Feed: 1 – 10000 mm/min
Z-AXIS Feed Force: 8000 N
Z-AXIS Rapid traverse: 60 m/min

Tools

Slots in storage: 42
Max tool diameter: 125 mm
Max tool length: 250 mm

Clamping unit

Clamping force: 8000 N KN

Media

Chip conveyor: Yes

Additional equipment

- Bar Loader Magazine IRCO RBK 8008
- Short Bar Loader
- Coolant System with Belt Filter for IKZ Internal Tool Cooling
- Hornbeam Feed
- Various Tool Holders
- Machine Manuals

Additional Information

Machine Benefits

Technical Machine Benefits:
- - B axis: turning spindle
- - Swivel/rotation heads: -30° to +90°
- - Total power consumption: 46 kva
- - Total power requirement: 36 kw
- - Max milling power: 350 cm³
- - Max boring diameter: 36 mm
- - Max thread diameter: m30

Extra information

- 2 Units Available. Machines still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
