SPINNER VC 450 Vertical Machining Center

Show in original language

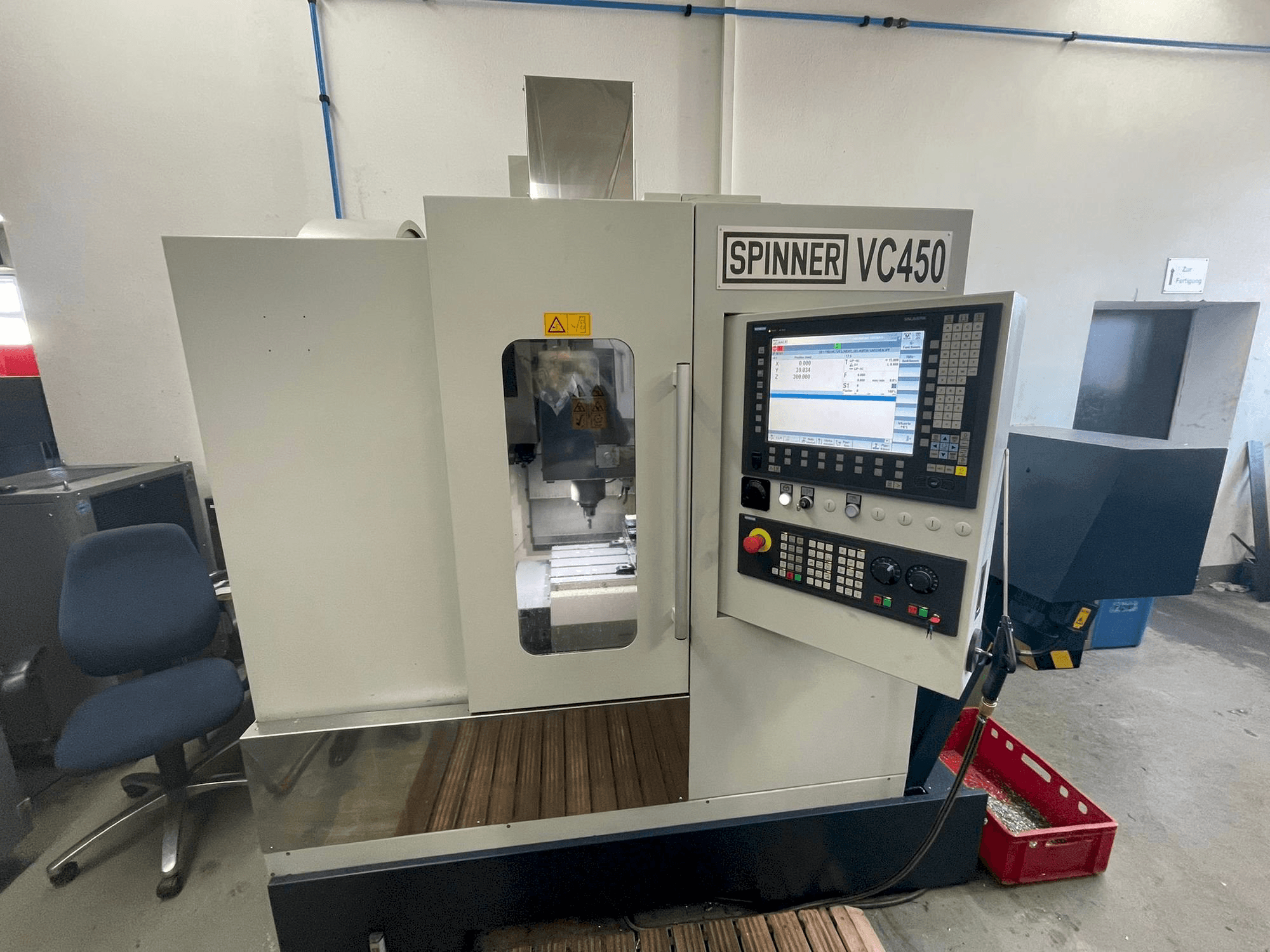

This SPINNER VC 450 Vertical Machining Center was manufactured in the year 2017 in Germany and has 4827 production hours. It is operated through a Siemens 840D control unit. This 3 axis machine can operate with a spindle speed up to 15000 rpm.

Overview

brand: SPINNER
year: 2017
MODEL: VC 450
production hours: 4827
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - SPINNER VC 450

General Data

Measurements width: 2390 mm
Measurements depth: 1700 mm
Measurements height: 2515 mm
Machine weight: 3500 kg

Control Unit

Model: 840D
Brand: SIEMENS

Main drive

Spindle speed range: 15000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 450 mm
X-AXIS Rapid traverse: 36 m/min
Y-AXIS Movement: 400 mm
Y-AXIS Rapid traverse: 36 m/min
Z-AXIS Movement: 400 mm
Z-AXIS Rapid traverse: 36 m/min

Table

Outer length: 770 mm
Outer width: 410 mm
Table load: 200 kg

Tools

Type of tool holder: SK40

Media

Chip conveyor: Yes

Additional equipment

- accessories: approx. 40 SK40 receptacles

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool magazine: 24
- - Min. Distance spindle nose - table 115 mm
- - Max. Distance spindle nose - table 515 mm
- - T-slots 16, 4 mm, 100 mm
- - Power pmax 16 kw
- - Torque mmax 60 nm
- - Max. Tool diameter 80 mm max.
- - Tool length 200 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
