➤ Used SPINNER SB-32-T-V4 For Sale | gindumac.com

Show in original language

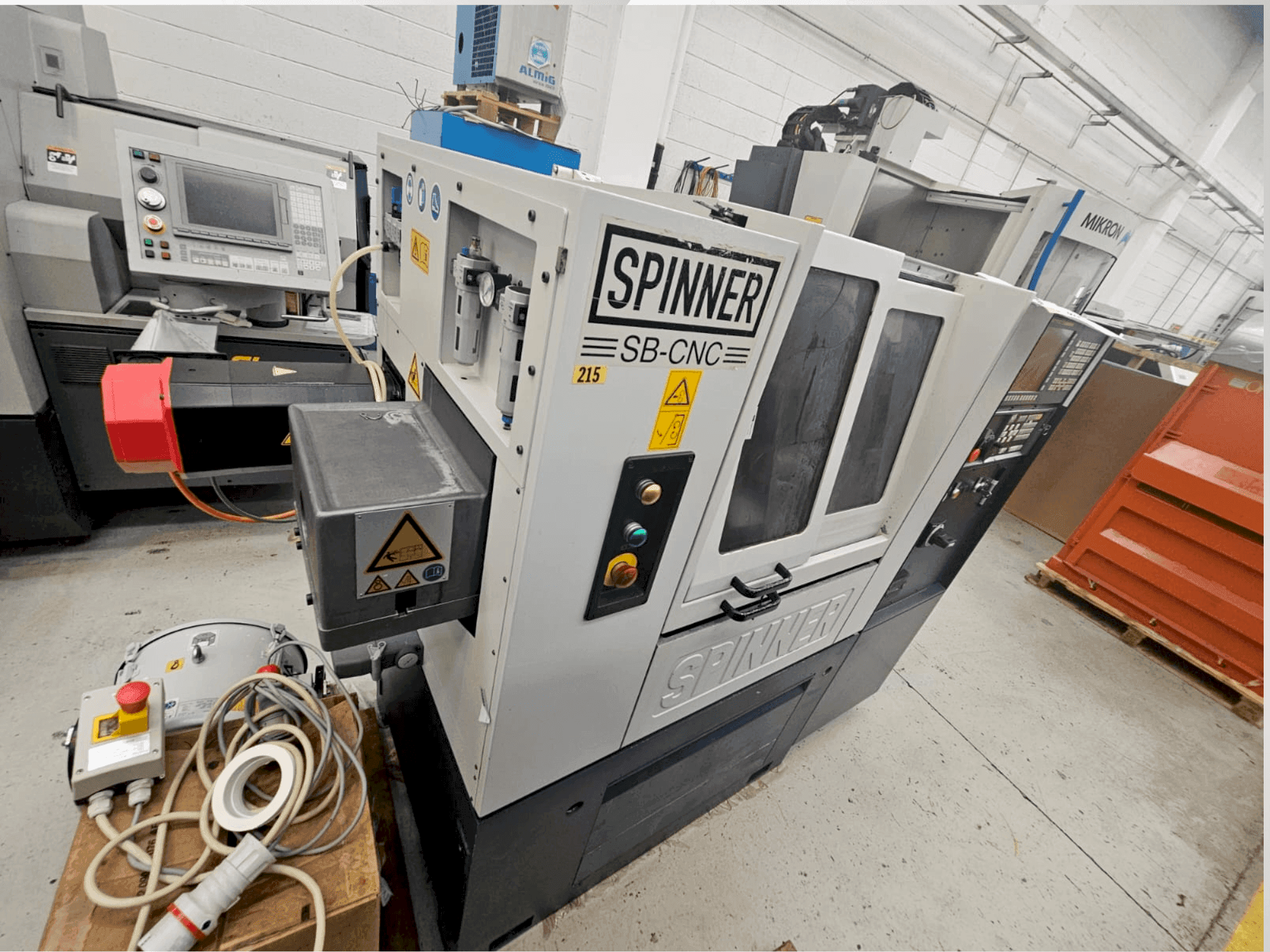

This 3-axis SPINNER SB-32-T-V4 horizontal turning machine was manufactured in 2016. It features a 250 mm X-axis travel, 285 mm Z-axis travel, and a spindle speed of 8,000 rpm with a 32 mm screw diameter. Equipped with a FANUC 32iB control unit and a 16-station turret with 8 motorized stations for enhanced milling and drilling. If you are looking to get high-quality turning capabilities, consider the SPINNER SB-32-T-V4 machine we have for sale. Contact us for more information.

Overview

brand: SPINNER
year: 2016
MODEL: SB-32-T-V4
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: FANUC

Technical Information - SPINNER SB-32-T-V4

Control Unit

Brand: FANUC
Model: Series 32iB

Main drive

Spindle speed range: 8000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 250 mm
Y-AXIS Movement: 285 mm

Turret

Number of turrets: 16

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Flat flange spindle head: 100 mm
- - Clamping cylinder bore: 32 mm
Qualitative Machine Benefits:
- - 16-station turret with 8 motorized stations for milling and drilling operations
- - Pneumatic tailstock mk2
- - C-axis for spindle including software options for frontal and external machining

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
