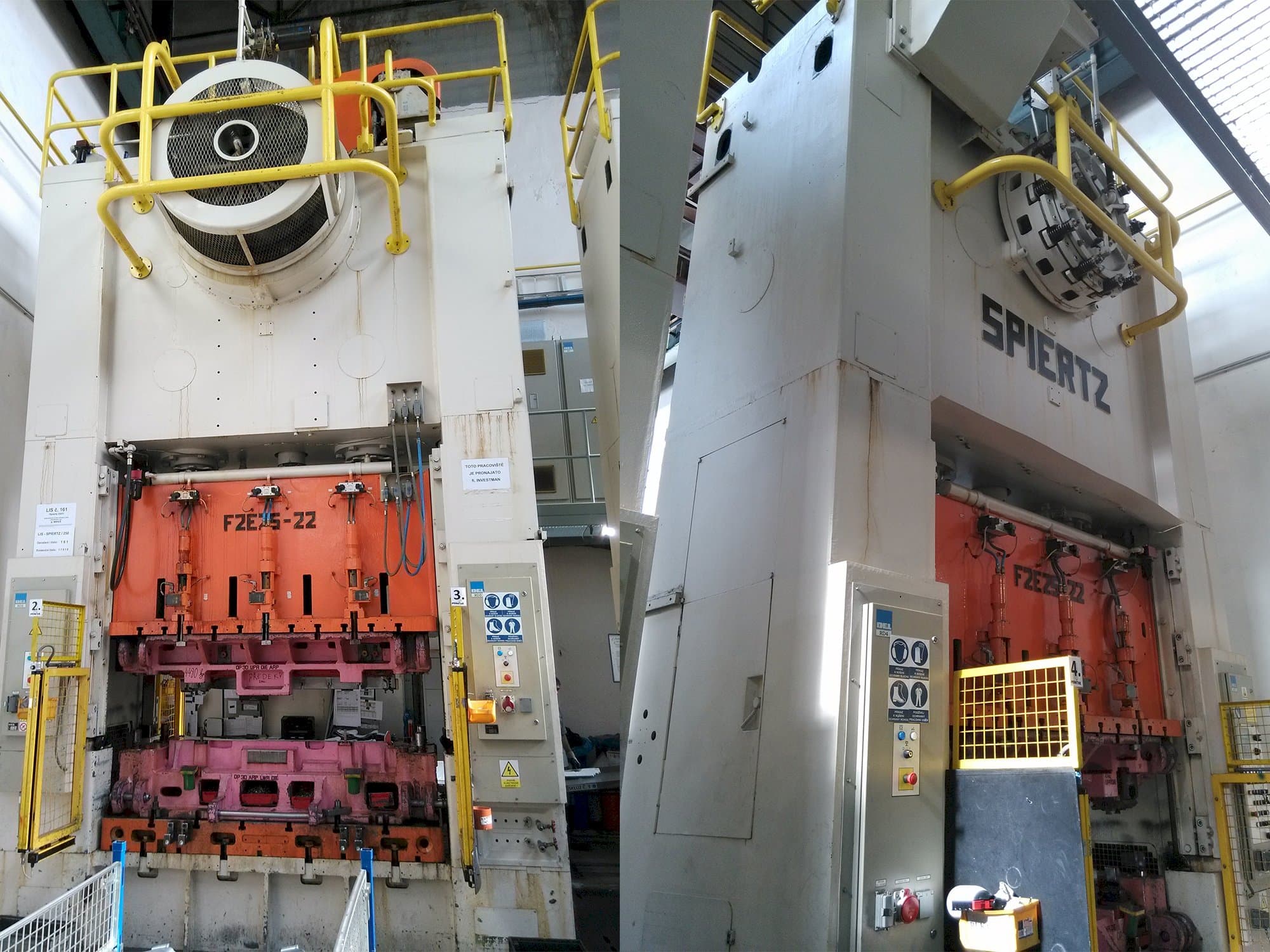

Spiertz F2E 25x2.2 Stamping Machine

Show in original language

This Spiertz F2E 25x2.2 Stamping Machine from France was built in 1982 and completely overhauled in 2001. Equipped with a SIEMENS SIMATIC OP7 Control unit, this machine can operate with a stamping force of 2500 kN.

Overview

brand: Spiertz
year: 1982
MODEL: F2E 25x2.2
application type: Other Sheet Metal Machinery
Location: Czech Republic
machine type: Stamping Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - Spiertz F2E 25x2.2

General Data

Measurements width: 3900 mm
Measurements depth: 3350 mm
Measurements height: 8650 mm
Machine weight: 64000 kg

Control Unit

Model: Simatic OP7
Brand: SIEMENS

Main drive

Stamping force: 2500 kN
Stroke: 460 mm

Table

Outer length: 2200 mm
Outer width: 1200 mm

Additional Information

Machine history

Industries: Automotive

Machine Benefits

Technical Machine Benefits:
- - Ram slide adjustment 300 mm
- - Ram size 2200 x 1200 mm
- - Ram strokes per minute 15/30
- - Cushion drawing 210 mm
- - Cushion force 420 kn
- - Max. Tool weight on ram/table 4100/12000 kg
- - Optical safety guards
- - Main motor power 75 kw
Qualitative Machine Benefits:
- - Press completely overhauled in 2001 (new control system, electrical, mechanical parts)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
