Soraluce TR 35 Milling Machine

Show in original language

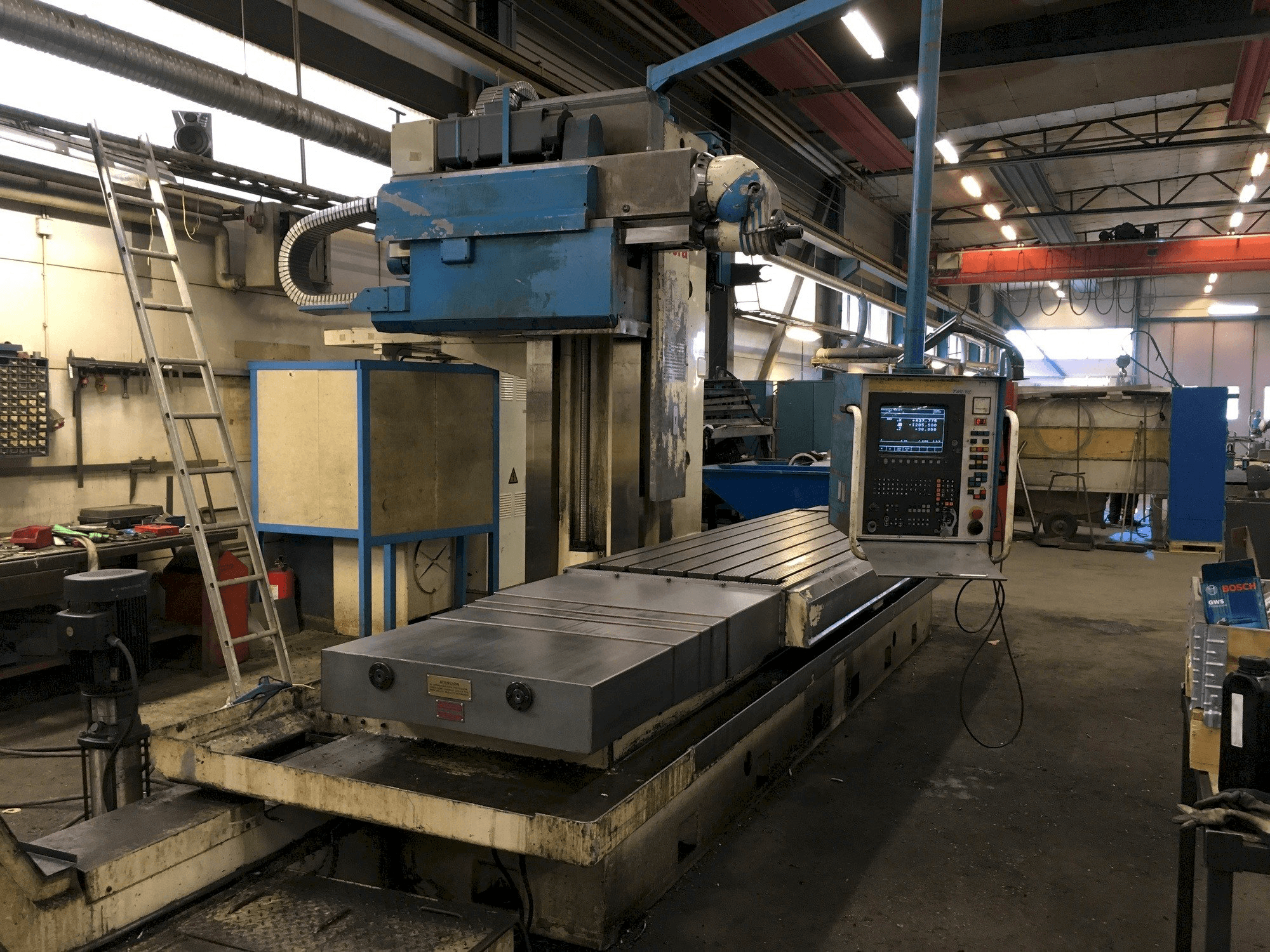

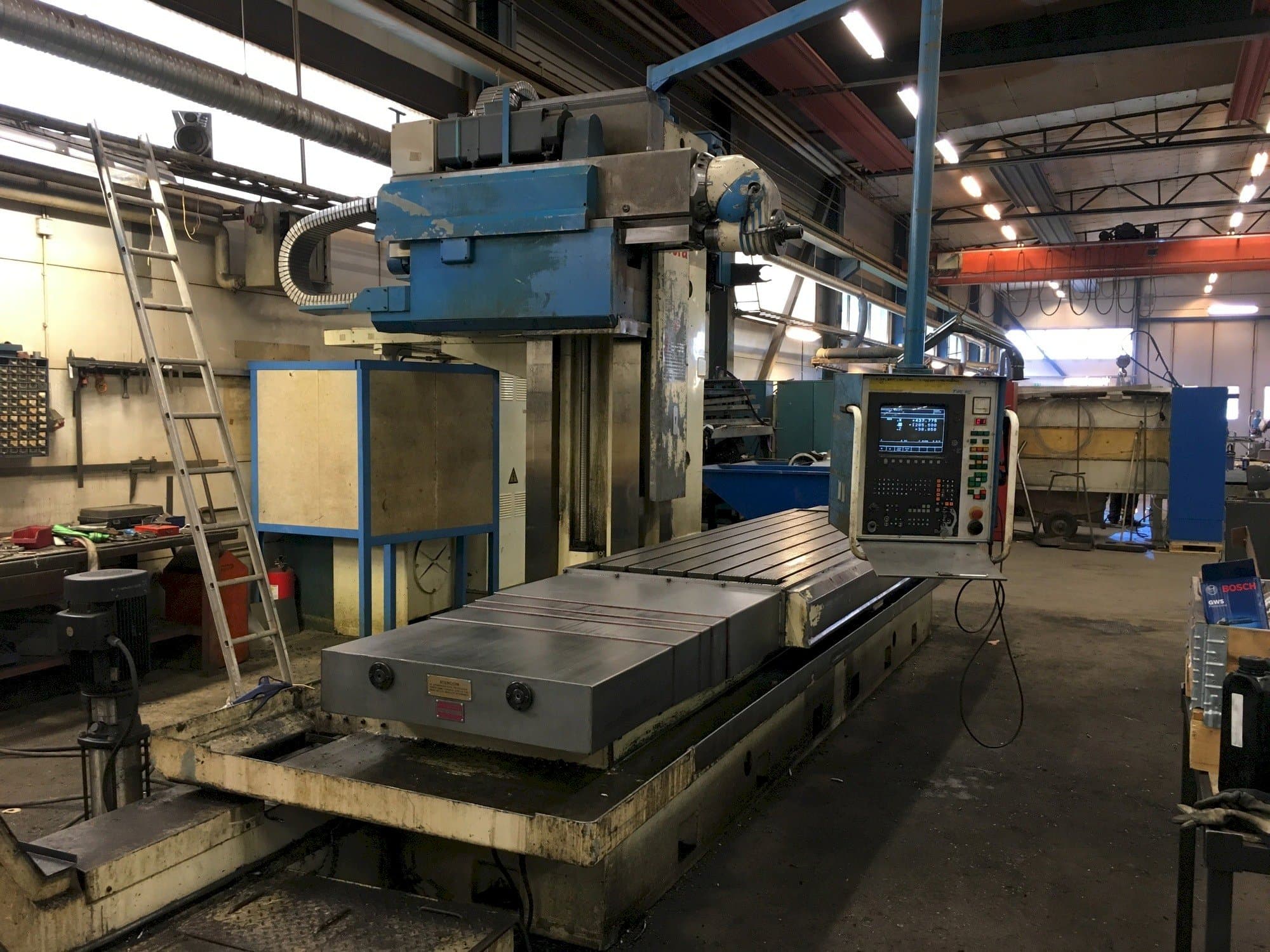

This Soraluce TR 35 Milling Machine was built in 1990 in Spain. It is operated through a Heidenhain 415 control unit. This machine can works with a spindle speed up to 2000 rpm. It comes with an ATC 30 positions, a chip conveyor and an external cooling.

Overview

brand: Soraluce
year: 1990
MODEL: TR 35
production hours: 23000
application type: Milling
Location: Sweden
machine type: CNC Milling Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Soraluce TR 35

General Data

Measurements width: 8200 mm
Measurements depth: 4750 mm
Measurements height: 3900 mm
Machine weight: 23500 kg

Control Unit

Model: 415
Brand: HEIDENHAIN

Main drive

Spindle speed range: 2000 1/MIN

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 1600 mm
Z-AXIS Movement: 1000 mm

Media

Chip conveyor: Yes

Additional Information

Machine history

Material type: Aluminium, cast iron, steel

Machine Benefits

Technical Machine Benefits:
- - Automatic indexing head 5+5 degree
- - Atc 30 positions
- - Hr hand controll
- - Some tool holders/tapers
- - It stands on the ground, no foundation need it

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
