Soraluce - TA 35RO-MIL-SOR-2007-00002
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Soraluce TA 35 Milling Machine

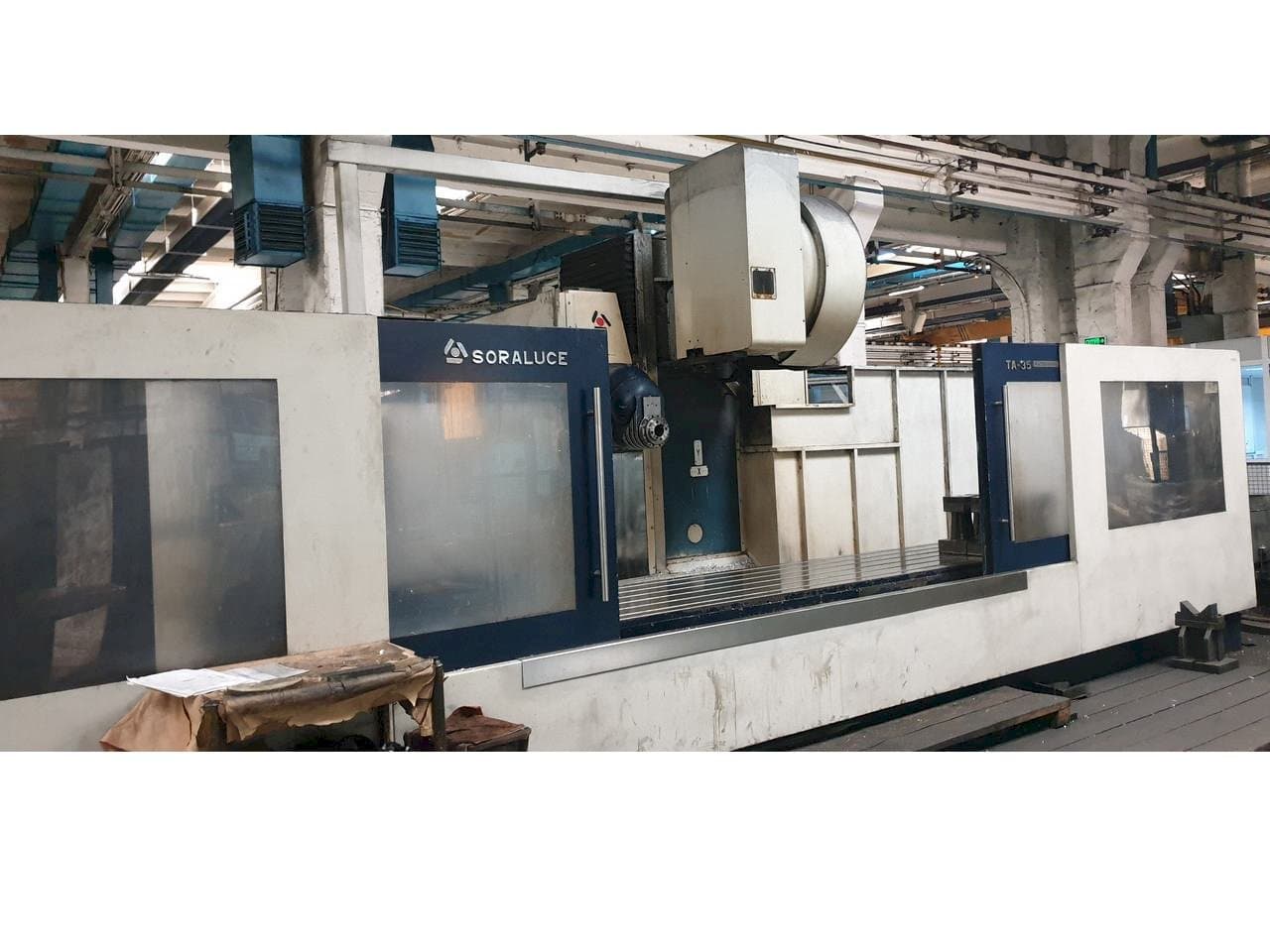

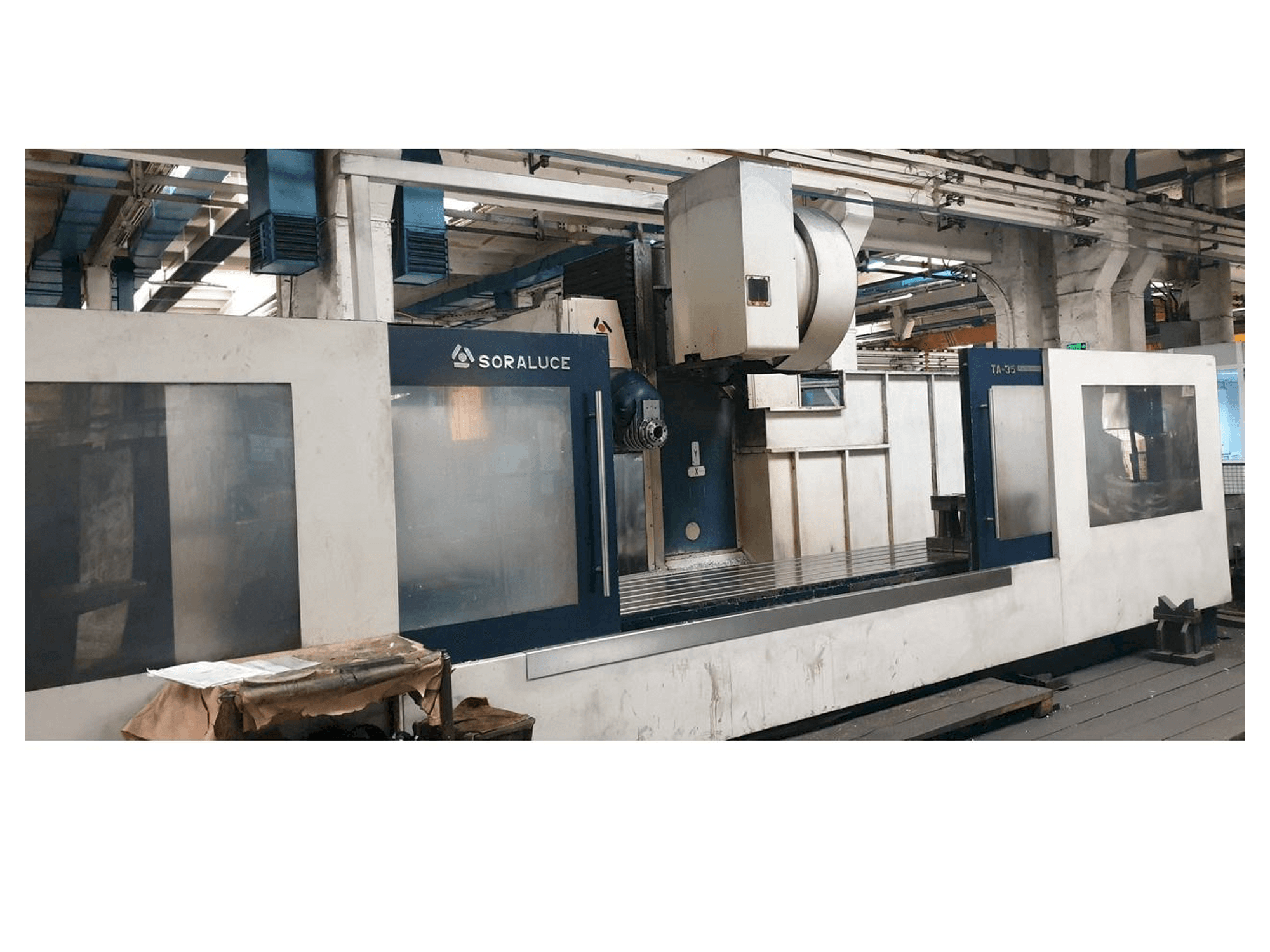

This Soraluce TA 35 Milling Machine was built in the year 2007. It is equipped with a Heidenhain iTNC 530 control unit. It has approximately 38000 working hours. This machine can work with a spindle speed range of 15 - 3000 rpm, a vertical course of 1250 mm, and a longitudinal course of 3500 mm.
Overview
- brand: Soraluce
- year: 2007
- MODEL: TA 35
- production hours: 38000
- application type: Milling
- Location: Romania
- machine type: CNC Milling Machine
- availability: Sold
- control unit brand: Heidenhain
Technical Information - Soraluce TA 35
Control Unit
- Brand: Heidenhain
- Model: iTNC 530
Main drive
- Spindle speed range: 15 - 3000 1/MIN
Table
- Table load: 2500 kg
Additional Information
- Technical Machine Benefits:
- - Vertical course: 1250 mm
- - Longitudinal course: 3500 mm
- - Transversal ram course: 1000 mm
- - Table width of t-slots: 22 mm
- - Mandrel motor power: 24 kw
- - Mandrel headstock cone: din-69871-a
- - Maximum working feeds: 10000 mm/min
- - Fast feeds: 20000 mm/min
- - Maximum thrust of shaft to cutting unit: 10000 n
- - Head: 2. 5 x 2. 5
- Qualitative Machine Benefits:
- - Atc 40
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
