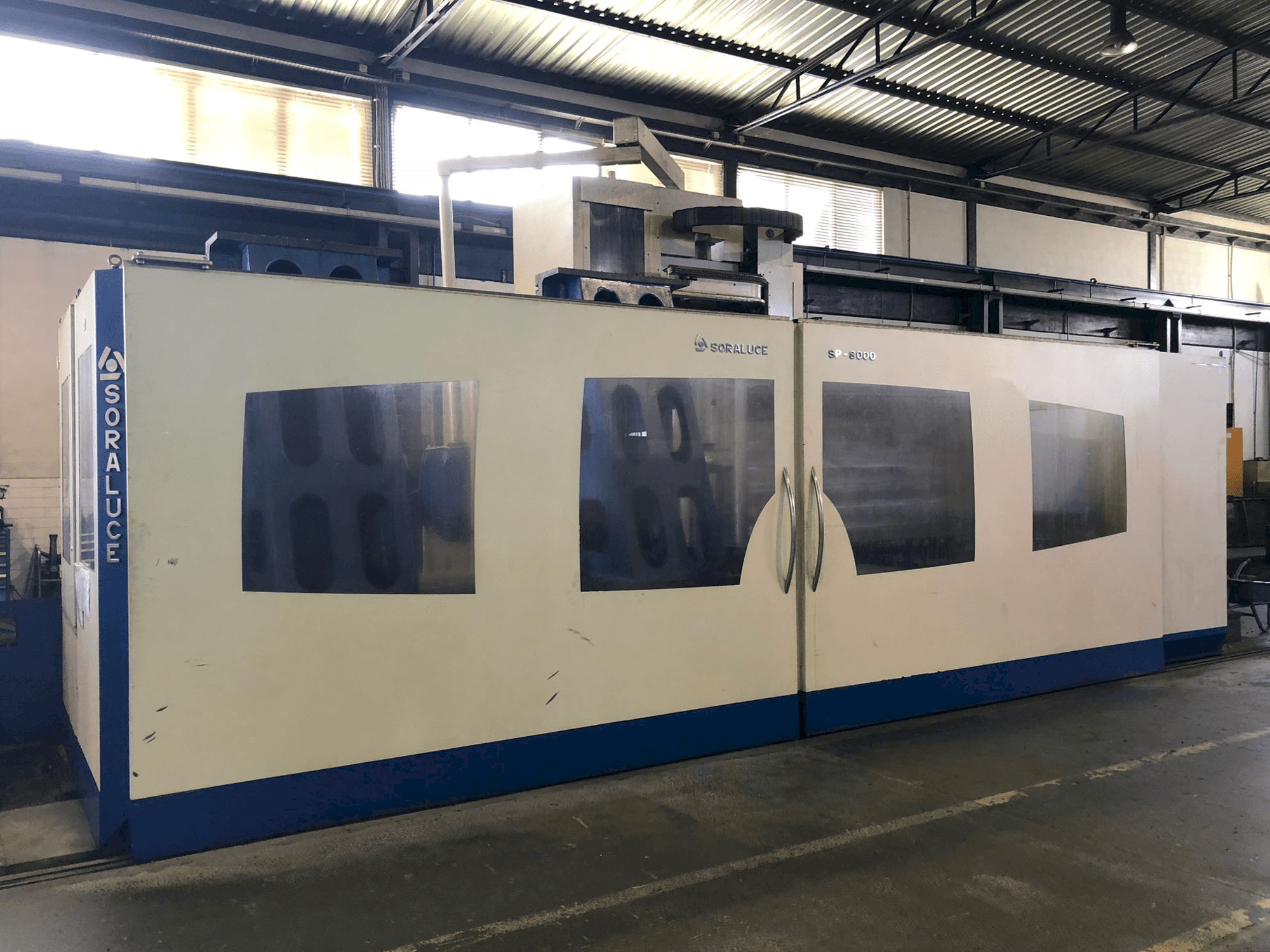

Soraluce SP 8000 Milling Machine

Show in original language

This Soraluce SP 8000 Milling Machine from 2004 was manufactured in Spain and has been operative for approximately 19566 production hours. Equipped with a Heidenhain 530 control unit, this reliable machine presents good conditions.

Overview

brand: Soraluce
year: 2004
MODEL: SP 8000
production hours: 19566
application type: Milling
Location: Portugal
machine type: Gantry Milling Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Soraluce SP 8000

General Data

Measurements width: 12000 mm
Measurements depth: 6130 mm
Measurements height: 4500 mm
Machine weight: 46000 kg

Control Unit

Model: 530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1

Movement

X-AXIS Movement: 6500 mm
Y-AXIS Movement: 2000 mm
Z-AXIS Movement: 1200 mm
B-AXIS Movement: 360º MM
C-AXIS Movement: 360º MM

Workpiece

Workpiece x: 7000 mm
Workpiece y: 1200 mm
Workpiece z: 2000 mm

Table

Outer length: 8000 mm
Outer width: 1100 mm
Number of tslots: 7
Distance between: 140 mm

Tools

Slots in storage: 40
Max weight: 20 kg
Max tool diameter: 250-125 mm
Max tool length: 400 mm
Type of tool holder: BT50

Media

Main electronic connection: 380 V
Power consumption: 63 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- Indexed head
- Tank with magnetic separator and paper filter

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
