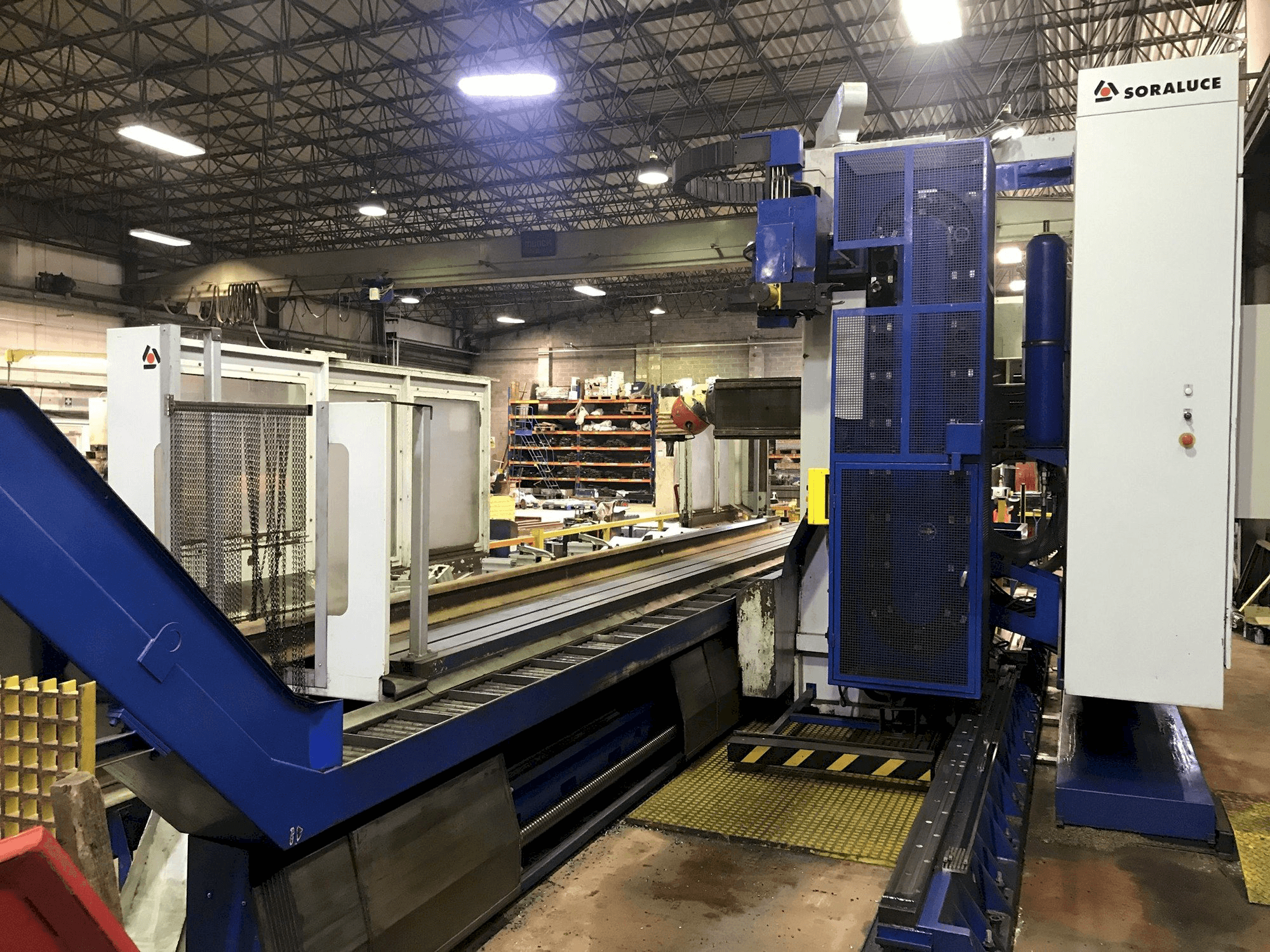

Soraluce SLP 8000 Milling Machine

Show in original language

This Soraluce SLP 8000 Milling Machine was built in Spain in 2001. It is operated with a Heidenhain TNC 426 control unit. This machine counts with an automatic universal milling head and a fixed table of a working surface of 8000 x 1100 mm. This machine presents perfectly good conditions, as it was completely reconditioned in 2020.

Overview

brand: Soraluce
year: 2001
MODEL: SLP 8000
application type: Milling
Location: United Kingdom
machine type: Gantry Milling Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Soraluce SLP 8000

Control Unit

Model: TNC 426
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 3000 1/MIN
Spindle motor power: 28 kW

Movement

X-AXIS Movement: 6500 mm
X-AXIS Working Feed: 5 -5000 mm/min
X-AXIS Rapid traverse: 15 m/min
Y-AXIS Movement: 1600 mm
Y-AXIS Working Feed: 5 -5000 mm/min
Y-AXIS Rapid traverse: 15 m/min
Z-AXIS Movement: 1000 mm
Z-AXIS Working Feed: 5 -5000 mm/min
Z-AXIS Rapid traverse: 15 m/min

Table

Outer length: 500 mm
Outer width: 500 mm

Tools

Slots in storage: 40
Type of tool holder: ISO 50

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Automatic universal milling head - 2. 5°x 2. 5°
- - Fixed table working surface 8000 x 1100 mm
- - X / y / z linear scales
- - Head preparation for through tool coolant
- - Heidenhain hr-410 electronic remote handwheel
- - Preparation for rotary table
- - Thermal compensation
Qualitative Machine Benefits:
- - Very good condition
- - Reconditioned in 2020

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
