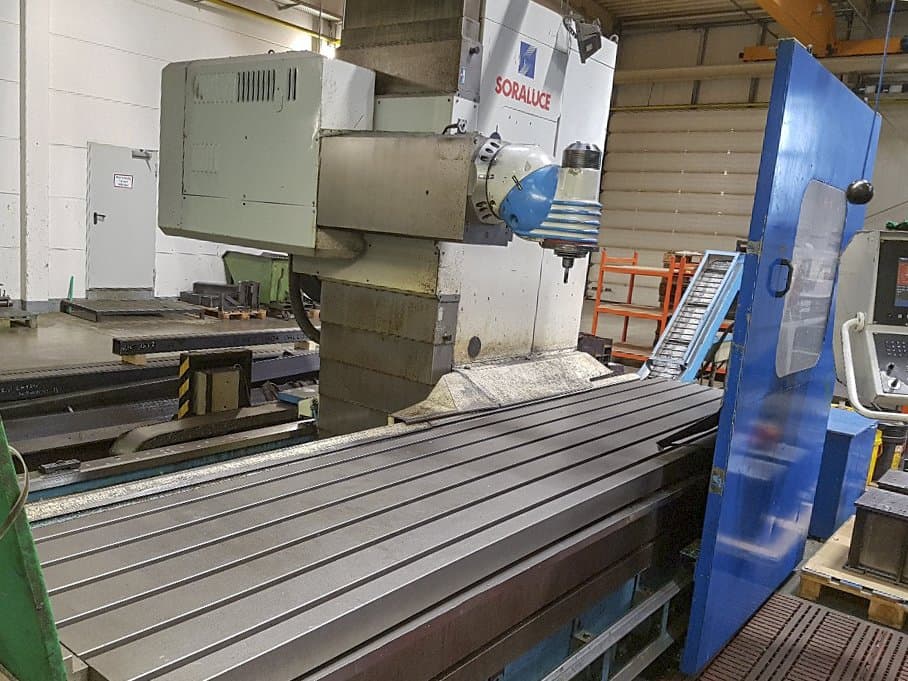

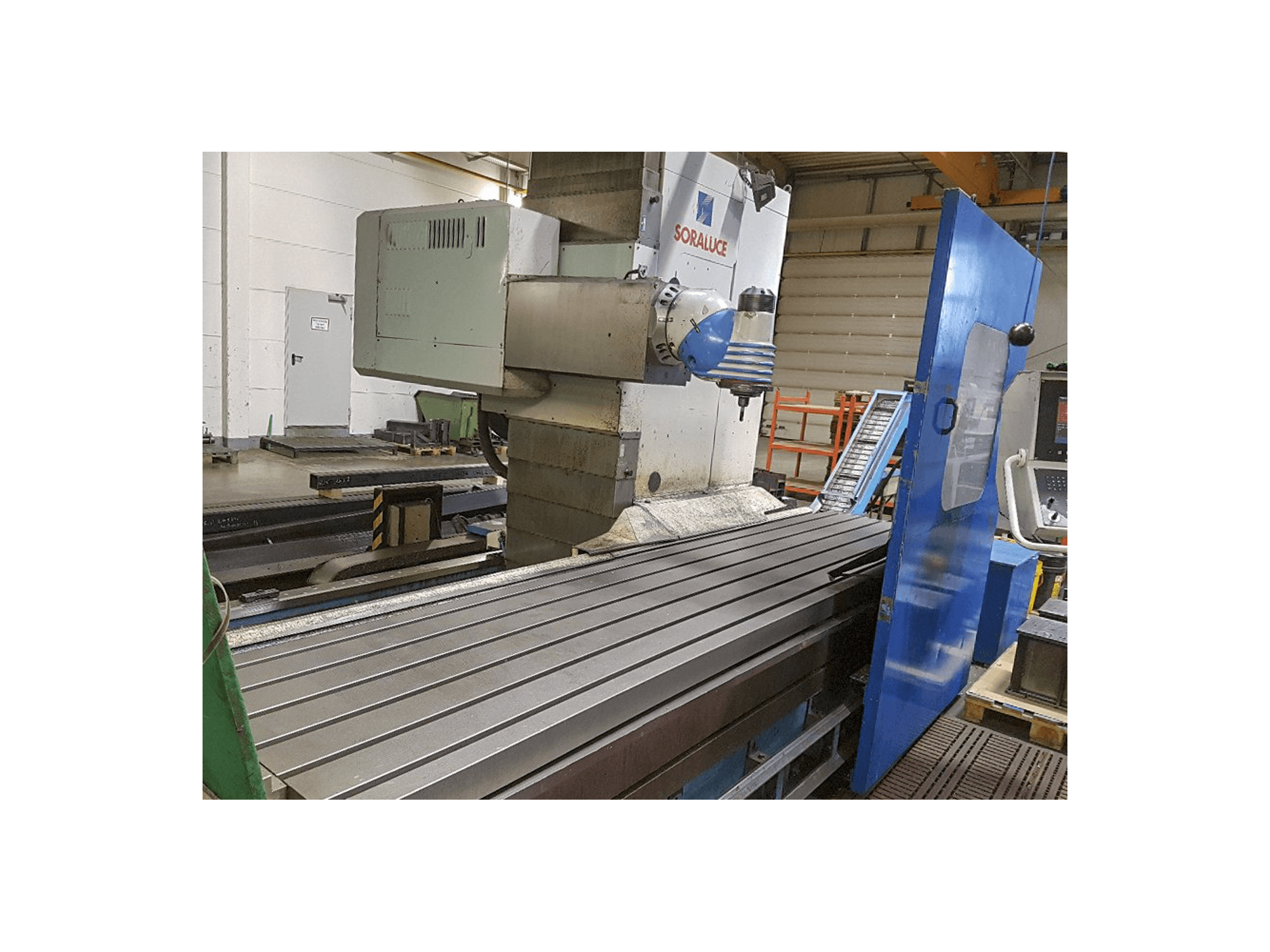

Soraluce SL-4000 Milling Machine

Show in original language

This Soraluce SL-4000 Milling Machine was manufactured in 1994 in Spain and has been operative for 14332 production hours since then. This machine is operated through a Heidenhain TNC 415 Control unit and has mainly worked with steel and aluminium during the past, producing plumbing pipes for the construction industry. This model stands out due to its silent operation and stands in very good condition. As additional equipment, a SK 50 tool holder is included.

Overview

brand: Soraluce
year: 1994
MODEL: SL-4000
production hours: 14332
application type: Milling
Location: Netherlands
machine type: Gantry Milling Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Soraluce SL-4000

General Data

Measurements width: 4200 mm
Measurements depth: 2810 mm
Measurements height: 3250 mm
Machine weight: 21500 kg

Control Unit

Model: TNC 415
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 3000 1/min

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1050 mm
Z-AXIS Movement: 900 mm

Workpiece

Workpiece drm: 500 mm
Workpiece x: 3500 mm
Workpiece y: 1500 mm
Workpiece z: 900 mm
Workpiece weight: 2500 kg/m2

Table

Outer length: 4000 mm
Outer width: 1000 mm

Tools

Max weight: 7 kg
Max tool diameter: 110 mm
Max tool length: 350 mm

Media

Main electronic connection: 380 V
Power consumption: 34.2 kVA
Chip conveyor: Yes

Additional equipment

- SK 50 Tool holder

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
