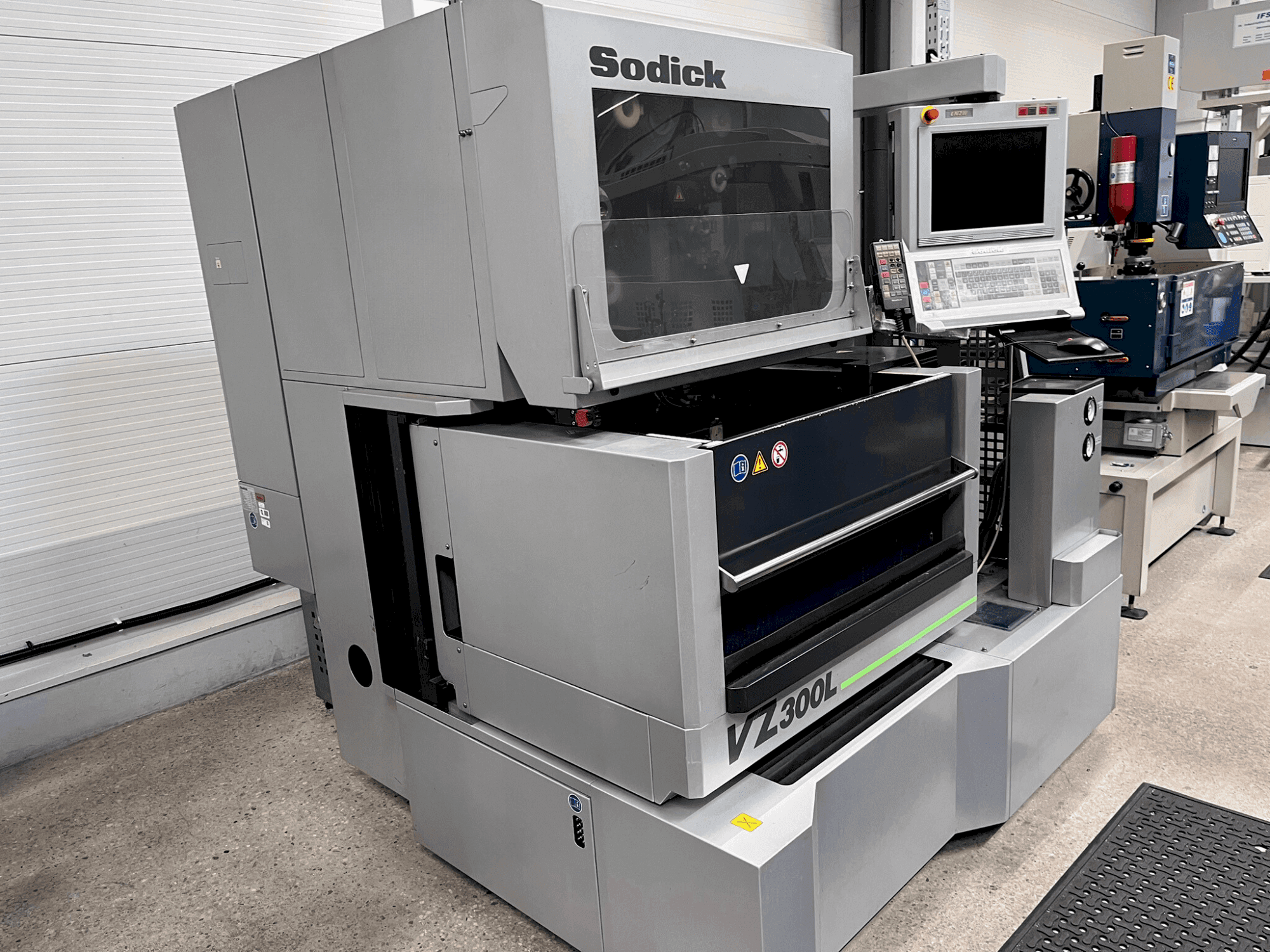

Sodick - VZ 300LHU-EDM-SOD-2010-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Work tank inner size (w x d) 810 x 650 mm
  • - Max. Size of workpiece(w x d xh) -submerge 780 x 570 x 200 mm
  • - Max. Size of workpiece (w x d xh) - flushing 780 x 570 x 215 mm
  • - Max. Weight of workpiece - submerge 350 kg
  • - Max. Weight of workpiece - flushing 500 kg
  • - Auxiliary table travel (u x v axis) 80 x 80 mm
  • - Wire diameter Ø0. 15-Ø0. 3 mm
  • - Taper angle / thickness ±15° / 120 mm
  • - Dielectric fluid capacity 550 liters
  • - Power consumption (3 ph. 50/60 hz) 11 kva // max. Machining current 32a
• Qualitative Machine Benefits:
  • - Linear motors (x, y, u, v axis) // linear glass scales (x, y, u, v axis)
  • - Heart nc–automatic programming system // high speed electrolysis free circuit
  • - Corner control // tension servo
  • - Energy saving circuit // ftii (fine pick-up function)
  • - Dielectric cooling unit (chiller) // z -axis automatic water level control
  • - Super jet awt (annealing type) // wire tip disposal unit
  • - Remote controller & mouse // ups // step-down transformer
  • - Lan +usb // 15" tft lcd touch screen
  • - Front door up-down slide tank // slide plate cleaning function
  • - Low pressure flushing

Extra information

• - The ideal entry-level machine from Sodick incorporates all of the company's key features, including linear motor drives paired with linear scales. This drive method ensures sustained high-speed and rapid response, while preserving initial positioning accuracy over the long term. Users can expect consistently reliable machining performance. The VZ series boasts versatility and comes equipped with a range of standard functions, including Heart-NC onboard programming, advanced corner control, automatic float control, and a new power supply featuring advanced active control discharge technology, among others. Furthermore, Sodick utilizes its in-house superior ceramics as the standard material for precision machining applications.
