Sodick - AG60LHU-EDM-SOD-2016-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

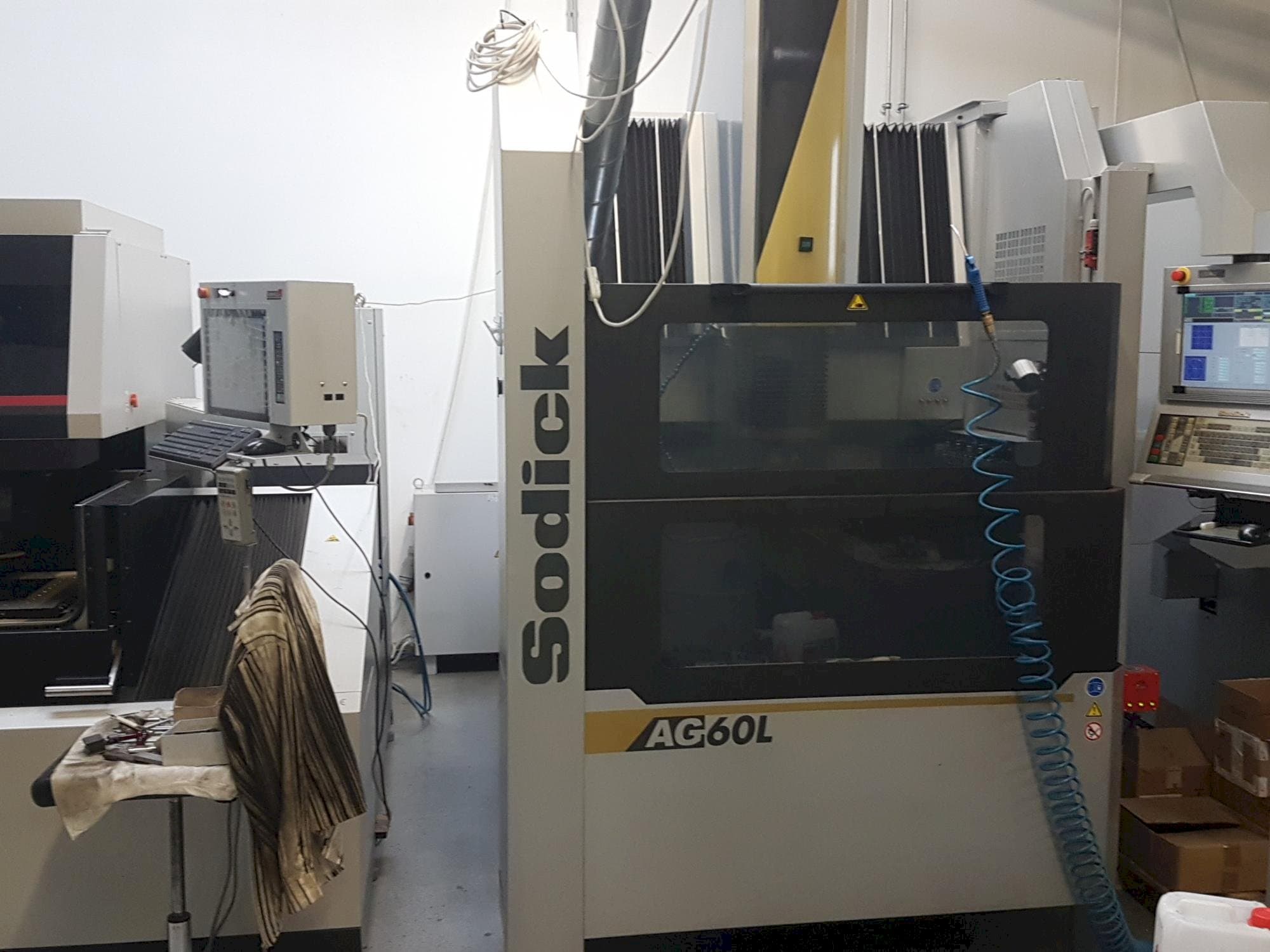

This Sodick AG60L Erosion Machine was built in the year 2016. It has been productive for approximately 5720 working hours. This machine works with a dielectric travel 150 - 400 mm. It is operated through a control unit of the same brand.

Overview

brand: Sodick
year: 2016
MODEL: AG60L
production hours: 5720
application type: EDM
Location: Hungary
machine type: Wire EDM Machine
availability: Sold
control unit brand: SODICK

Technical Information - Sodick AG60L

General Data

Measurements width: 1852 mm
Measurements depth: 2825 mm
Measurements height: 2570 mm
Machine weight: 5350 Kg

Control Unit

Interface: LAN
Brand: SODICK

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 420 mm
Z-AXIS Movement: 370 mm

Workpiece

Workpiece weight: 1500 Kg

Table

Outer length: 750 mm
Outer width: 550 mm
Distance between: 850 mm

Media

Air pressure: 0.65 MPa
Dielectic tank: 465 l.

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Worktank 950 x 740 x 450 mm
- - Dielectric travel 150-400 mm
- - Max electrode weight 50 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
