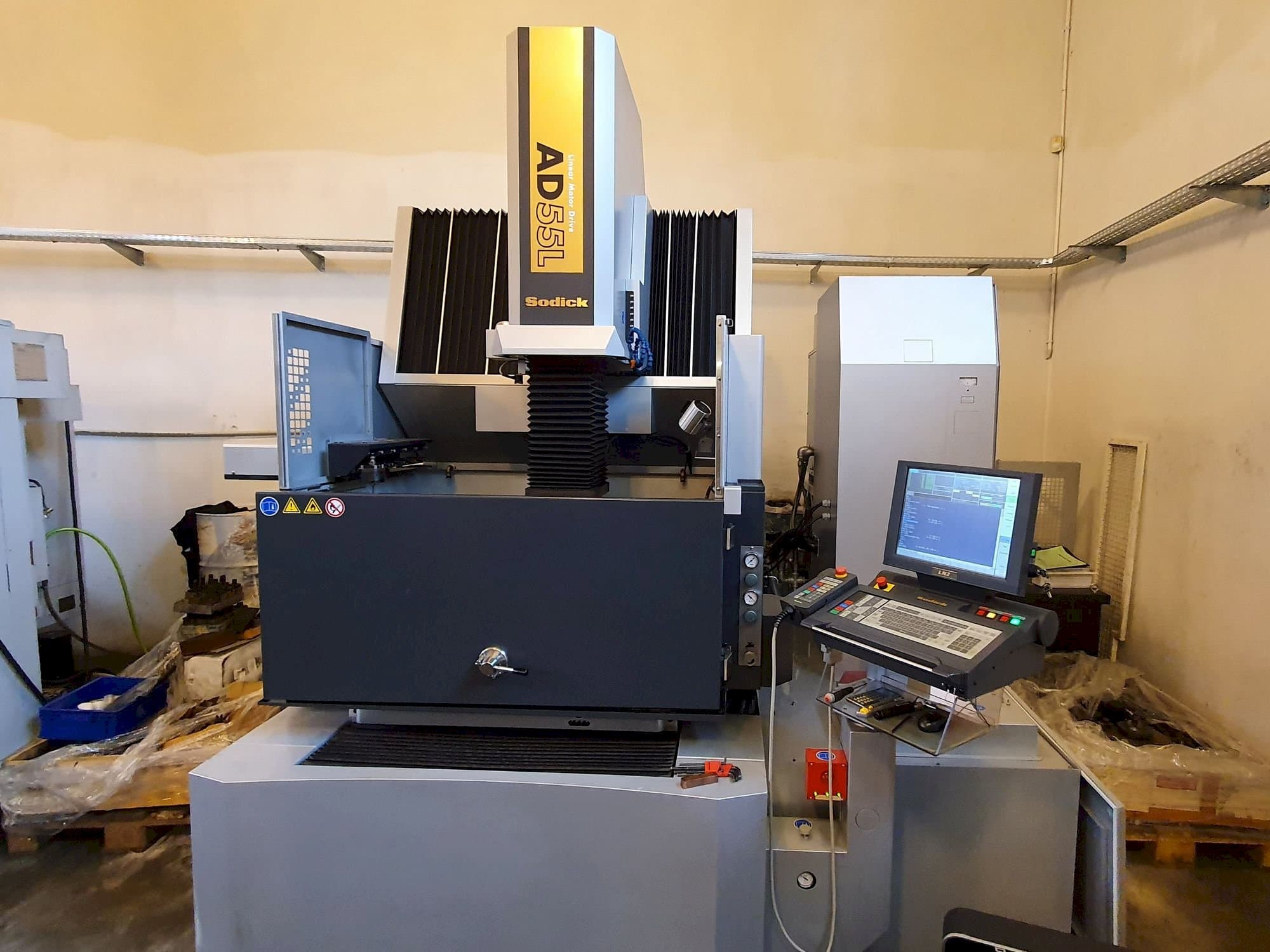

This Sodick AD55L Erosion Machines was manufactured in 2016 in Thailand. It has been working for only 11314 hours, of which 1617 are cutting hours. It presents excellent conditions, as it hasn't been used much.

Overview

brand: Sodick
year: 2016
MODEL: AD55L
production hours: 1617
application type: EDM
Location: Poland
machine type: Die-Sinking EDM Machine
availability: Sold

Technical Information - Sodick AD55L

General Data

Measurements width: 2335 mm
Measurements depth: 2325 mm
Measurements height: 2720 mm
Machine weight: 4600 kg + tank 1200 kg

Controller

Brand: Sodick Motion

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 400 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Power supply: 200v / 3 ph. - 50/60 hz - 10 kva
- - Distance from floor to table top: 900 mm
- - 15" tft touch screen display
- - Shuttle atc (6-station)
- - The capacity of the working tank: - 470 l
- - Fluid level (min - max): 170 - 450mm
- - Maximum workpiece weight: 1000 kg
- - Working tank size: 1200 x 800 x 500 mm
- - Working table size: 750 x 550 mm
- - Step resolution (mm): 0. 0001
Qualitative Machine Benefits:
- - Linear motors (x, y, z axis)
- - Linear scales (x, y, z axis)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
