SIGMA MISSION 3 Vertical Machining Center

Show in original language

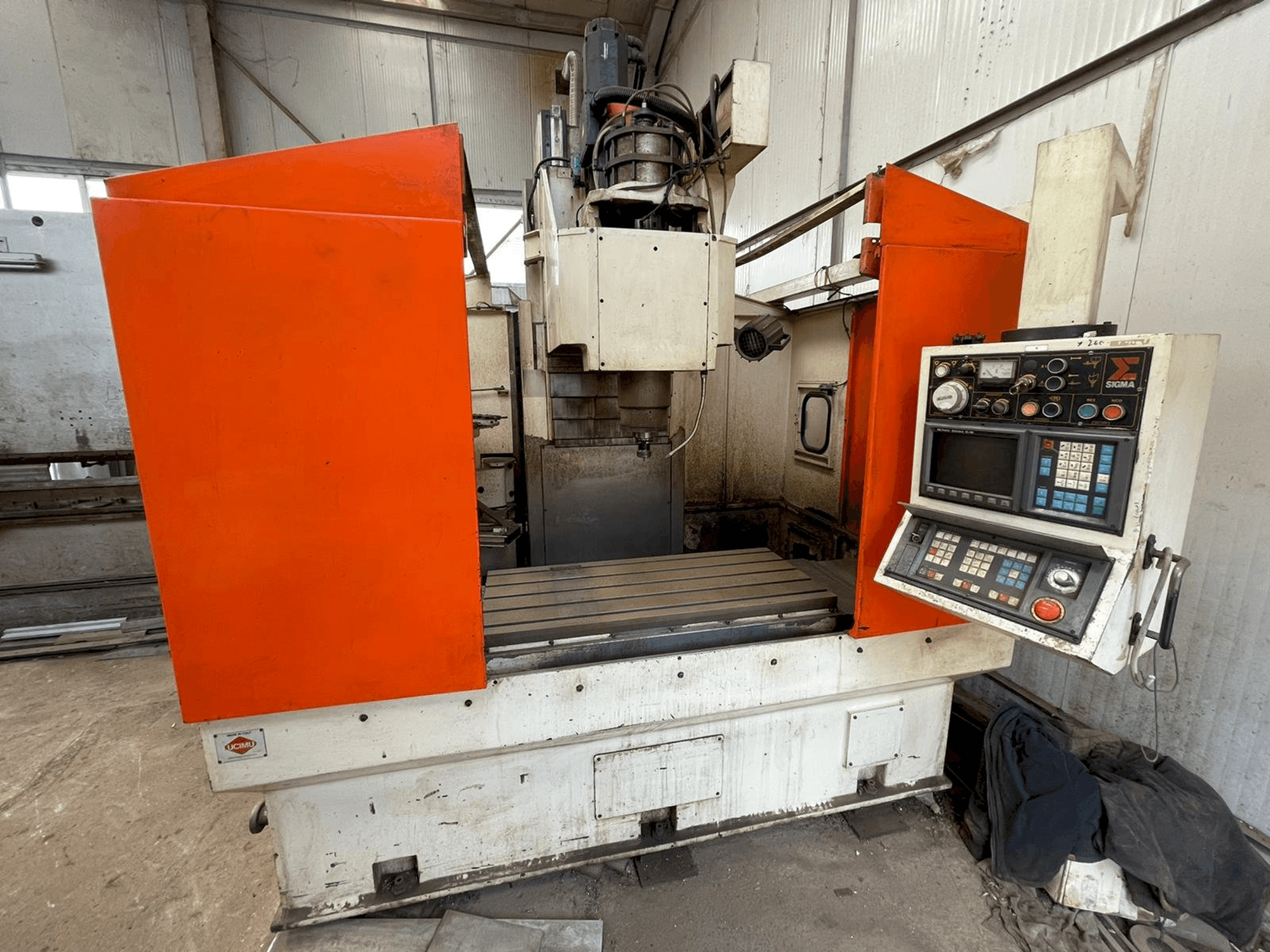

This SIGMA MISSION 3 Vertical Machining Center was built in the year 1995. This 3 axis machine operates through a FANUC 0-M control unit. It works with a spindle speed up to 8000 rpm and a table load of max 1000 Kg.

Overview

brand: Sigma
year: 1995
MODEL: MISSION 3
application type: Milling
Location: Romania
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Sigma MISSION 3

General Data

Measurements width: 2600 mm
Measurements depth: 3485 mm
Measurements height: 3080 mm
Machine weight: 7500 Kg

Control Unit

Model: 0-M
Brand: FANUC

Main drive

Spindle speed range: 8000 rpm 1/MIN
Spindle motor power: 11-15 kW
Number of axis: 3

Movement

X-AXIS Movement: 1030 mm
Y-AXIS Movement: 610 mm
Z-AXIS Movement: 550 mm

Table

Table load: 1000 Kg

Tools

Number of index: 21 POS

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle 191 nm; iso 40 - din
- - Tool magazine: basket-type

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
