SCM - ACCORD 50 FX-MCZ-MIL-SCM-2019-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

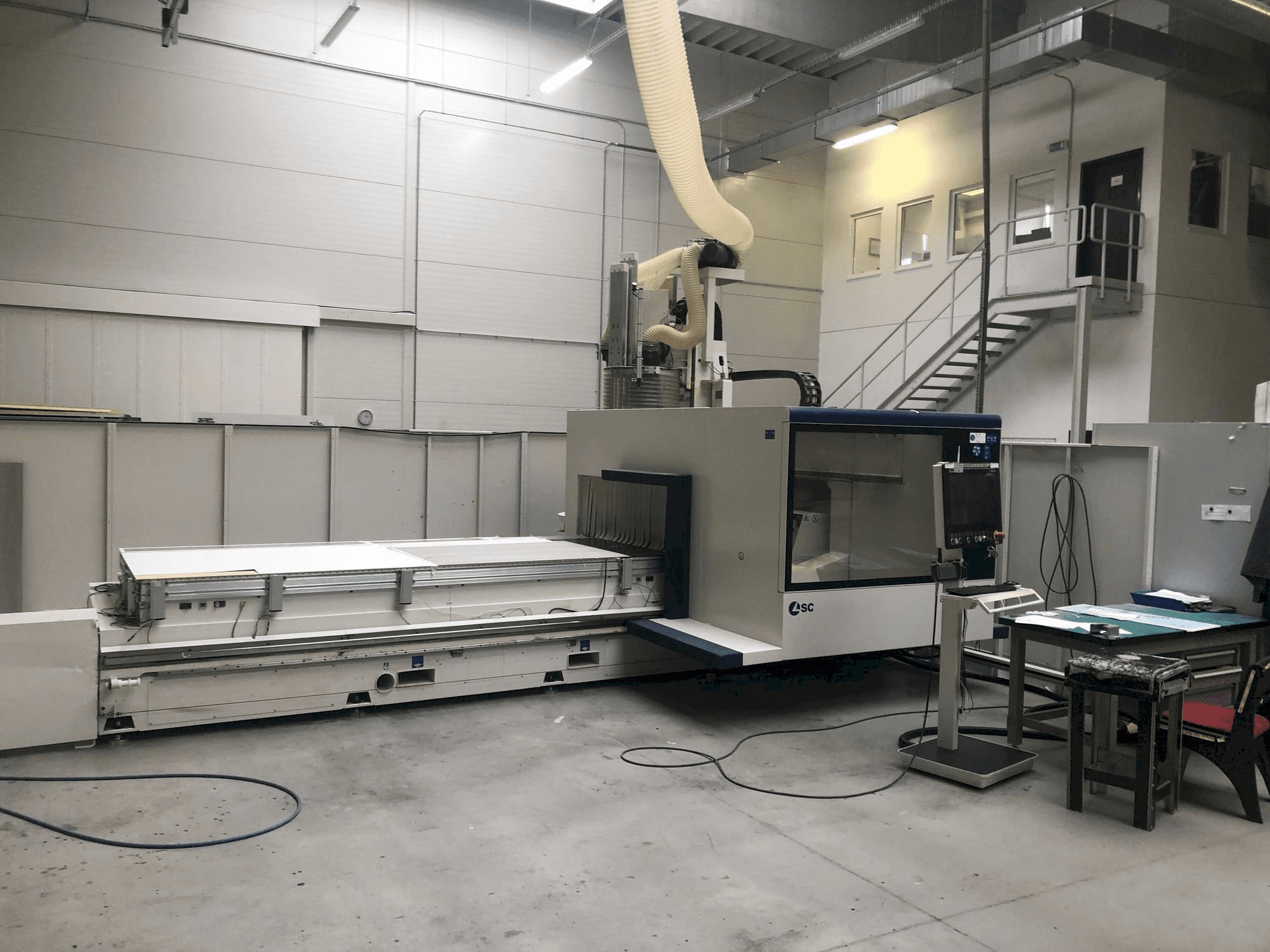

SCM ACCORD 50 FX-M Vertical Machine Center

Show in original language

This SCM ACCORD 50 FX-M Vertical Machine Center was made in the year 2019. It is equipped with a Maestro control unit and has 5 axis. The machine has a spindle speed of 24000 rpm and is in very good condition.

Overview

brand: SCM
year: 2019
MODEL: ACCORD 50 FX-M
application type: Milling
Location: Czech Republic
machine type: Gantry Milling Machine
availability: Sold

Technical Information - SCM ACCORD 50 FX-M

Control Unit

Model: Maestro

Main drive

Number of spindles: 1
Spindle speed range: 24000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 3680 mm
Y-AXIS Movement: 1680 mm

Workpiece

Workpiece z: 500 mm

Tools

Slots in storage: 24
Max weight: 8 kg
Max tool diameter: 350 mm
Type of tool holder: HSK 63F

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Z axis work-piece passage (max. ) 500 mm
- - Prisma q 5 axes milling head
- - Rapid feedrate (x/y/z) 90/80/30 m/min.
- - Spindle motor power (s1/s6) 15/17 kw
- - Probing system
- - Side tool magazine tr12 - 12 positions
- - 5 controlled axes
Qualitative Machine Benefits:
- - Very good condition
- - For machining solid wood, plastics and light metal alloys

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
