➤ Used SCHMID SE 368 For Sale | gindumac.com

Show in original language

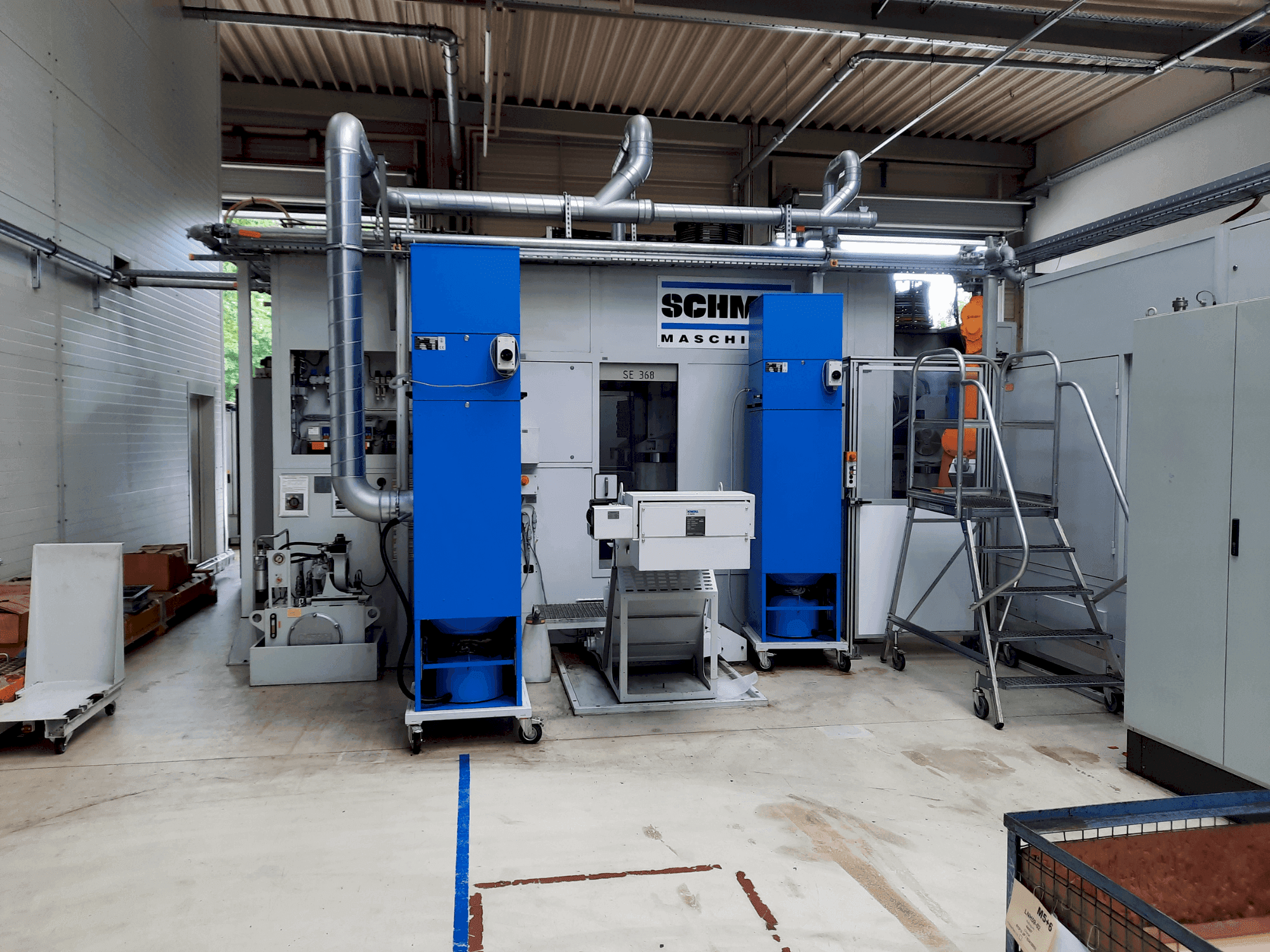

This 5-axis SCHMID SE 368 horizontal machining centre was manufactured in 2019. It features a Siemens Sinumerik 840 D SL control, rapid traverse rates of 75/40/90 m/min in X/Y/Z, and a shuttle table. Equipped with dual NC rotary swivelling units, a 30-fold tool changer, and HSK-A63 tool holder. Max speed is 10,000 rpm. Includes a chip conveyor and recooling system. A great opportunity to buy this SCHMID SE 368 horizontal machining centre. Contact us for further details regarding this horizontal machining centre.

Overview

brand: SCHMID
year: 2019
MODEL: SE 368
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - SCHMID SE 368

General Data

Machine weight: 21000 kg

Control Unit

Model: Sinumerik 840 D SL
Brand: SIEMENS

Main drive

Number of spindles: 2
Spindle speed range: 50 - 24000 rpm 1/MIN
Tool taper: HSK-A63

Movement

X-AXIS Movement: 400 mm
X-AXIS Rapid traverse: 75 m/min
Y-AXIS Movement: 450 mm
Y-AXIS Rapid traverse: 40 m/min
Z-AXIS Movement: 550 mm
Z-AXIS Rapid traverse: 90 m/min

Tools

Max tool diameter: 75 mm

Additional equipment

- Double spindle
- Shuttle table
- 2x 2 NC rotary swivelling units
- Switch cabinet system
- Chip conveyor Knoll 600K-1 2019
- Hydraulic unit
- Filter system
- Recooling system Lahntechnik KOF1803-100 2020
- Number of tool magazine positions: 2x 30
- Rotary table (NC / hydraulic clamping) : n x 360o, vertical axis,

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Ibag three-phase main drive : s1-100% 40 kw / s6-40% 52 kw
- - Key performance data working spindle kw s1 : 3 12 29 40 40
- - Spindle speeds approx. 1/min : 1,000 5,000 10,000 20,000 24,000
- - Torque approx. Nm : 27 27 27 19 17
- - Tool diameter with free neighbouring positions : 125 mm
- - Swivelling table (nc / hydraulic indexing) : vertical axis, 0° - 180°, max. Rotation angle in connection with 5th axis : +/- 150°
- - Rotary table diameter : 400 mm, rotary table (horizontal axes u1-u2/ v1-v2), rotary table (nc / hydraulic clamping) : n x 360o, vertical axis, rotary table diameter : 330 mm
- - Pallet clamping : 2 zero point clamping modules/ table
- - Position measuring systems : absolute position measuring systems
- - Position tolerance x - y - z : 0. 008 mm (vdi/dgq 3441)

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
