➤ Used SCHÜCO DC 500 For Sale | gindumac.com

Show in original language

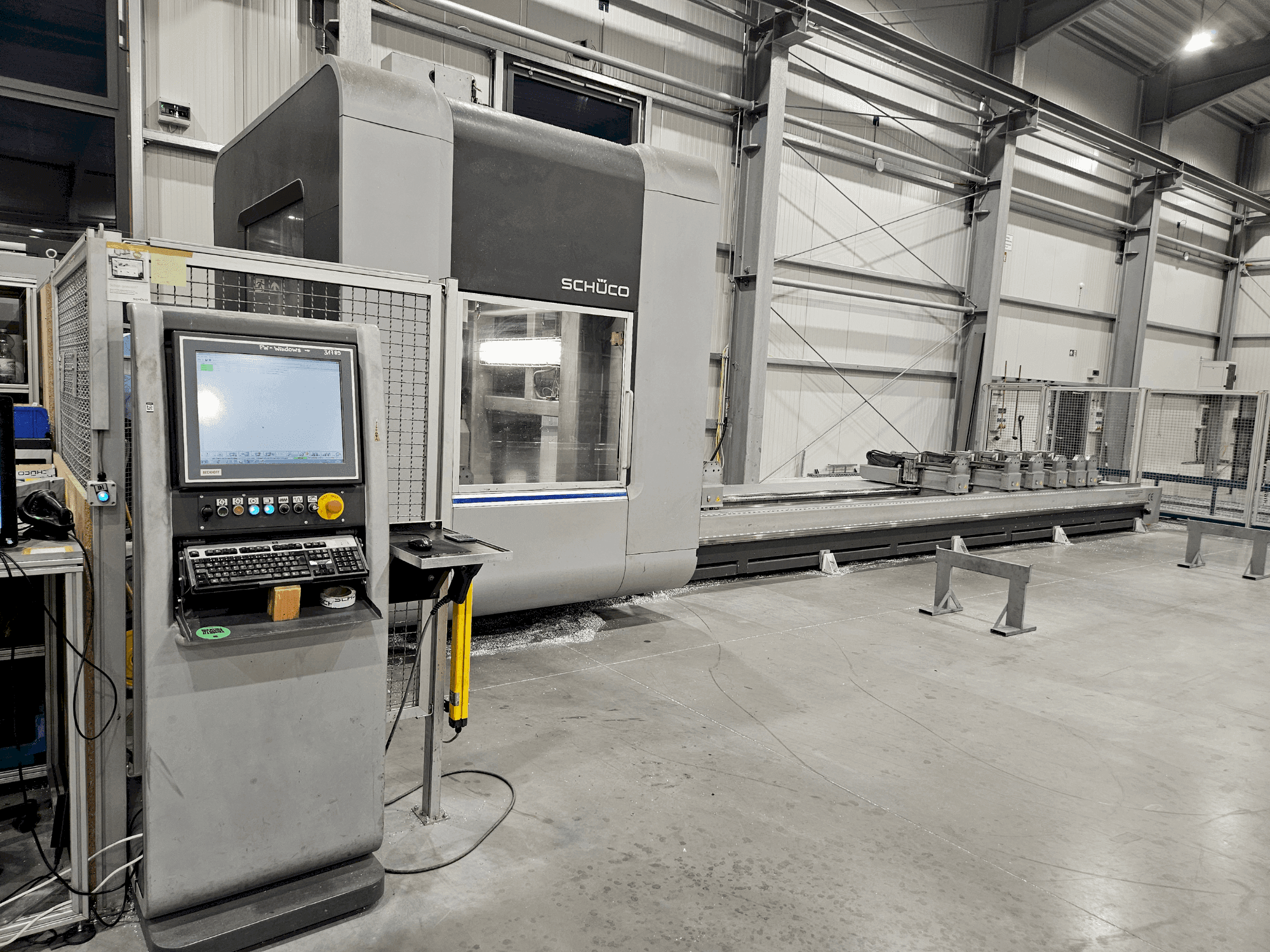

This 5-axis vertical machining centre manufactured in 2009 offers robust capabilities for 5-sided machining of aluminum and steel profiles. It features a maximum profile machining length of 7,500 mm, a tool holder HSK-F63 for high precision, and a frequency-controlled milling motor with a power output of 16 kW. The machine includes an automatic tool change system and a minimal quantity coolant-lubrication system. If you are looking to get high-quality milling capabilities, consider the SCHÜCO DC 500 machine we have for sale. Contact us for more information.

Overview

brand: SCHÜCO
year: 2009
MODEL: DC 500
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold

Technical Information - SCHÜCO DC 500

General Data

Measurements width: 5500 mm
Measurements depth: 15000 mm
Measurements height: 4000 mm
Machine weight: 12000 kg

Main drive

Spindle speed range: 24000 rpm 1/MIN
Spindle motor power: 16 kW
Number of axis: 5

Movement

X-AXIS Rapid traverse: 60 m/min
Y-AXIS Rapid traverse: 60 m/min
Z-AXIS Rapid traverse: 30 m/min

Tools

Type of tool holder: HSK-F63

Additional equipment

- Profile Length and Height Measurement: Devices for measuring profile dimensions with automatic correction
- Coolant Lubrication System: Minimal quantity system with electronic monitoring
- Central Lubrication: Automatic system controlled by CNC

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Control panel: 19" touch tft color display with keyboard and mouse
- - Additional handheld device: yes
- - Network card: for internal network connection
- - Modem and remote maintenance software: enables remote diagnostics
- - Max. Profile machining length: 7500 mm
- - Profile cross-section: max (w x h) 400 x 300 mm; min (w x h) 30 x 30 mm // nprofile clamping device: 8 standard clamping blocks, expandable to 14
- - Automatic tool change system: pick-up magazine for 16 tools, 2 special slots for saw blades
- - Processing capabilities: 5-sided machining of aluminum and steel profiles
- - Safety: ce-compliant work area safety features
- - This summary provides essential details on the machine's capabilities, dimensions, and functionalities for potential users.

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
