SAMAG TFZ 2L-1000 Drilling machine

Show in original language

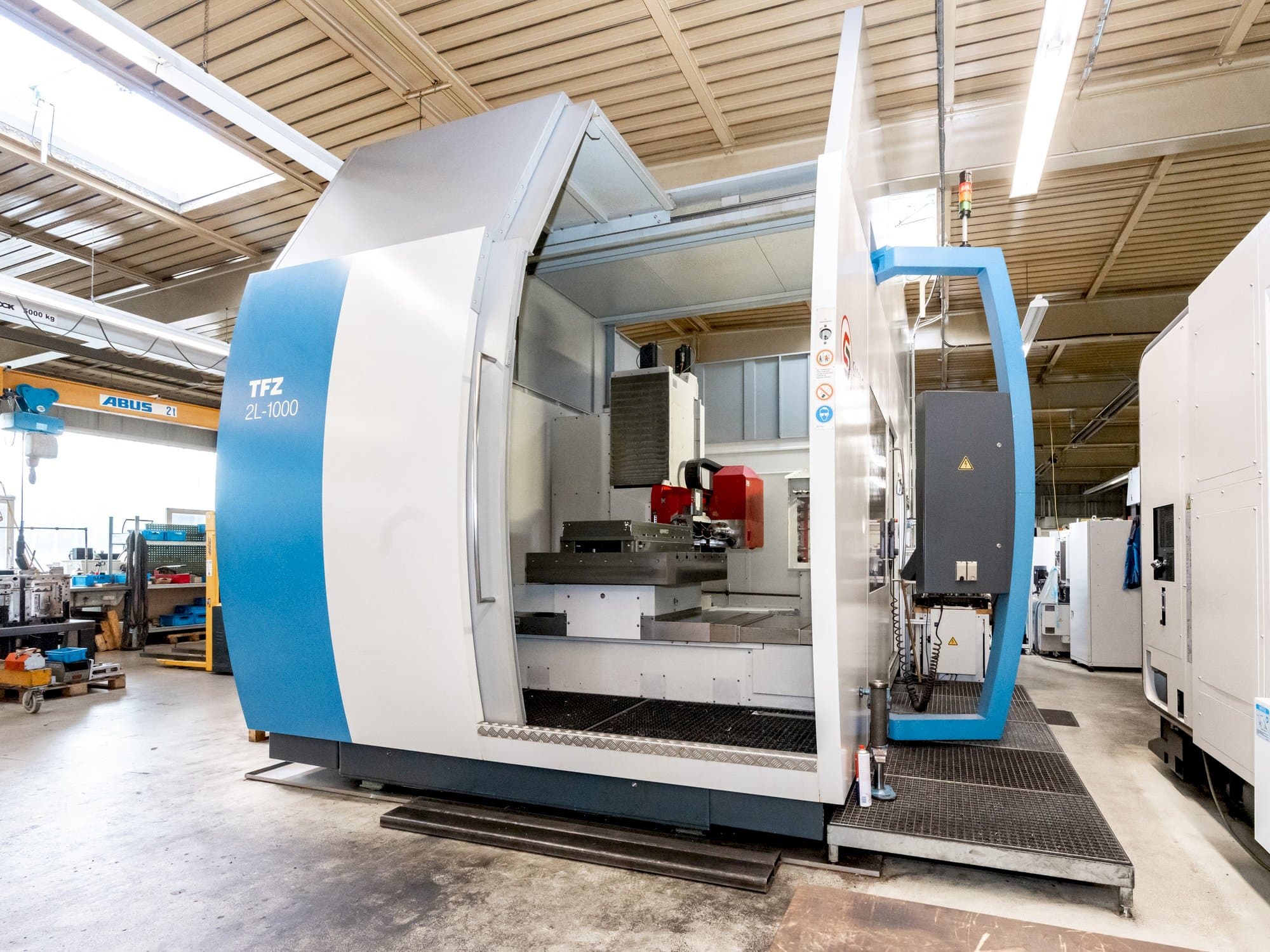

This SAMAG TFZ 2L-1000 Drilling machine was made in 2015 in Germany and has 13585 production hours. It is equipped with a HEIDENHAIN control unit. It has a NC rotary table B-axis with 1100x1100mm (7t) and an a-axis as drilling and milling unit with swivel range -30/+15°. The machine has a reinforced main spindle drive with spindle speed 6000 rpm. As additional equipment it comes with tool changer for ISO 40, low-maintenance oil mist extraction system, traveling support steady rests for drilling diameters up to 25.5mm, drip tray with step grate for X-axis 1600mm and rinsing gun.

Overview

brand: SAMAG
year: 2015
MODEL: TFZ 2L-1000
production hours: 13585
application type: Other Machine Tools
Location: Germany
machine type: Drilling Machine (Metal)
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - SAMAG TFZ 2L-1000

General Data

Measurements width: 6300 MM
Measurements depth: 7400 MM
Measurements height: 4050 MM
Machine weight: 30000 kg (with cabinet)

Control Unit

Brand: HEIDENHAIN

Main drive

Spindle speed range: 6000 1/MIN
Tool taper: ISO 40

Movement

X-AXIS Movement: 1600 mm
Y-AXIS Movement: 1050 mm
Z-AXIS Movement: 1100 mm

Tools

Max weight: 5 kg
Max tool length: 250 mm

Additional equipment

- tool changer for ISO 40
- low-maintenance oil mist extraction system
- rinsing gun
- drip tray with step grate for X-axis 1600mm
- traveling support steady rests for drilling diameters up to 25.5mm
- Various drills (single-lip drills and indexable insert drills): Drill grinding machine / CAM software licence: GIBcam-DRILL software. (A fee could be charged for the transfer of the licence, this has to be clarified with GIBCAM. the buyer is responsible for the transfer.).
- Optional for extra charge: Magnetic clamping plate with its own control cabinet (SAV brand, www.sav.de, dimensions 1200x600mm).

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Travel x-axis 1600mm
- - Nc rotary table b-axis 1100x1100mm, 7t
- - A-axis; drilling and milling unit; swivel range -30/+15°
- - Max. Tool length 250mm
- - Max. Tool weight 5kg
- - Calibration ball diameter 25mm
Qualitative Machine Benefits:
- - Reinforced main spindle drive

Extra information

- Scope of delivery: Machine and measuring probe. WxDxH with electrical cabinet approx. 6300x7400x4050mm // weight with electric cabinet 30.000kg.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

SAMAG Auftragsbestätigung - zusätzliche Ausstattungen.pdf
