SACHMAN RP3CC Milling machine

Show in original language

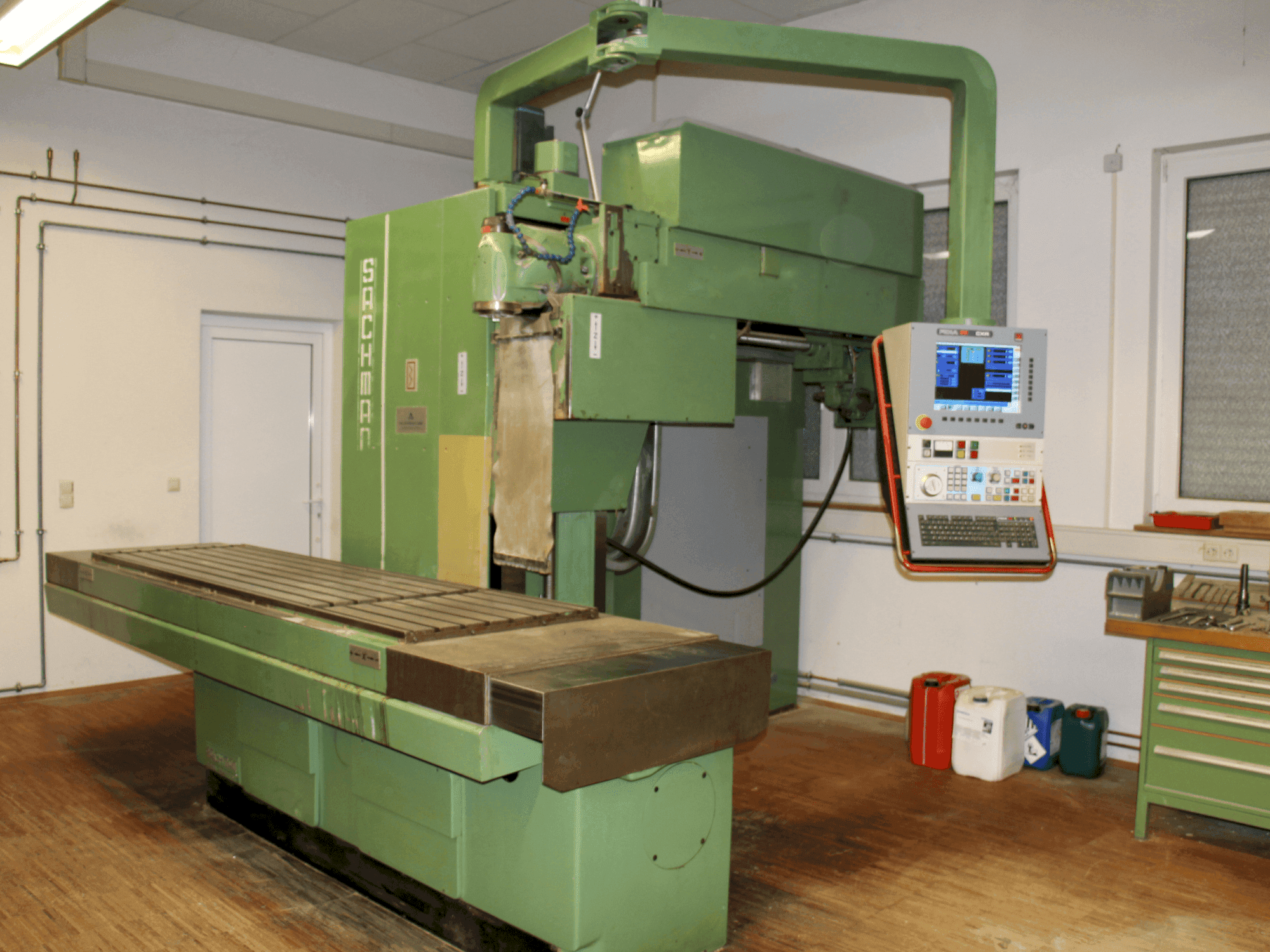

This SACHMAN RP3CC Milling machine was manufactured in the year 1990 in Italy. It is equipped with a FIDIA freely programmable control unit. Extension arm for copy sensor and FIDIA copy sensor are no longer available. These have been dismantled.

Overview

brand: SACHMAN
year: 1990
MODEL: RP3CC
application type: Milling
Location: Germany
machine type: CNC Milling Machine
availability: Sold
control unit brand: FIDIA

Technical Information - SACHMAN RP3CC

General Data

Machine weight: 8500 kg

Control Unit

Brand: FIDIA

Main drive

Number of axis: 3

Movement

Z-AXIS Movement: 1000mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Freely programmable control
- - Dimensions 2000x730mm
- - Spindle speed infinitely variable
- - Spindle mount iso 50
- - Constant torque 10-90 l/min
- - Max. Width (x-direction) approx. 4700mm // max. Depth (y-direction) 3300mm // max. Height (z-direction) 2925mm
- - Longitudinal travel 1800mm
- - Travel of the cross slide y-axis 815mm
- - Z-axis travel 1000mm
- - Thermal expansion length compensation
Qualitative Machine Benefits:
- - Extension arm for copy sensor and fidia copy sensor are no longer available. These have been dismantled.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
