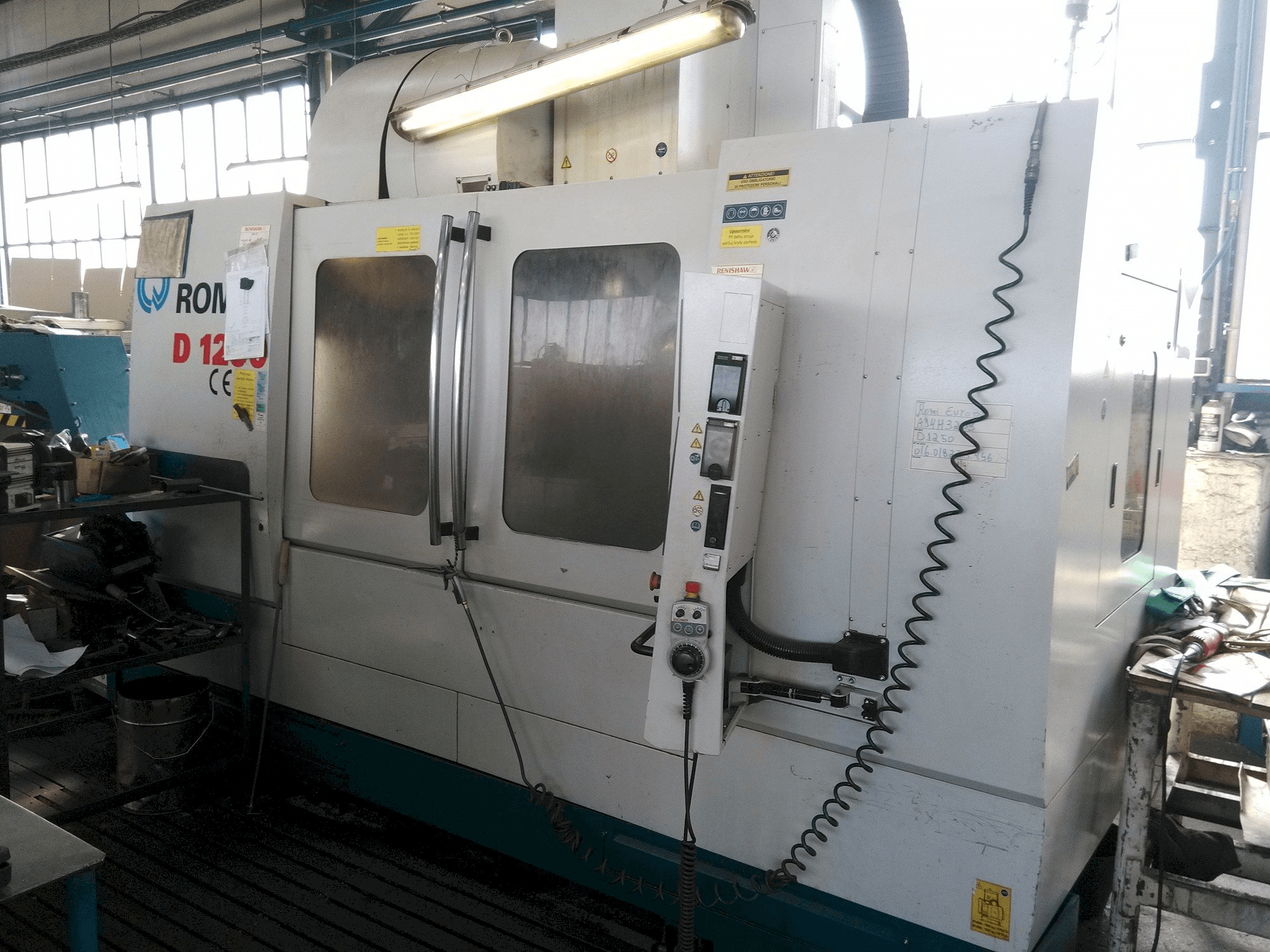

Romi D 1250 Vertical Machining Center

Show in original language

This Romi D 1250 Vertical Machining Center was manufactured in 2014 in Brazil and has a prouction record of 17500 hours, of which 1300 are spindle hours. Operated through a Fanuc 0i-MD Control unit, this machine incorporates a spindle speed up to 10000 rpm. During the past, this machine has mainly been working with steel.

Overview

brand: Romi
year: 2014
MODEL: D 1250
production hours: 17500
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Romi D 1250

General Data

Measurements width: 2467 mm
Measurements depth: 3350 mm
Measurements height: 2800 mm
Machine weight: 7600 kg

Control Unit

Model: 0i-MD
CNC language customizable: Yes
Brand: FANUC

Main drive

Spindle speed range: 10000 rpm 1/MIN

Movement

X-AXIS Movement: 1270 mm
Y-AXIS Movement: 610 mm
Z-AXIS Movement: 640 mm

Workpiece

Workpiece weight: 1400 kg

Table

Outer length: 1320 mm
Outer width: 560 mm

Tools

Slots in storage: 30
Max weight: 7 kg
Max tool diameter: 76 mm
Max tool length: 300 mm
Type of tool holder: ISO 40

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine history

Material type: Steel

Machine Benefits

Technical Machine Benefits:
- - Main motor power 25/18. 5 kw
Qualitative Machine Benefits:
- - Low spindle hours only 1300

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
