- ROBBI LYOR 30/40 Boring machine

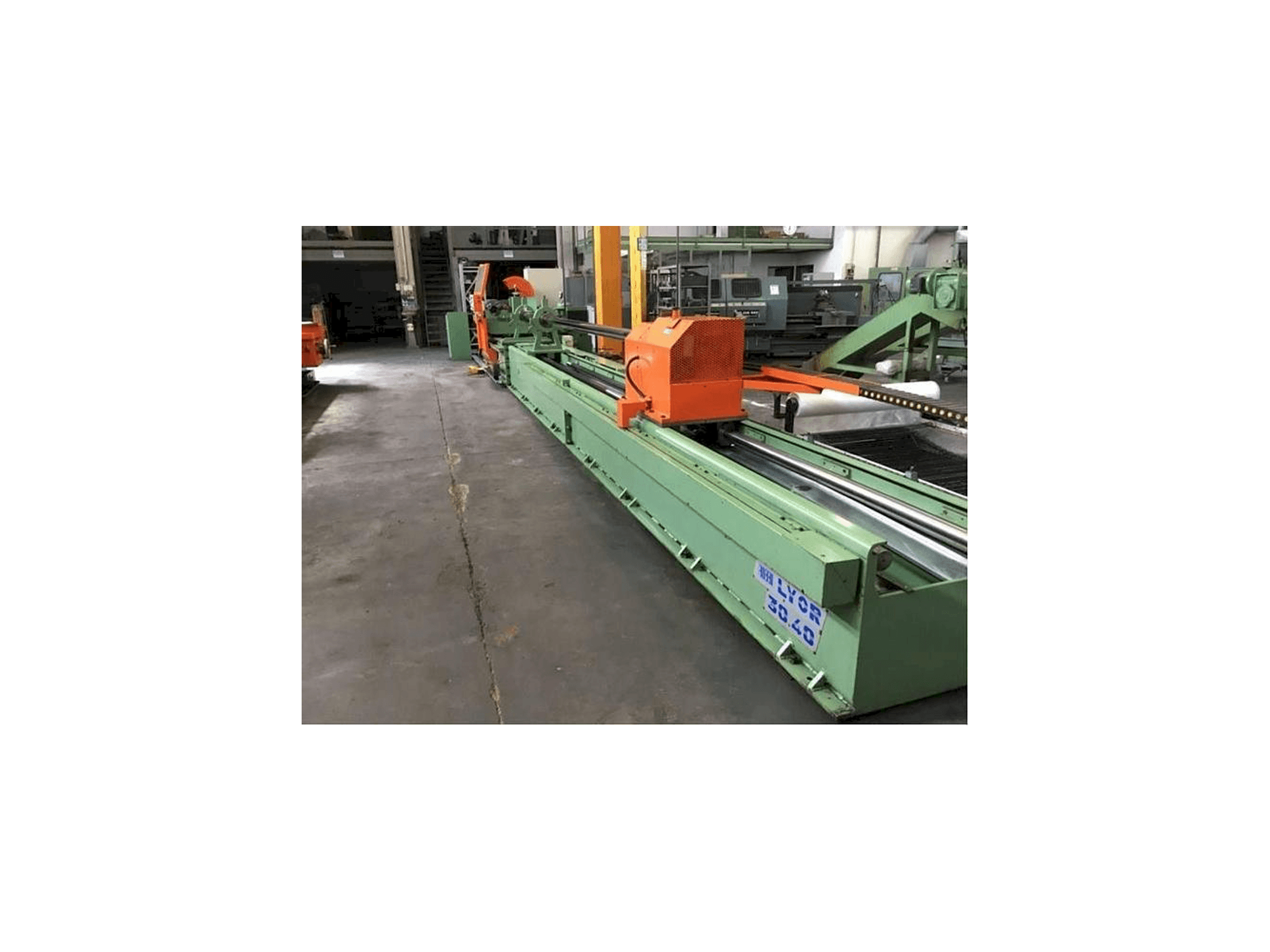

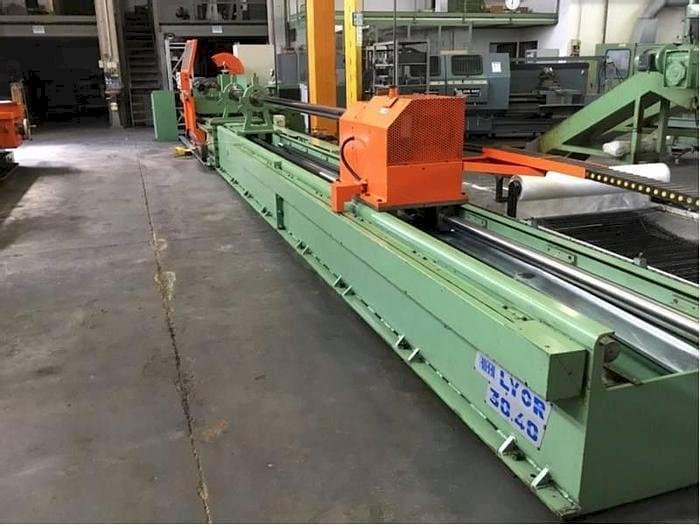

This ROBBI LYOR 30/40 Boring machine was manufactured in Italy in 2007. This machine operates with a rotation speed range of 10-150 rpm and a bore diameter of 50 - 250 mm. This is a horizontal tube honing machine.
Overview
- brand: ROBBI
- year: 2007
- MODEL: LYOR 30/40
- application type: Other Machine Tools
- Location: Italy
- machine type: Boring Machine (Metal)
- availability: Sold
Technical Information - ROBBI LYOR 30/40
General Data
- Measurements width: 1500 mm
- Measurements depth: 13000 mm
- Measurements height: 800 mm
Main drive
- Spindle speed range: 10 - 150 rpm 1/MIN
- Spindle motor power: 11 kW
Additional Information
- Technical Machine Benefits:
- - Bore diameter Ø 50 - 250 mm
- - Head stroke max. 5. 400 mm
- - Honing length max. 4. 000 mm
- - Height of the spindle axis to the ground 1. 050 mm
- - Self-centering diameter Ø 400 mm
- - Rotating diameter max. Ø 800 mm
- - Translation speed of the sander 0-35 m/min
- Qualitative Machine Benefits:
- - This is a horizontal tube honing machine.
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
