Reishauer - RZ 400DE-GRI-REI-2005-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Reishauer RZ 400 For Sale | gindumac.com

Show in original language

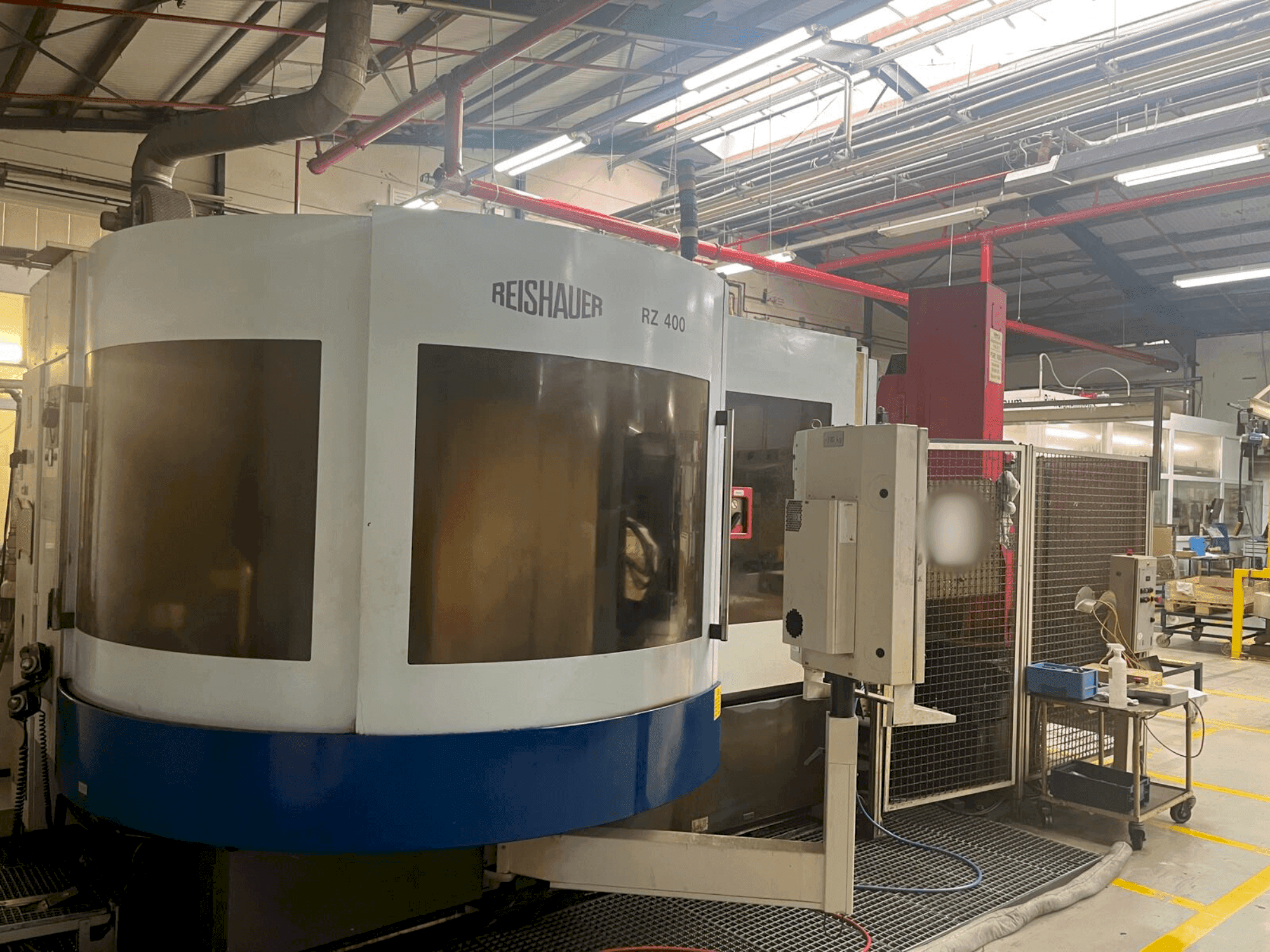

This Reishauer RZ 400 grinding machine was manufactured in 2005. It features a Siemens 840D control system, can handle wheel diameters up to 400 mm, and wheel widths up to 300 mm. With a maximum workpiece weight of 300 kg and spindle speeds up to 4,700 1/min, it's ideal for varied grinding tasks. Dimensions are 4.9 m x 3.7 m x 3.2 m, weighing 11.5 tons. For more information about this grinding machine, please reach out to us.

Overview

brand: Reishauer
year: 2005
MODEL: RZ 400
production hours: 25639
application type: Grinding
Location: Germany
machine type: Grinding Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - Reishauer RZ 400

General Data

Measurements width: 3700 MM
Measurements depth: 4900 MM
Measurements height: 3200 MM
Machine weight: 11500 KG

Control Unit

Model: 840D
Brand: SIEMENS

Main drive

Spindle speed range: 0 - 4700 1/MIN
Spindle motor power: 10 KW

Additional equipment

- Counter spindle for tailstock (W-axis)
- Workpiece spindle drive (C-axis) / Motorised grinding spindle (B1) / Spindle speed infinitely variable 1100-4700 min-1
- Cooling nozzle (P1 axis)
- Reinforced flushing device for flushing away the grinding sludge
- Grinding sludge feed (X-axis)
- Shift axis (Y1) / Feed (Z1f)
- Swivelling axis (A1) for automatic adjustment of the grinding worm / Swivelling axis (C1) for swivelling the tool carrier
- Hydraulic equipment: free-standing unit with 3-point support control / Tank capacity approx. 30 litres
- Centre 80’ MK3
- Nozzle 5’; width 40mm / Nozzle 5’; width 4e 70m

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Wheel diameter: 400 mm
- - Max wheel width: 300 mm
- - Module: 0. 2 - 8
- - Number of teeth: 5 - 999
- - Workpiece weight: 300 kg
- - Max helix angle: +- 45 degrees
- - Clamping length: 60 - 700 mm
- - Siemens 840 d with reishauer rolling module and plc s7
- - Balancing mandrel diameter 28mm
- - Probe for centring device for workpieces with d 250mm and more, module 1. 0 to 2. 0; module 2. 0 to. 0 and module 4. 0 and larger
Qualitative Machine Benefits:
- - Oil mist bonnet
- - Air conditioning unit
- - Grinding worm profiling device rp 160-2

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
