➤ Used RECKERMANN RBZ-1520 For Sale | gindumac.com

Show in original language

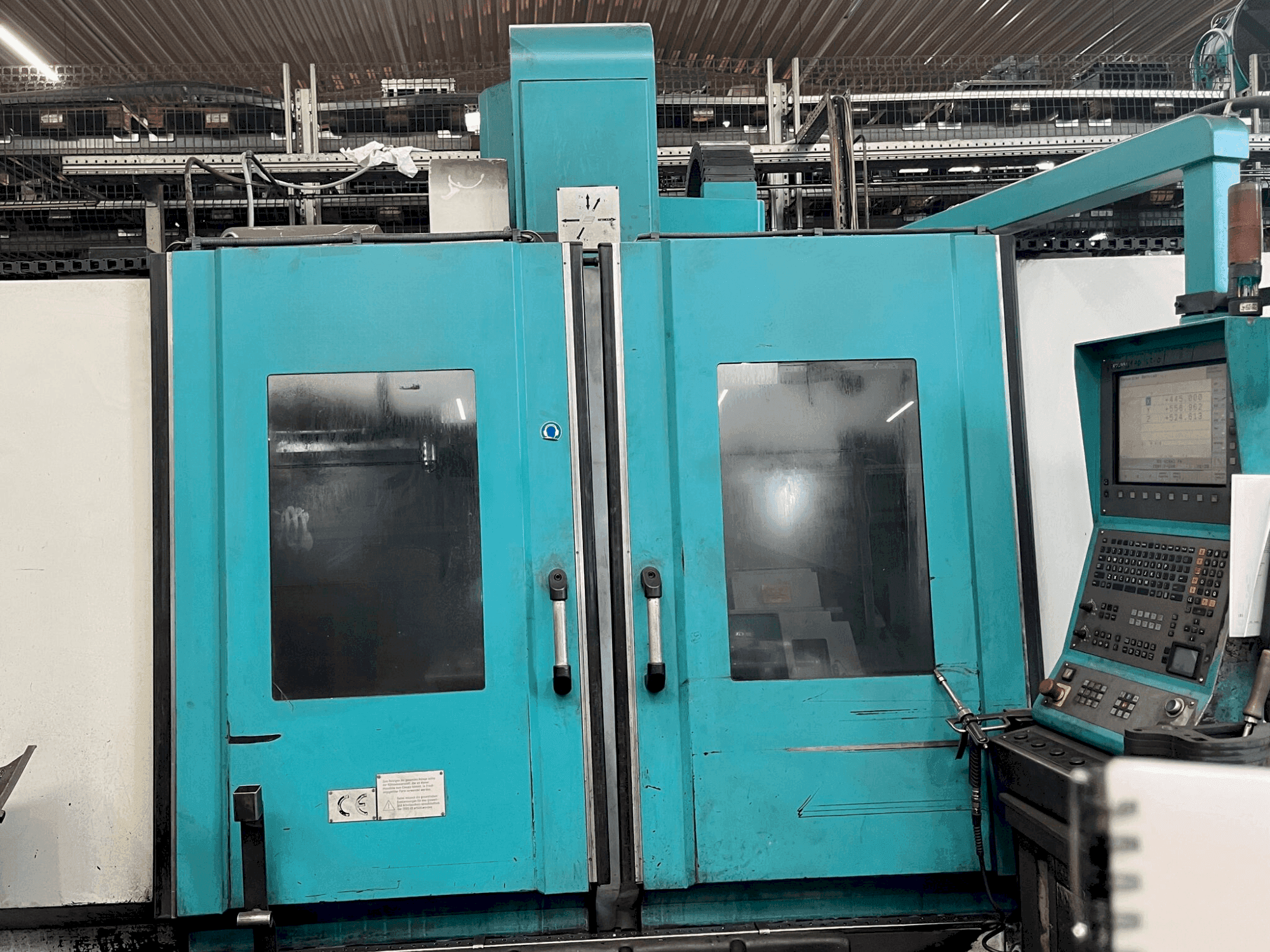

This 3-axis RECKERMANN RBZ-1520 was manufactured in 2008. A robust vertical machining center, it features a table size of 1700x860 mm, capable of handling a maximum workpiece weight of 1800 kg. It offers extensive travel on X, Y, and Z axes at 1520 mm, 760 mm, and 680 mm respectively. Rapid traverse rates are impressive at 16000 mm/min for X and Y, and 12000 mm/min for Z. Consider the opportunity to buy this RECKERMANN RBZ-1520 vertical machining center. Contact us for further details regarding this machine.

Overview

brand: RECKERMANN
year: 2008
MODEL: RBZ-1520
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold

Technical Information - RECKERMANN RBZ-1520

General Data

Measurements width: 3600 mm
Measurements depth: 6000 mm
Measurements height: 3650 mm
Machine weight: 12500 kg

Movement

X-AXIS Movement: 1520 MM
Y-AXIS Movement: 760 MM
Z-AXIS Movement: 680 MM

Table

Outer length: 1700 mm
Outer width: 860 mm
TSlots size: 18 H8
Number of tslots: 6
Distance between: 120 mm and 240 mm
Table load: 1800 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle nose to table distance 150-800 mm / spindle nose to table distance 150-800 mm
- - Feed rate (x, y, z axes) 1-5000 mm/min
- - Rapid traverse (x, y axes) 16000 mm/min / rapid traverse (z-axis) 12000 mm/min
- - Tool magazine capacity 24 tools
- - Maximum tool length 350 mm / maximum tool weight 15 kg
- - Tool change time 4 seconds / operating voltage 400 v
- - Control voltage 230/110/48/24/12 v
- - Frequency 50 hz
- - Total rated current 76 a / power supply fuse 80 a
- - Workplace noise level 70-75 db(a)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
