Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
Ray Feng - RC32NL-TUR-RAY-2018-00002
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Ray Feng RC32 Lathe machine

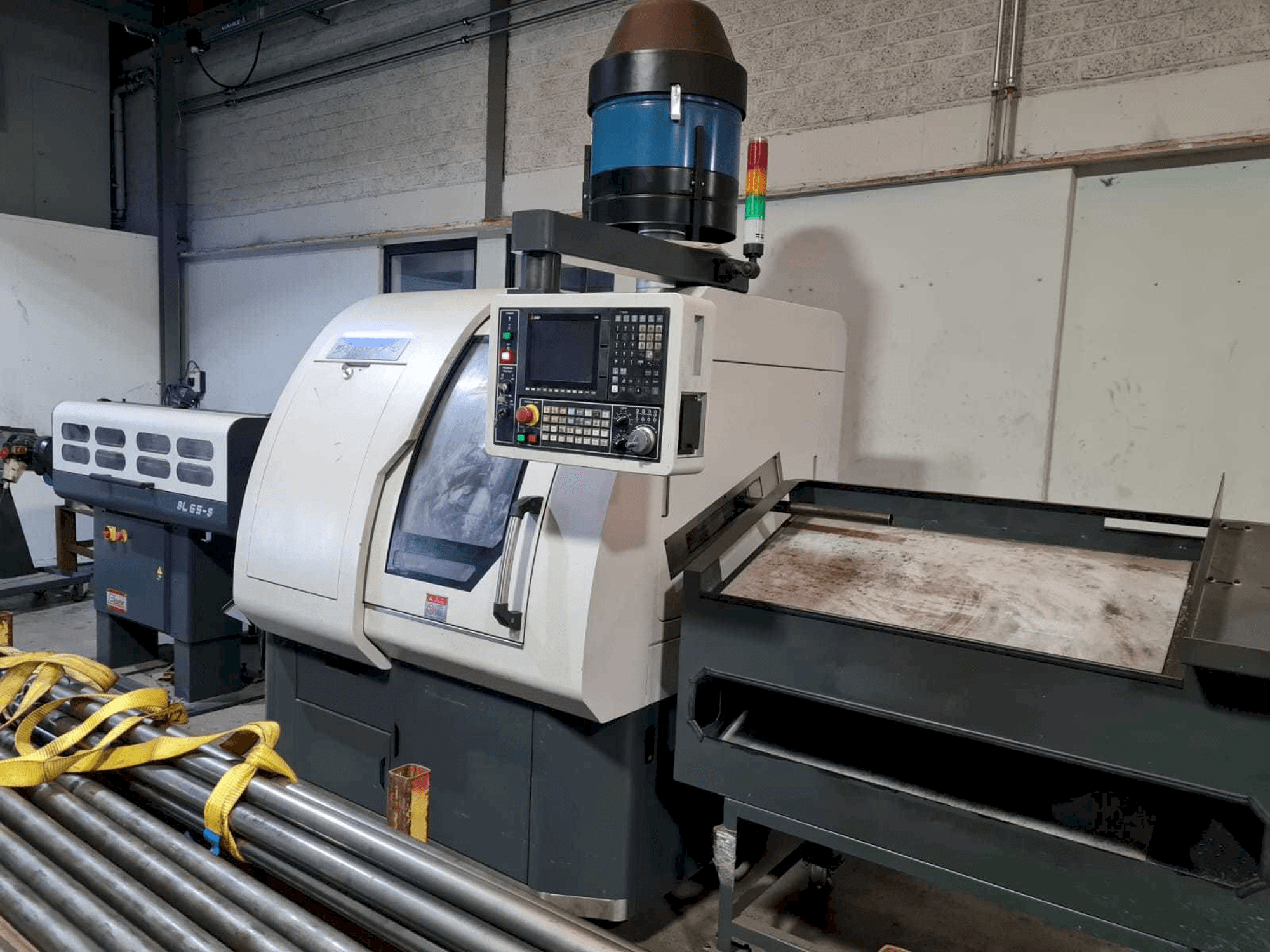

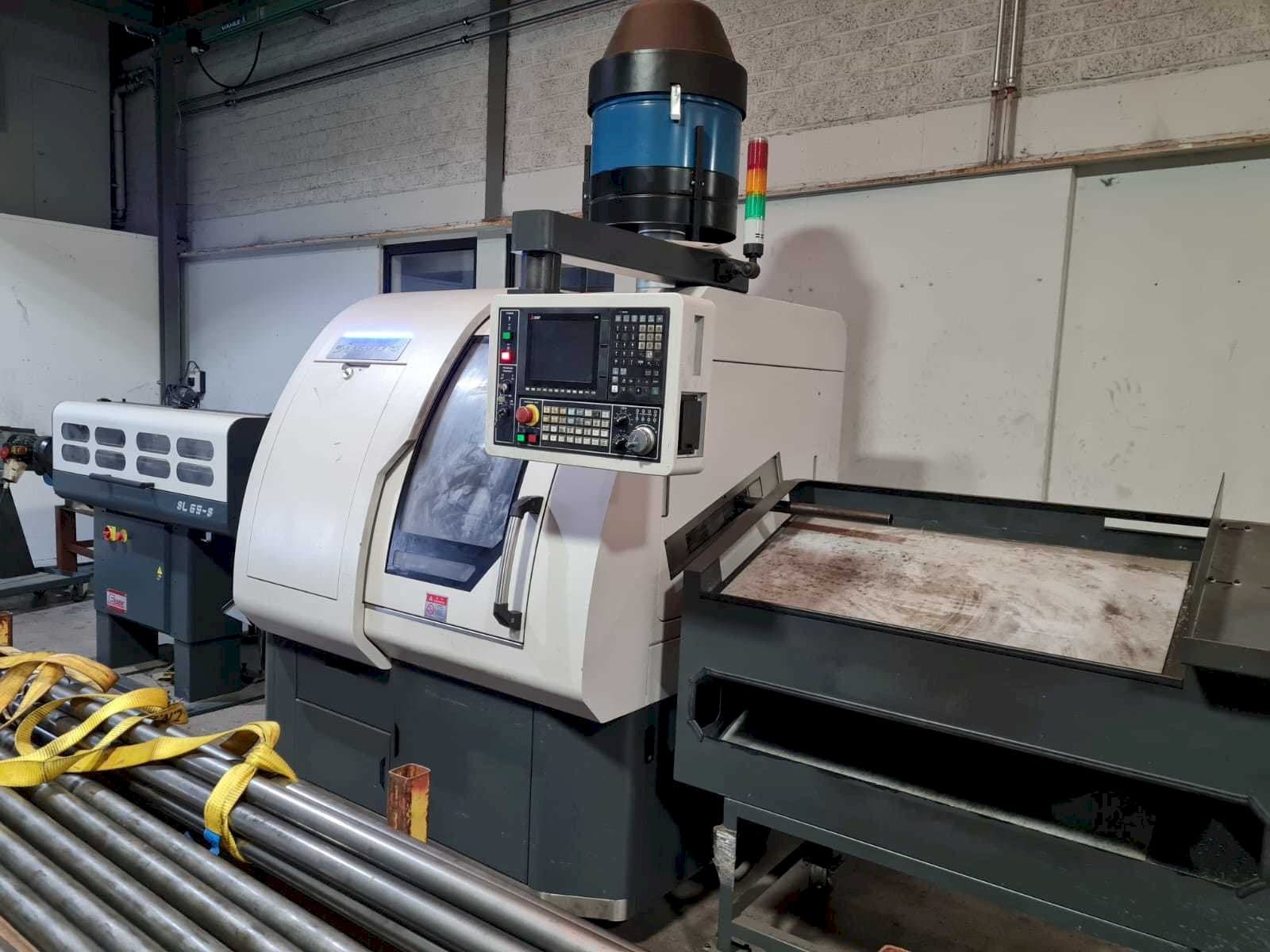

This Ray Feng RC32 Lathe machine was manufactured in the year 2018. This can work with a spindle speed range up to 6000 rpm and a spindle speed of 5 kW. Also counts with a max. turning diameter of 33 mm and a max. turning length of 100 mm. Includes accesories.
Overview
- brand: Ray Feng
- year: 2018
- MODEL: RC32
- application type: Turning
- Location: Netherlands
- machine type: Swiss Type Turning Machine
- availability: Sold
Technical Information - Ray Feng RC32
General Data
- Measurements width: 2070 mm
- Measurements depth: 1565 mm
- Measurements height: 1835 mm
- Machine weight: 1800 kg
Main drive
- Spindle speed range: 6000 1/MIN
- Spindle motor power: 5 Kw
Additional equipment
- - Collet holder (1 collet) Foot switch for collet Machine lighting
- - 4 drill holders
- - 2 rotary holders
- - 1 stop bar
- - Lubricate installation
- - User manual
- - Fedex LNS bar feeder type SL 65S (servo load)
- - Processed Pipe Collection Device (Right of Machine)
- - CE Compliance
- - Transformer 10Kva
Additional Information
- Technical Machine Benefits:
- - Max. Turning diameter: 33 mm
- - Max. Turning length: 100 mm
- - Max. Across the transverse: 80 mm
- - X-axis displacement: 340 mm
- - Z-axis displacement: 150 mm
- - Rapid traverse displacement: 16 m/min
- - Max. Spindle passage: 32 mm
- - X/z engine: 0. 75 kw
- - Smallest date to be entered: 0. 001 mm
- - Cooling pump: 0. 56 hp
- Qualitative Machine Benefits:
- - Workpiece collection device and mist cooling
- - Outside turning tool size: 16x16mm
- - Inside turning tool size: c20-er16
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
