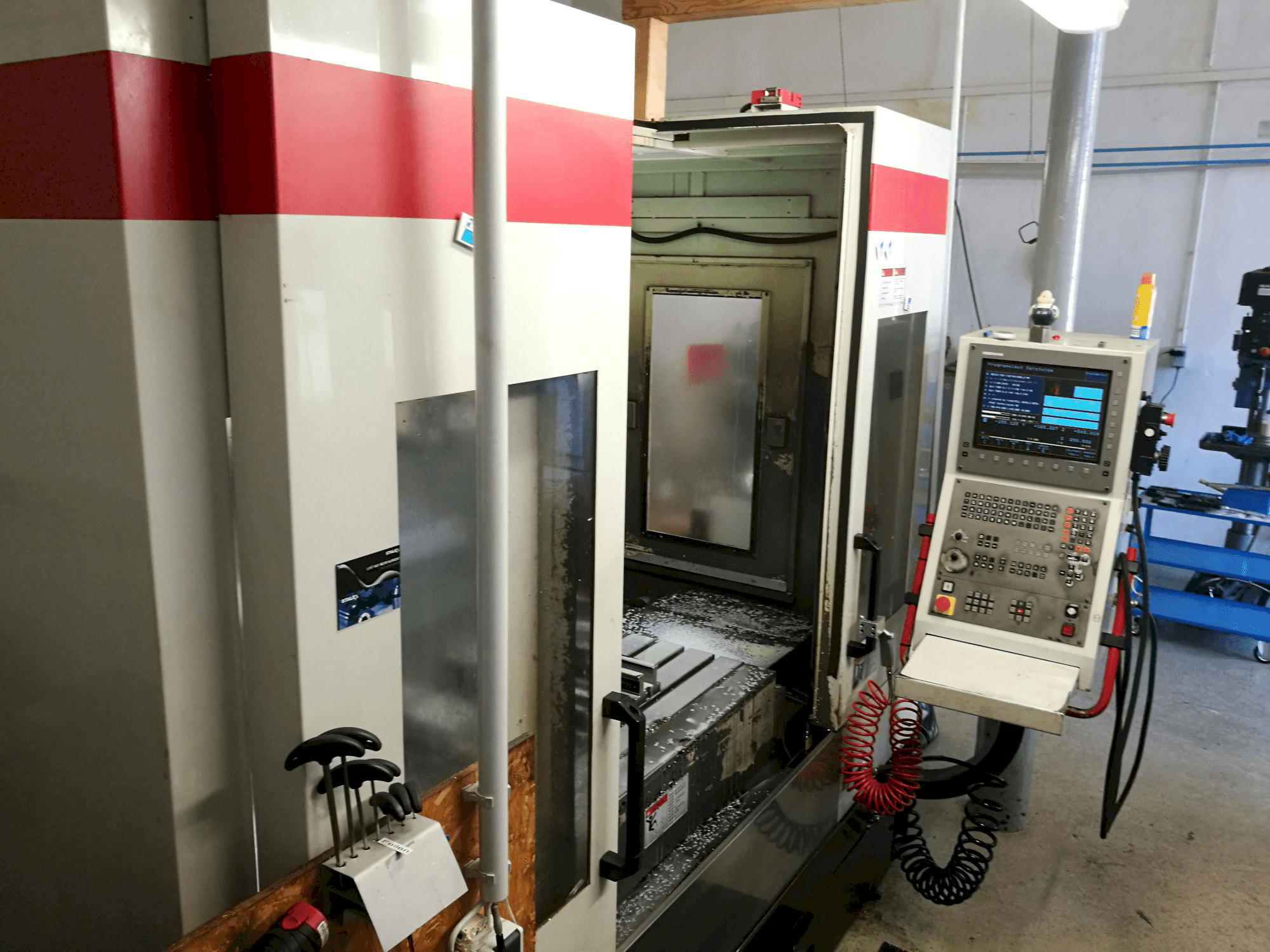

Quaser MV 204 II E Vertical Machining Center

Show in original language

This Quaser MV 204 II E Vertical Machining Center from 2001 was manufactured in Taiwan and has a production time of 59223 working hours since then. Operated through a HEIDENHAIN Control Unit, this oil free machine has mainly worked with steel during the past with a spindle time of 21043 h.

Overview

brand: Quaser
year: 2001
MODEL: MV 204 II E
production hours: 59223
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Quaser MV 204 II E

General Data

Measurements width: 2650 mm
Measurements depth: 2200 mm
Measurements height: 2830 mm
Machine weight: 7500 kg

Control Unit

CNC main language: German
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 7500 1/min

Movement

X-AXIS Movement: 1020 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 560 mm

Table

Outer length: 1200 mm
Outer width: 635 mm

Tools

Max weight: 7 kg
Max tool diameter: 88 mm
Max tool length: 300 mm

Media

Main electronic connection: 380 V
Power consumption: 30 kVA
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
