Quaser - MK60 IISLV-MIL-QUA-1998-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

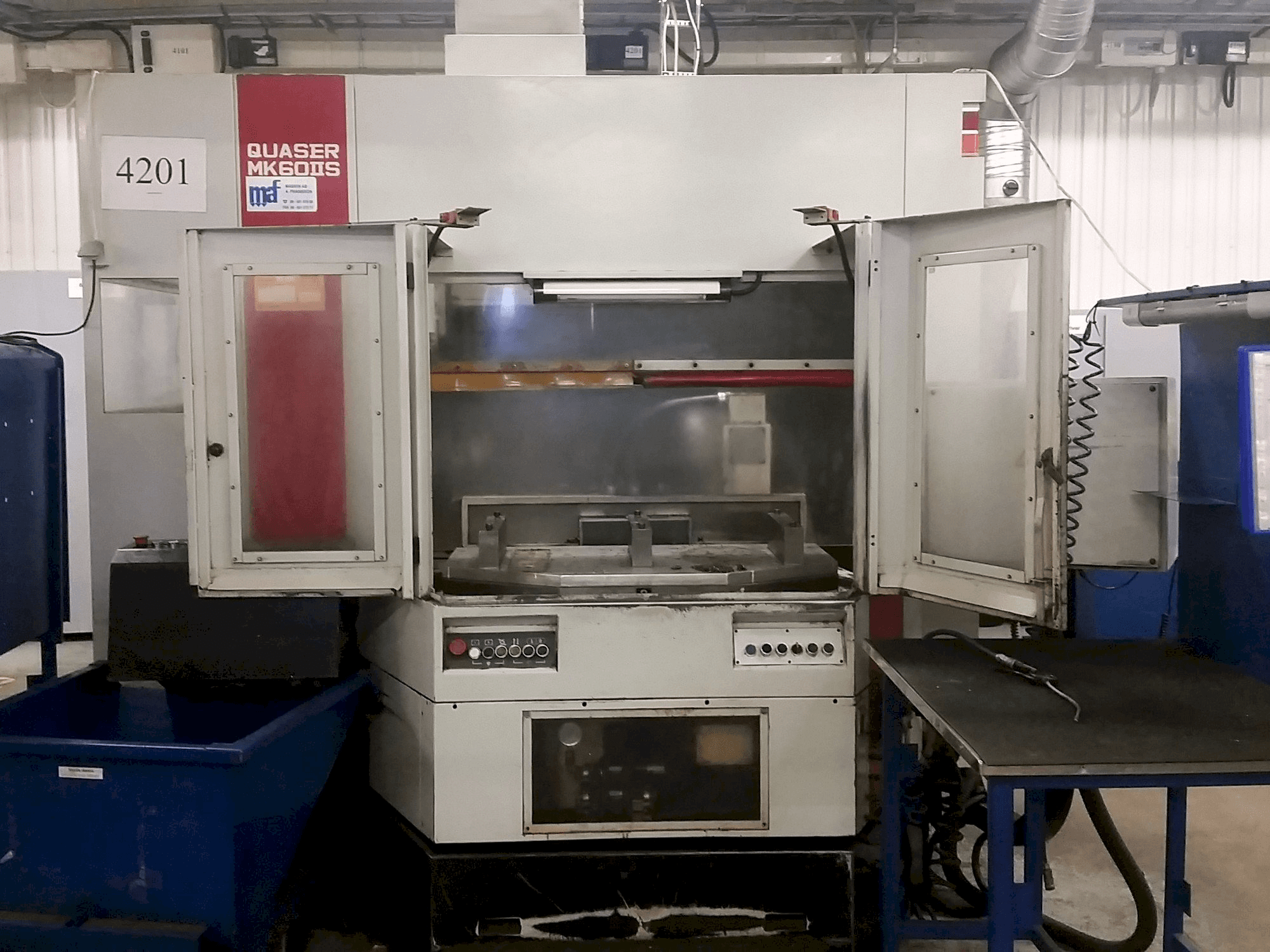

Quaser MK60 IIS Vertical Machining Center

Show in original language

This Quaser MK60 IIS Vertical Machining Center was manufactured in 1998. It has a working record of 13914 production hours. It is equipped with a FANUC 18 MC control unit. This machine can work with a spindle speed range up to 10000 rpm.

Overview

brand: Quaser
year: 1998
MODEL: MK60 IIS
production hours: 13914
application type: Milling
Location: Latvia
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Quaser MK60 IIS

General Data

Measurements width: 46200 mm
Measurements depth: 2660 mm
Measurements height: 3080 mm
Machine weight: 9500 kg

Control Unit

Model: 18 MC
Brand: FANUC

Main drive

Spindle speed range: 10000 rpm 1/MIN

Movement

X-AXIS Movement: 1020 mm
Y-AXIS Movement: 610 mm
Z-AXIS Movement: 560 mm

Workpiece

Workpiece x: 1200 mm
Workpiece y: 610 mm
Workpiece z: 560 mm

Table

Outer length: 1050 mm
Outer width: 550 mm

Tools

Slots in storage: 40
Max weight: 10 kg
Max tool diameter: 100 mm
Max tool length: 300 mm
Type of tool holder: ISO 40/BT40

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.
