- Quaser MK 60 II H Horizontal Machining Center

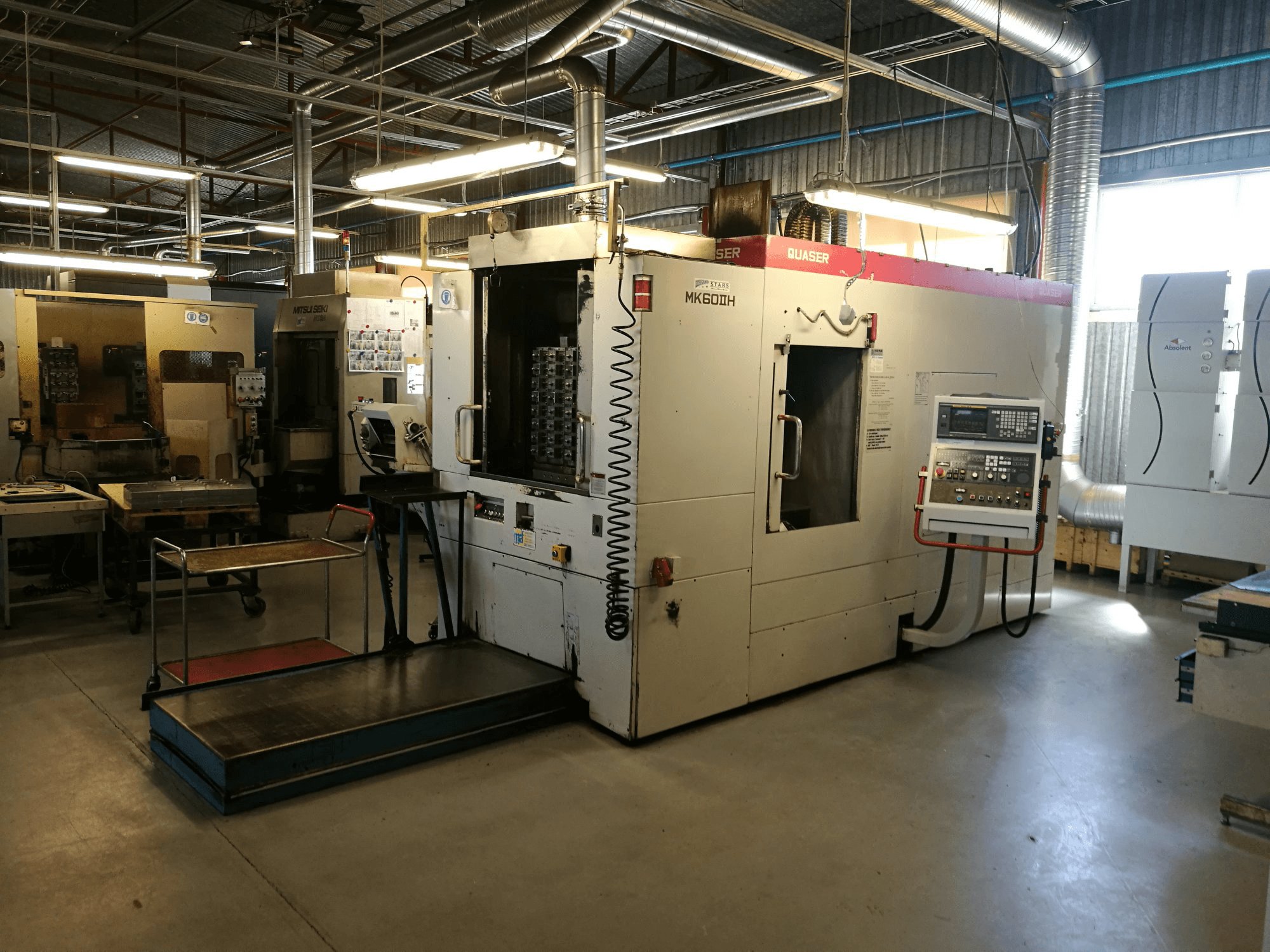

This Quaser MK 60 II H Horizontal Machining Center was manufactured in 2001 in Taiwan and has a working record of approximately 7500 production hours. Equipped with a FANUC Series 18M Control unit, this machine has mainly worked with steel during the past and comes with an additional lifting device included.
Overview
- brand: Quaser
- year: 2001
- MODEL: MK 60 II H
- production hours: 7500
- application type: Milling
- Location: Estonia
- machine type: Horizontal Machining Centre
- availability: Sold
- control unit brand: FANUC
Technical Information - Quaser MK 60 II H
General Data
- Measurements width: 2700 mm
- Measurements depth: 4220 mm
- Measurements height: 3000 mm
- Machine weight: 12000 kg
Control Unit
- Brand: FANUC
- Model: Series 18M
Main drive
- Number of spindles: 1
- Spindle speed range: 10000 1/min
Movement
- X-AXIS Movement: 710 mm
- Y-AXIS Movement: 610 mm
- Z-AXIS Movement: 610 mm
Workpiece
- Workpiece x: 800 mm
- Workpiece y: 200 mm
- Workpiece z: 500 mm
- Workpiece weight: 3800 kg
Table
- Outer length: 500 x 500 mm
Tools
- Max weight: 10 kg
- Max tool diameter: 100/150 mm
- Max tool length: 350 mm
Media
- Main electronic connection: 400 V / 50 Hz / 3 P
- Power consumption: 45 kVA
Additional equipment
- - Lifting device
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Sergi Guardia
Payment Terms
Payment in advance
Asset Financing
