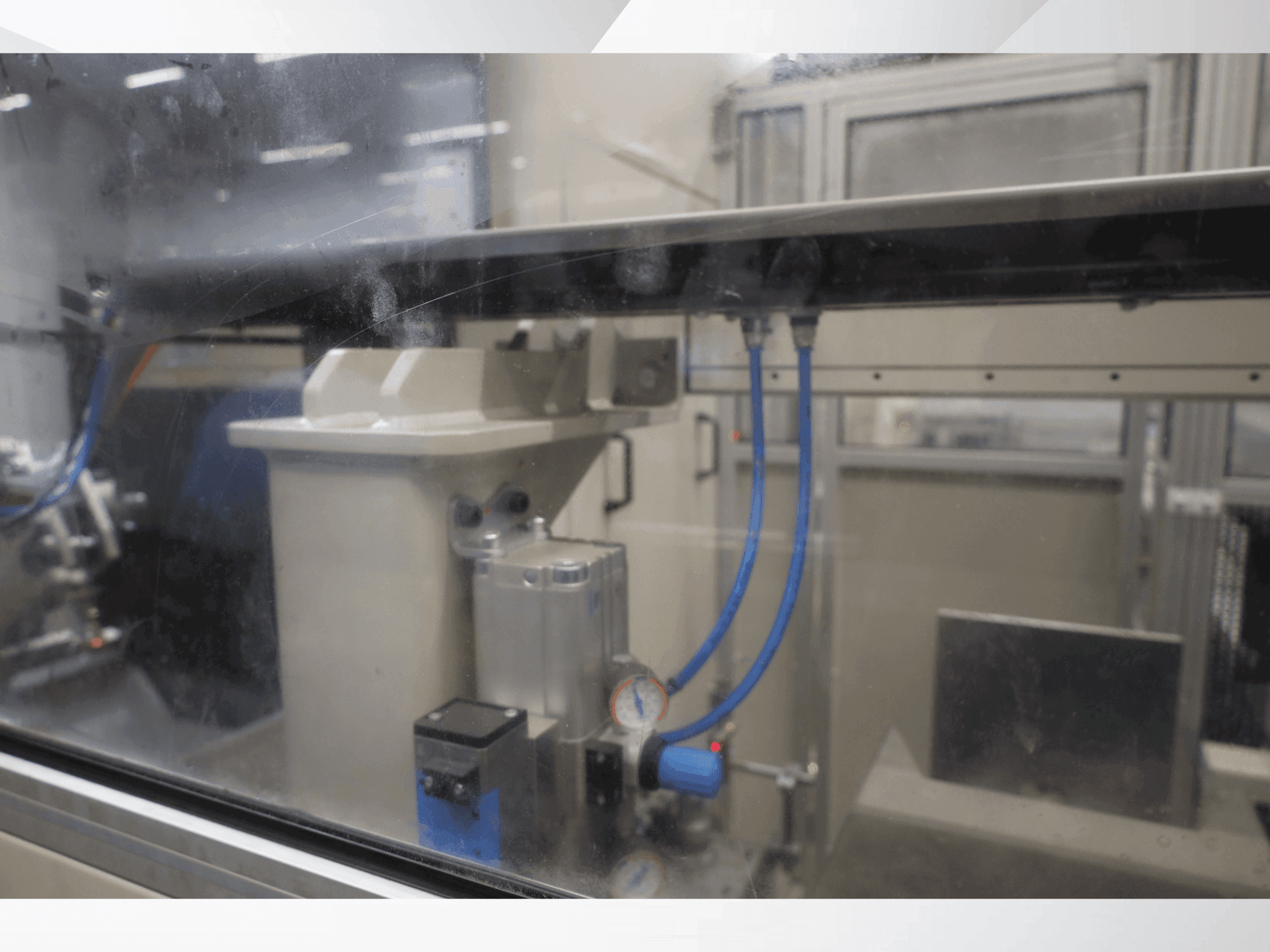

PROFILATOR - DV370-HL-05DE-OTH-PRO-2020-00001

Additional equipment

• - Toothed Spindle 1: Tool clamping interface: HSK-C63/ Tool speed max: 4500 1/min /Screw tightening torque, expansion chuck: 20 Nm
• - Toothed Spindle 2: Tool clamping interface: UTS 50 /Tool speed max: 7000 1/min/ Screw tightening torque UTS clamp: 40 Nm

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Nc workpiece spindle 1: traverse path x1: 1760mm, z1: 385mm/ travel resolution on the cnc: 0. 001mm/ input speed of the axes max: 60 m/min
  • - Nc workpiece spindle 2: traverse path x2: 2011mm, z2: 390mm /travel resolution on the cnc: 0. 001mm/input speed of axes max: 60 m/min
  • - Nc workpiece counterholder: traverse path x3: 104mm, z3: 107mm /travel resolution on the cnc: 0. 001mm /input speed of the axes max: 60 m/min
  • - Gear tower 1: traverse path y11: 195mm /travel resolution at the cnc: 0. 001mm /swivelling angle b1 max: 10°
  • - Loading gantry: travel u5 axis: 1907mm /traverse path v5 axis: 271mm
  • - Input speed (all applicable axes): max 60 m/min
  • - Rotation diameter max: 210mm/machining diameter max: 200mm/workpiece length max: 300mm/interface, workpiece clamping: kk6/workpiece speed max: 1100 1/min
  • - Factory back spindle 1/2: speed max: 1000 1/min/gear spindle 1 and 2, shift slide y11, nc workpiece counterholder, slide x1/x2, slide z1/z2, a11 axle (charging unit), u5 & v5 axes (loading gantry):/speed max: 3000 1/min, 9000 1/min for gear spindle 2
  • - Loading gantry: 500kg/magnetic chip conveyor: 100kg/water recooler: 150kg
