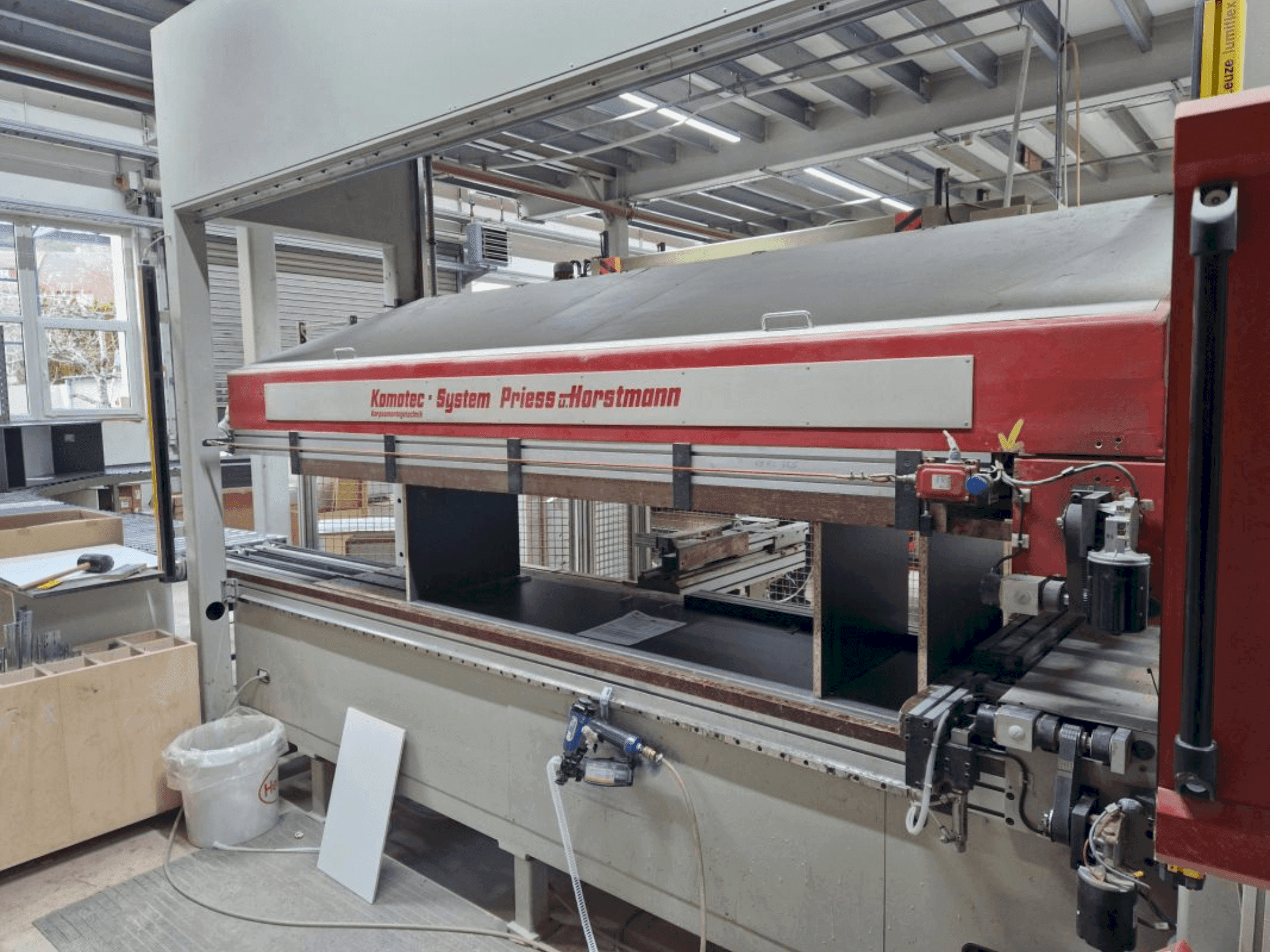

Priess & Horstmann - PBA-52MDE-OTH-PRI-2000-00002

Additional equipment

• - Feeding and Buffer Section: Components: Roller conveyors, cross conveyors, belt conveyors
• - Roller Conveyor: Driven by geared motor (0.55 kW), speed 50 m/min
• - Cross Conveyors: 8 toothed belts, 40 m/min speed
• - Belt Conveyor: For manual workstation, adjustable speed 50-100 m/min

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Paint: pebble gray (ral 7032), fire red (ral 3000), matt black (ral 9005)
  • - The machine is designed for efficient loading, drilling, assembly, and glue application for various workpieces, complemented by a comprehensive feeding and buffer system.
  • - Portal loading system pba-52m: 400 v, 50 hz, 4 kw
  • - Bma-dls-cnc drilling and assembly system: 400 v, 50 hz, 13 kw
  • - Bad-dtw-cnc drilling and assembly system: 400 v, 50 hz, 20 kw
  • - Automatic glue application la - cnc: 400 v, 50 hz, 5 kw
  • - Kp-6-cnc carcass press: 400 v, 50 hz, 10 kw
  • - Compressed air: via drilling and assembly system; r 1/2” with pressure switch, 6-7 bar
  • - Extraction: 32 m/sec air speed, 2200 pa negative pressure

Extra information

• - Workpiece Portal Loading System PBA-52M: Workpiece Dimensions: Length: 300-2350 mm Width: 300-700 mm Thickness: 16-25 mm Stacking Height: 300-1500 mm BMA-DLS-CNC Drilling and Assembly System: Workpiece Dimensions: Length: 250-2500 mm Width: 200-700 mm Thickness: 16-25 mm Cycle Times: Infeed/outfeed: 5-7 sec Drilling: 2 sec Press-fit: 3 sec BAD-DTW-CNC Drilling and Assembly System: Workpiece Dimensions: Length: 218-1600 mm Width: 147-700 mm Thickness: 16-25 mm Cycle Times: Infeed/outfeed: 5-7 sec Drilling: 2 sec Press-in: 3 sec Base feet pressing: 35 sec Automatic Glue Application LA - CNC: Workpiece Dimensions: Length: 257-2500 mm Width: 200-700 mm Thickness: 16-22 mm Working Height: 950 mm Feeding and Turning Device ZWA-1-CNC: Workpiece Dimensions: Height: 257-2500 mm Width: 300-1200 mm Depth: 250-700 mm Working Height: 930 mm KP-6-CNC Carcass Press: Workpiece Dimensions: Height: 257-2500 mm Width: 300-1200 mm Depth: 250-700 mm Max. Side Thickness: 56 mm Working Height: 930 mm
