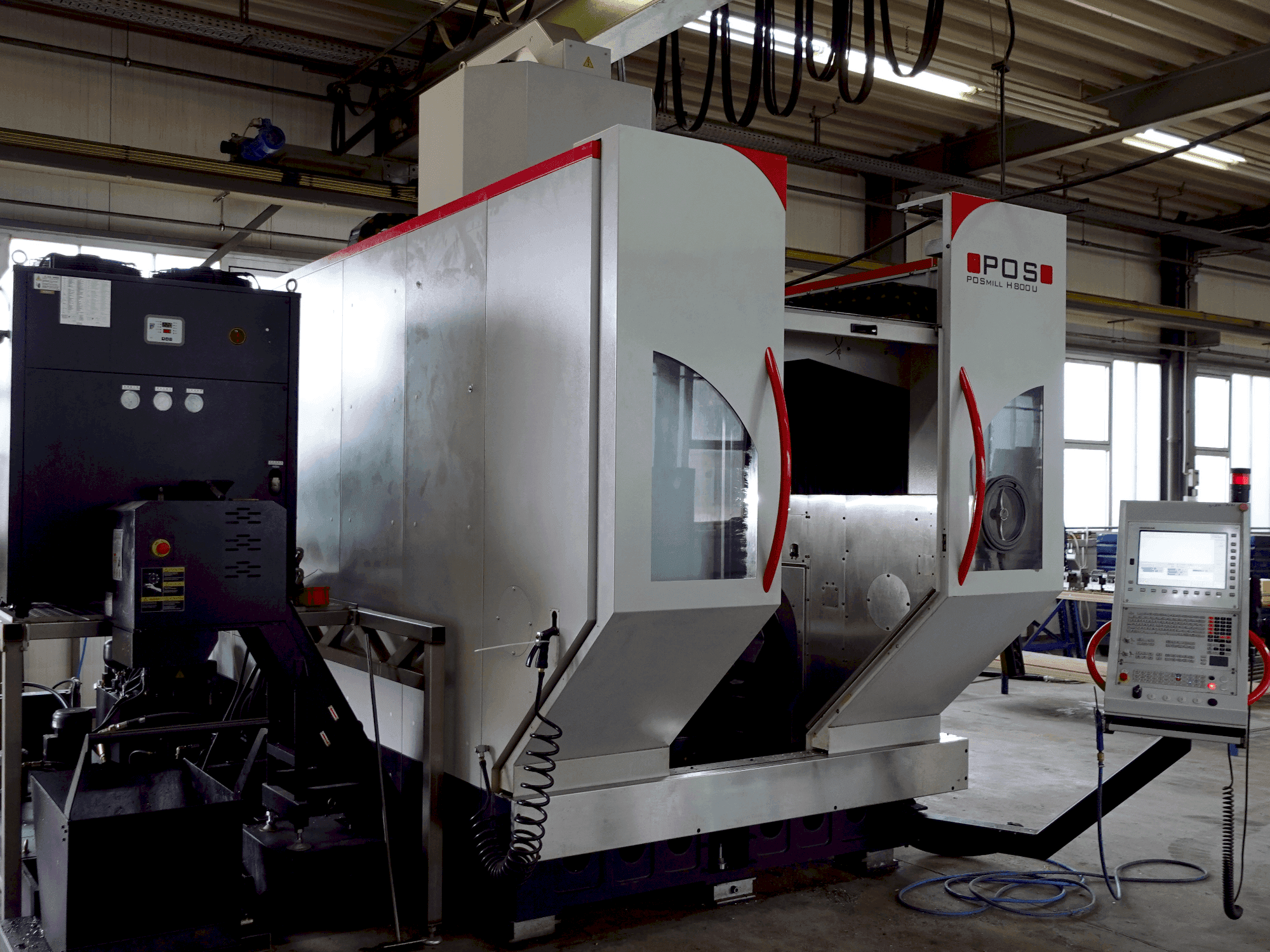

POSmill H 800 U Universal Machining center

Show in original language

This POSmill H 800 U Universal Machining center was manufactured in the year 2019. It is equipped with a HEIDENHAIN TNC i 530 control unit and has 5 axis. The machine has a spindle speed of 18000 rpm. This High-performance machining center is ideal for both demanding tool and mold making and high-volume production. Standard torque drives on all rotary axes enable full simultaneous 5-axis machining (swivel range: +/-120 degrees, rotary table: 360 degrees endless). See attached the full tech specs of the original order confirmation.

Overview

brand: POSmill
year: 2019
MODEL: H 800 U
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - POSmill H 800 U

Control Unit

Model: TNC i 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 18000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 670 mm
Y-AXIS Movement: 830 mm
Z-AXIS Movement: 600 mm

Tools

Type of tool holder: HSK-A 63

Media

Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swivel range: -120 to + 120 degrees
- - Rotary table: 360 degrees endless
- - Tool changer 96-fold
- - Hsk-a 63 heidenhain linear measuring system x,y,z
- - Sealing air for all linear measuring system
- - Active switch cabinet cooler air-air
- - Oil cooling for 4th + 5th axis, controlled
- - Spindle cooler, controlled
- - Rotation measuring system heidenhain, 3d probe tool measurement by blum laser
- - Ikz 20 bar with belt filter unit with temperature control coolant
Qualitative Machine Benefits:
- - High-performance machining center with 5 axis

Extra information

- Specific options: POSRobo Basic // POSrobo+ // POS gripper // Stainless steel platform for IKZ system POSmill H series

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

POSmill H 800 U (2019) - Overview Tech Specs.pdf
