➤ Used POSmill C 1050 For Sale | gindumac.com

Show in original language

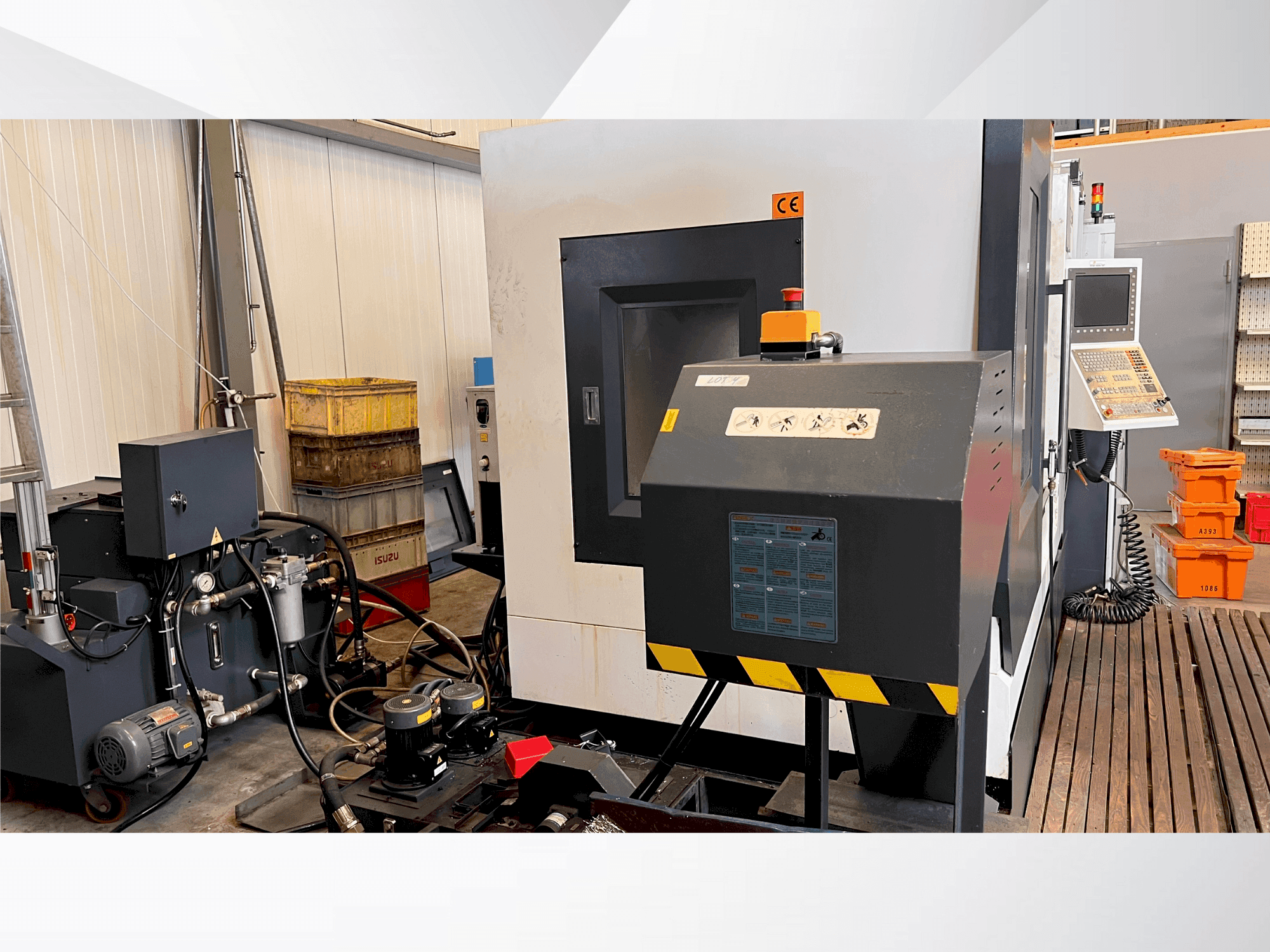

This 3-axis POSmill C 1050 vertical machining center was manufactured in 2014. It features a Heidenhain 530i control system, Yaskawa Motoman robot, and an internal coolant supply at 20 bar with a belt filter system. The machine offers a working area of 1150 x 560 mm and a tool holder ISO 40 with a speed range up to 10,000 rpm. A great opportunity to buy this POSmill C 1050 vertical machining center. Contact us for further details regarding this vertical machining center.

Overview

brand: POSmill
year: 2014
MODEL: C 1050
production hours: 27000
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - POSmill C 1050

General Data

Machine weight: 7800 kg

Control Unit

Model: 530i
Brand: HEIDENHAIN

Main drive

Spindle speed range: 10000 rpm 1/MIN
Tool taper: ISO 40
Number of axis: 3

Movement

X-AXIS Movement: 1050 MM
Y-AXIS Movement: 530 MM
Z-AXIS Movement: 630 MM

Additional equipment

- Yaskawa Motoman robot
- Active control cabinet cooler (air-cooled)
- Electronic handwheel
- Internal coolant supply 20 bar with belt filter system
- Workpiece measurement system 25.10-HDR
- Robot load capacity: 12 kg / Robot weight: 130 kg / Robot degree of freedom: 6 / Robot repeatability: ±0.08 mm
- Robot working range main axes:S (rotation): -170° to +170°/ L (lower arm): -90° to +150° / U (upper arm): -175° to +240°
- Robot working range manual axes:r (hand roller): -180° to +180°; 22 Nm, 0.65 kgm² / b (wrist rotation): -135° to +135°; 22 Nm, 0.65 kgm² / t (hand rotation): -360° to +360°; 9.8 Nm, 0.17 kgm²

Additional Information

Machine Benefits

Technical Machine Benefits:
- - T-slot number: 5
- - T-slot size: 18 x 100 mm
- - Extensive automation with yaskawa motoman robot
- - Internal coolant supply with high pressure (20 bar)
- - Workpiece measurement system for precision
- - Rated power: 25 kva / operating voltage: 3 – 400 v, 50 hz / feed rate range: 1-10,000 mm/min
- - Max. Tool diameter: 90 mm / max. Tool weight: 7 kg / max. Tool length: 250 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
