- POS POSmill 1100 Vertical Machining Center

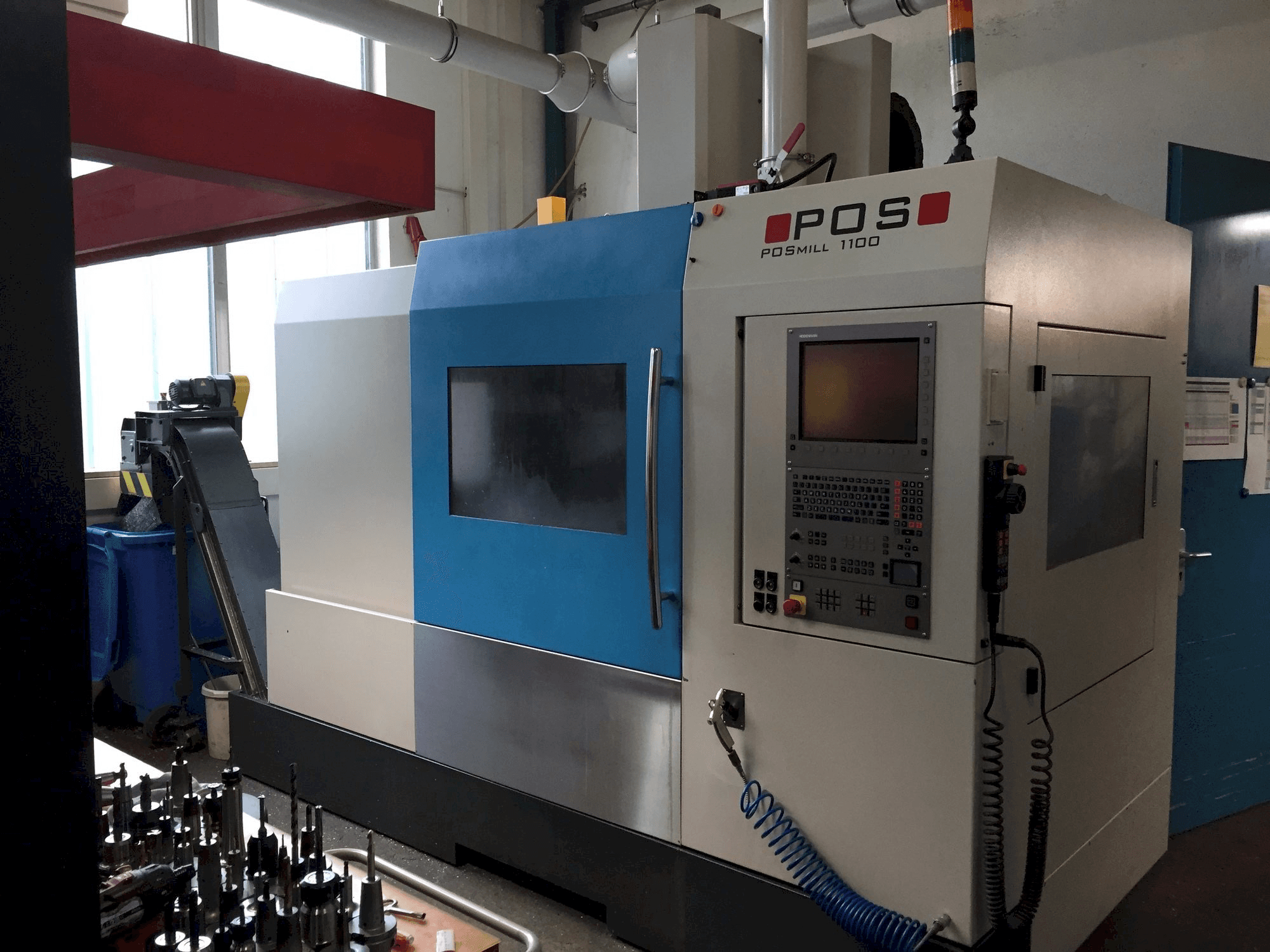

This POSmill 1100 Vertical Machining Center was manufactured in the year 2009 in Germany. It is operated through a Heidenhein iTNC 530 control unit and has been working for 14800 hours. This 3 axis machine counts with a spindle speed up to 15000 rpm. Includes a linear measuring system X,Y,Z and a Tool changer TC40.
Overview
- brand: POSmill
- year: 2009
- MODEL: 1100
- production hours: 14800
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- availability: Immediately
- control unit brand: Heidenhain
Technical Information - POSmill 1100
General Data
- Machine weight: 8500 kg
Control Unit
- Brand: Heidenhain
- Model: iTNC 530
Main drive
- Spindle speed range: 15000 1/MIN
- Spindle motor power: 25 kW
- Number of axis: 3
Movement
- X-AXIS Movement: 1100 mm
- Y-AXIS Movement: 600 mm
- Z-AXIS Movement: 510 mm
Table
- Outer length: 1300 mm
- Outer width: 600 mm
- Max distance between vertical spindle and table: 120-630 mm
- Table load: 1000 kg
Tools
- Max weight: 8 kg
- Max tool length: 300 mm
- Type of tool holder: ISO 40
Media
- Chip conveyor: Yes
- Internal cooling: Yes
Additional equipment
- - Tool changer TC40
- - Protective cabin
- - Plexiglass Hinged belt
Additional Information
- Technical Machine Benefits:
- - Linear measuring system x,y,z
- - Inner coolant supply 20 bar with belt filter unit
- - Slat band tension device
- - Washdown device
- - Water pistol
- - Operation of wzw door locking system
- - Tool change guard
- - Coolant separator , mechanical
- - Operation of wzw door locking system
- - Workpiece measuring system 25 hdr
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
