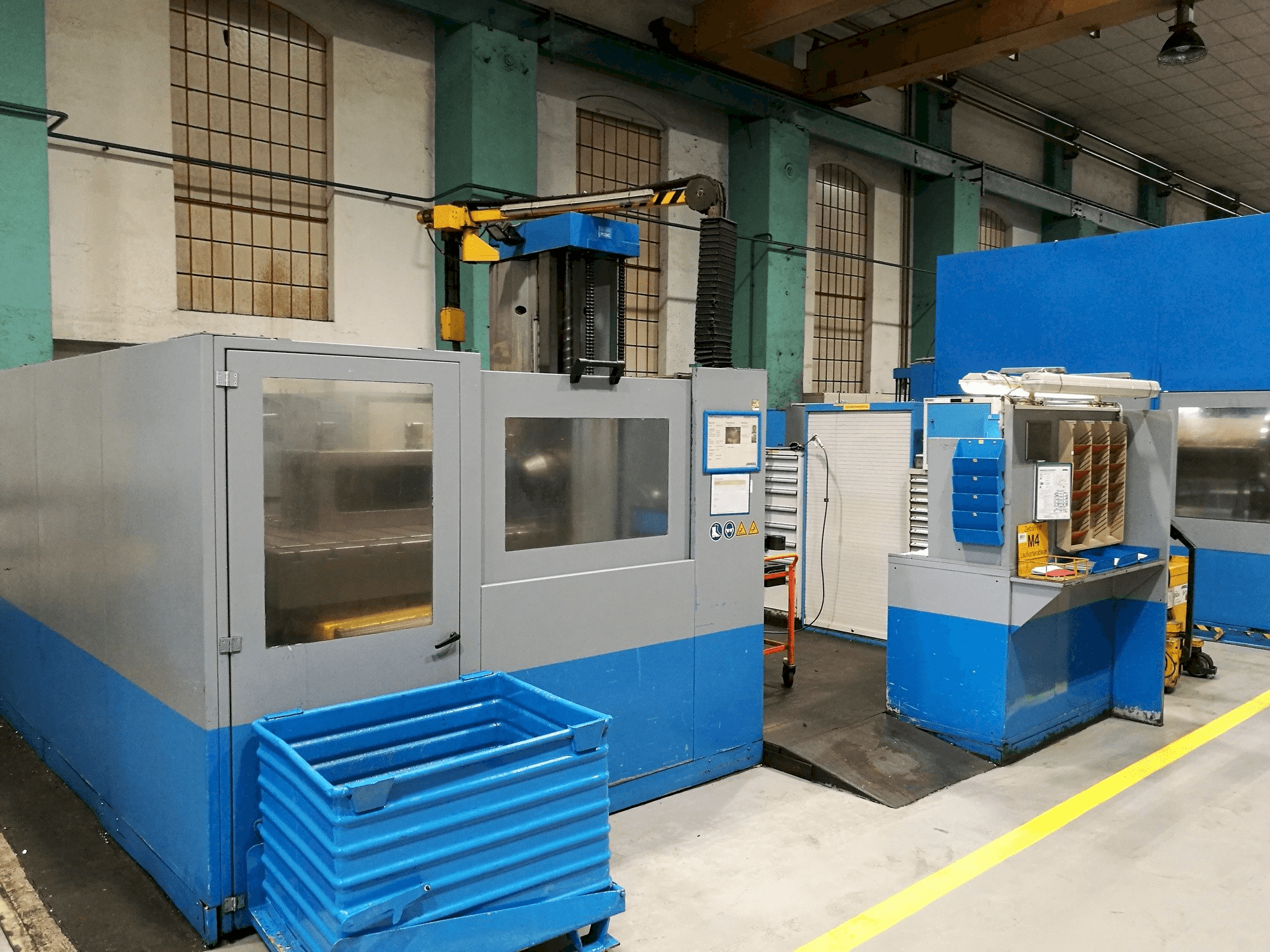

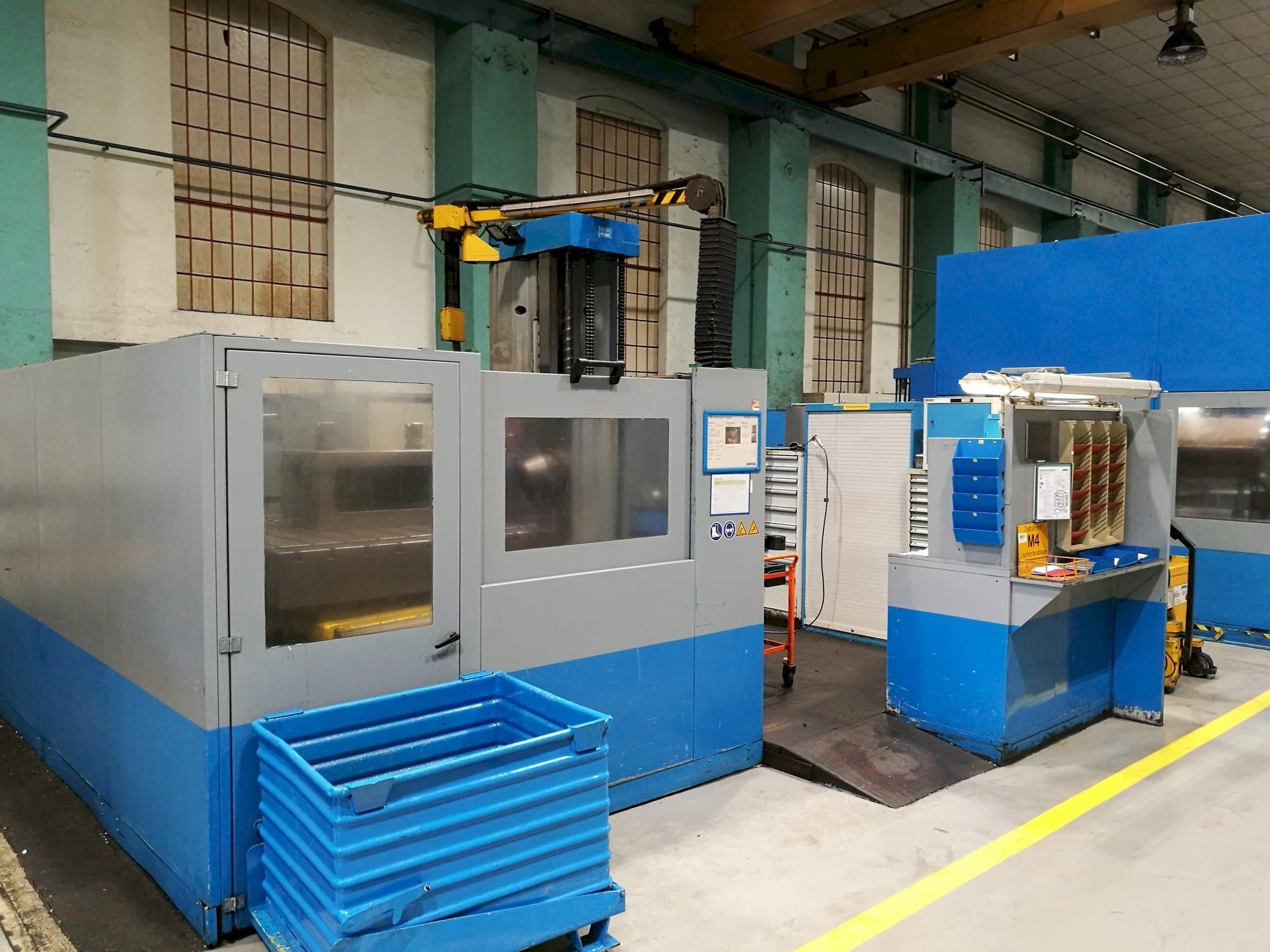

PEGARD AF 130 S Milling Machine

Show in original language

This PEGARD AF 130 S Milling Machine was produced in France in 1975 and retrofitted in 1999. Operated through a SIEMENS Sinumerik 850C Control unit, this machine can be used manually or in CNC 5 axes mode. It stands out for being able to perform with 8000kg workpieces. It has a complete housing and it includes a round table, a pinole and a chip conveyer.

Overview

brand: PEGARD
year: 1975
MODEL: AF 130 S
production hours: 27877
application type: Milling
Location: Austria
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - PEGARD AF 130 S

General Data

Measurements width: 5000 mm
Measurements depth: 5000 mm
Measurements height: 3500 mm
Machine weight: 25500 kg

Control Unit

Model: SINUMERIK 850C
CNC main language: German
CNC language customizable: Yes
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 1000 rpm 1/MIN

Movement

X-AXIS Movement: 2370 mm
Y-AXIS Movement: 1800 mm
Z-AXIS Movement: 1000 mm
A-AXIS Movement: 1500 mm
B-AXIS Movement: 360° MM

Table

Outer length: 2200 mm
Outer width: 1800 mm
Number of tslots: 7x28 H7
Distance between: 200 mm

Tools

Type of tool holder: SK50

Media

Main electronic connection: 380 V
Power consumption: 60 kVA
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
