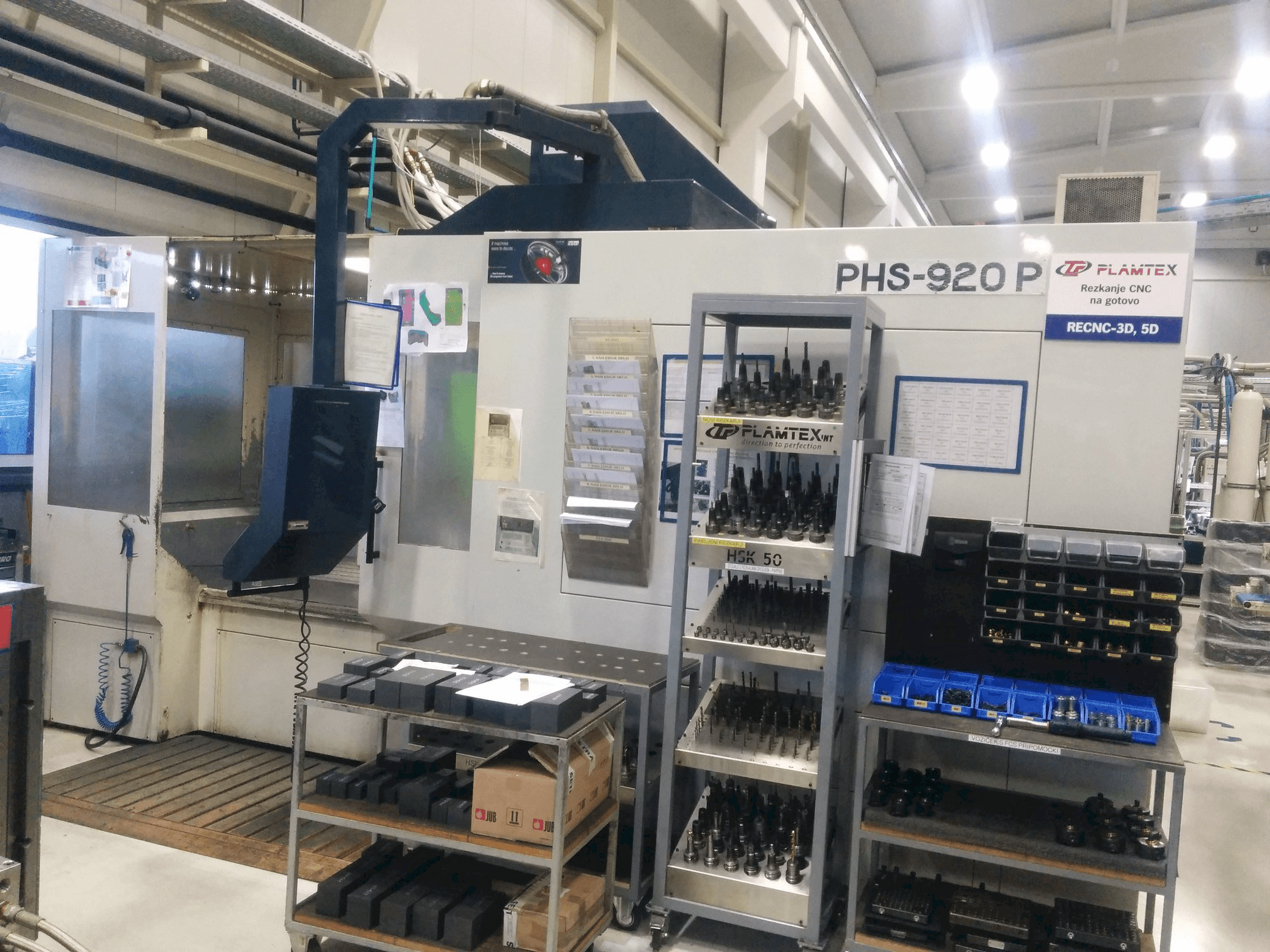

Parpas PHS 920P Milling Machine

Show in original language

This Parpas PHS 920P Milling Machine was manufactured in Italy in the year 2003 and has been working for 48386 hours. This 5 axis machine is capable of working with a spindle speed up to 2000 rpm. This machine stands out for its table load of 4000 kg.

Overview

brand: Parpas
year: 2003
MODEL: PHS 920P
production hours: 48386
application type: Milling
Location: Slovenia
machine type: Gantry Milling Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Parpas PHS 920P

General Data

Measurements width: 2570 mm
Measurements depth: 5200 mm
Measurements height: 3300 mm
Machine weight: 12000 kg

Control Unit

Model: 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 20000 1/MIN
Spindle motor power: 15 kW
Number of axis: 5

Movement

X-AXIS Movement: 2000 mm
Y-AXIS Movement: 1200 mm
Z-AXIS Movement: 500 mm

Table

Outer length: 2100 mm
Outer width: 850 mm
Number of tslots: 7
Distance between: 120 mm
Min distance between vertical spindle and table: 45 mm
Max distance between vertical spindle and table: 545 mm
Table load: 4000 kg

Tools

Max weight: 3 kg
Max tool diameter: 50 mm
Max tool length: 150 mm
Type of tool holder: HSK A50

Additional equipment

- Chiller
- Air Dryer for spindle

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Atc with 20 positions with a heidenhain tool measuring system
- - Portal design optimised with fem analyze
- - 5 axis simultaneous machining
- - Spindle with direct drive, cooled with air/water and cnc controlled thermal
- - Compensation of z axis
- - Heidenhain touch probe for piece presenting and measuring
- - Feedrates: max 30m/min
Qualitative Machine Benefits:
- - Very rigid machine structure-portal design

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
