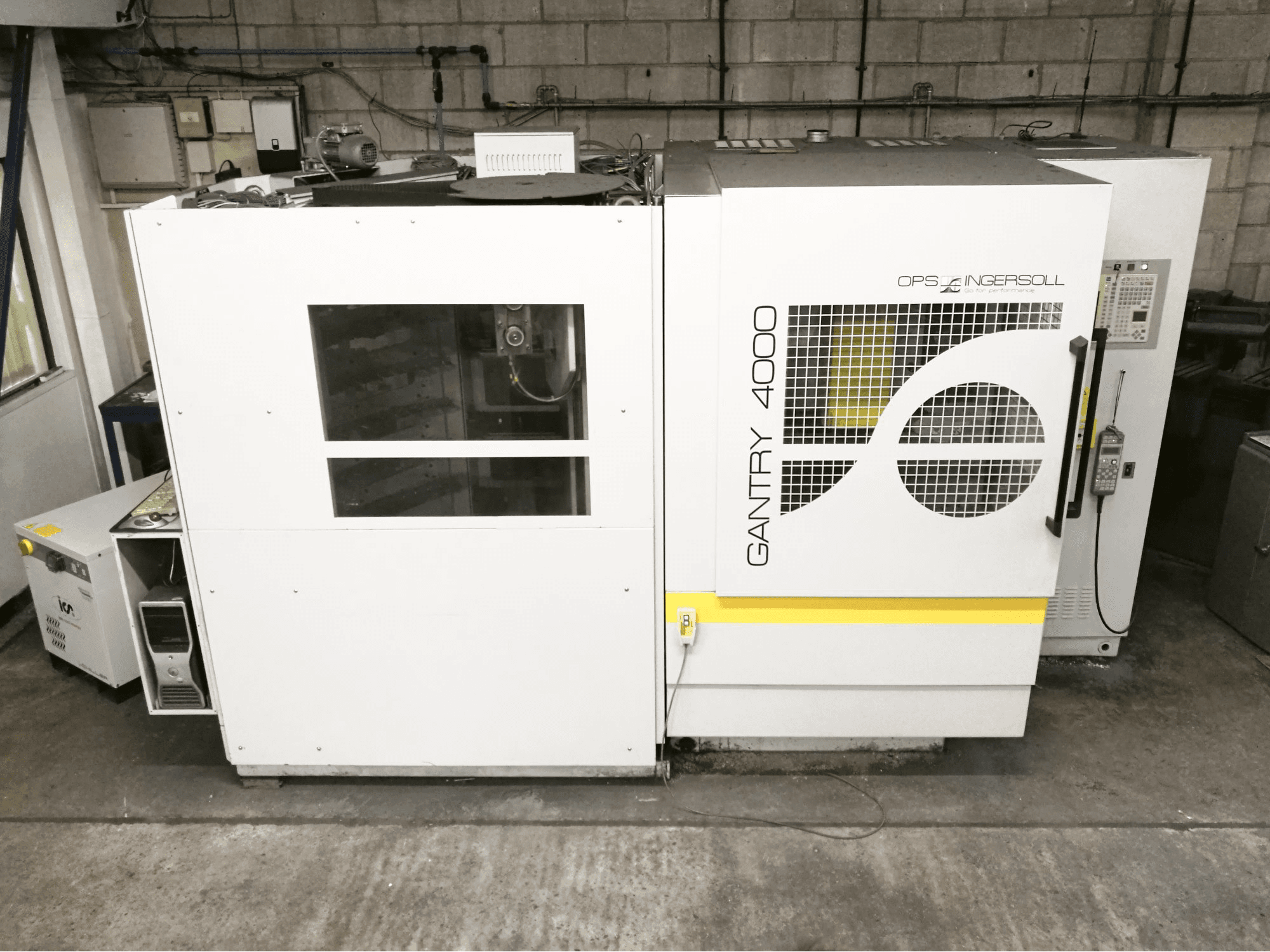

OPS-INGERSOLL Gantry 4000 Erosion Machine

Show in original language

This OPS-INGERSOLL Gantry 4000 Erosion Machine from 2007 is operated through a Mitsubishi control unit, and is capable of handling electrodes of up to 50 kilograms of weight. As additional equipment, an OPS-INGERSOLL Robot loader IMC 5 with a 105x electrode changer and a 4x palette changer are included, plus a C02 extinguisher.

Overview

brand: OPS INGERSOLL
year: 2007
MODEL: Gantry 4000
application type: EDM
Location: United Kingdom
machine type: Die-Sinking EDM Machine
availability: Sold
control unit brand: MITSUBISHI

Technical Information - OPS INGERSOLL Gantry 4000

General Data

Measurements width: 3900 mm
Measurements depth: 2050 mm
Measurements height: 2400 mm
Machine weight: 4000 kg

Control Unit

Brand: MITSUBISHI

Main drive

Working current: 18.5 A

Movement

X-AXIS Movement: 400 mm
Y-AXIS Movement: 300 mm
Z-AXIS Movement: 300 mm

Workpiece

Workpiece weight: 200 kg

Tools

Slots in storage: 105
Max weight: 50 kg
Max tool diameter: 150 mm
Max tool length: 210 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 7.8 kW

Additional equipment

- OPS INGERSOLL Robot loader IMC 5 with 105x electrode changer and 4x pallet changer
- CO2 extinguisher

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
