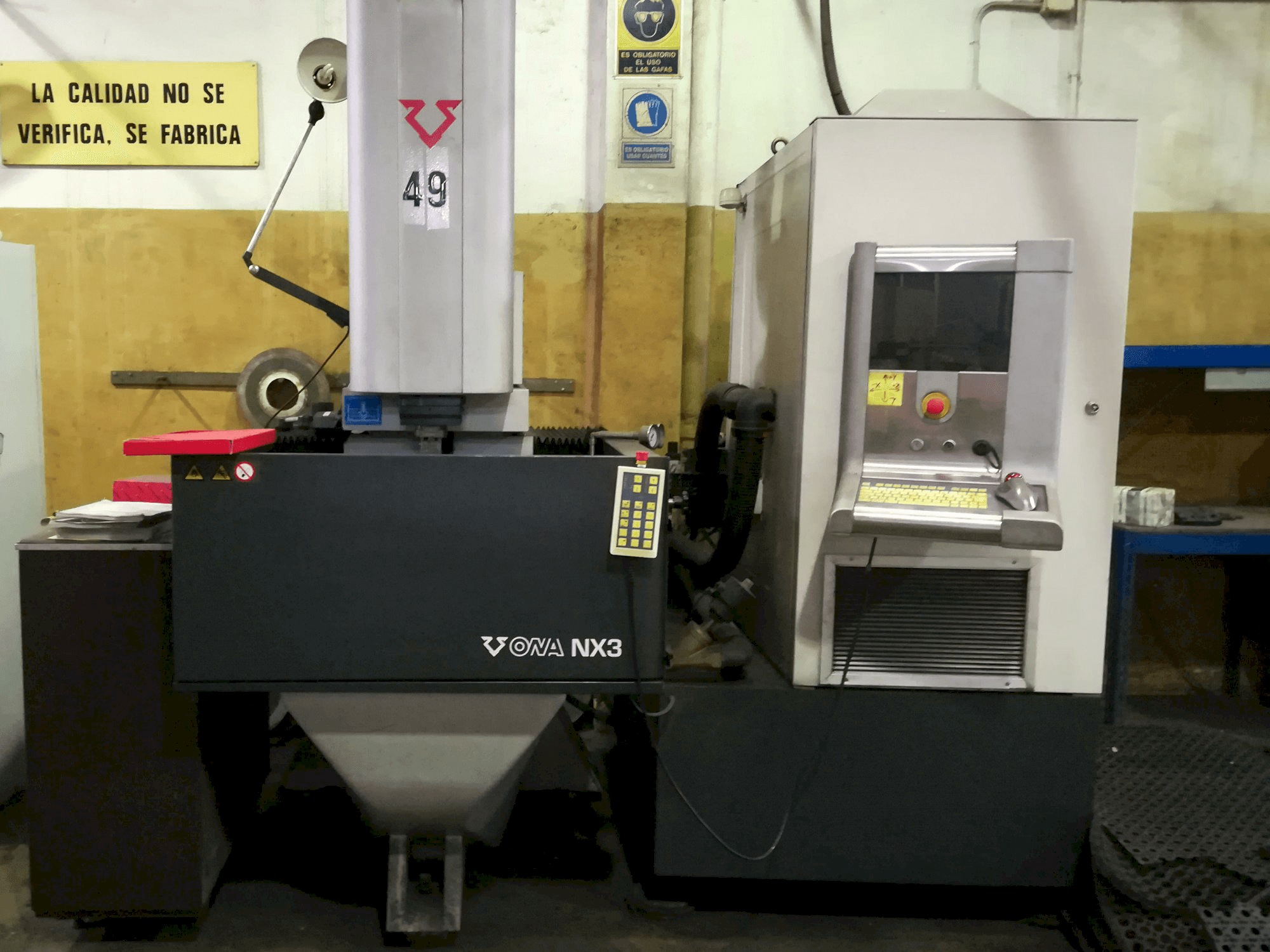

ONA NX3 Erosion Machine

Show in original language

This ONA NX3 Erosion Machine was built in 2011 in Spain and counts a total of 4718 production hours. Operated through an ONA Series NX Control unit, this model has mainly worked with steel during the past. Additional tools and collets are included upon request.

Overview

brand: ONA
year: 2011
MODEL: NX3
production hours: 4718
application type: EDM
Location: Spain
machine type: Wire EDM Machine
availability: Sold
control unit brand: FANUC

Technical Information - ONA NX3

General Data

Measurements width: 2190 mm
Measurements depth: 1880 mm
Measurements height: 2360 mm
Machine weight: 3000 kg

Control Unit

Model: Series NX
CNC main language: Spanish
CNC language customizable: Yes
Brand: FANUC

Main drive

Working current: 14.6 A

Movement

X-AXIS Movement: 400 mm
Y-AXIS Movement: 300 mm
Z-AXIS Movement: 300 mm
C-AXIS Movement: 360° MM

Workpiece

Workpiece z: 220 mm
Workpiece weight: 800 kg

Table

Outer length: 550 mm
Outer width: 400 mm

Media

Main electronic connection: 380 V
Power consumption: 10.7 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
