➤ Used Okuma Multus B300 II For Sale | gindumac.com

Show in original language

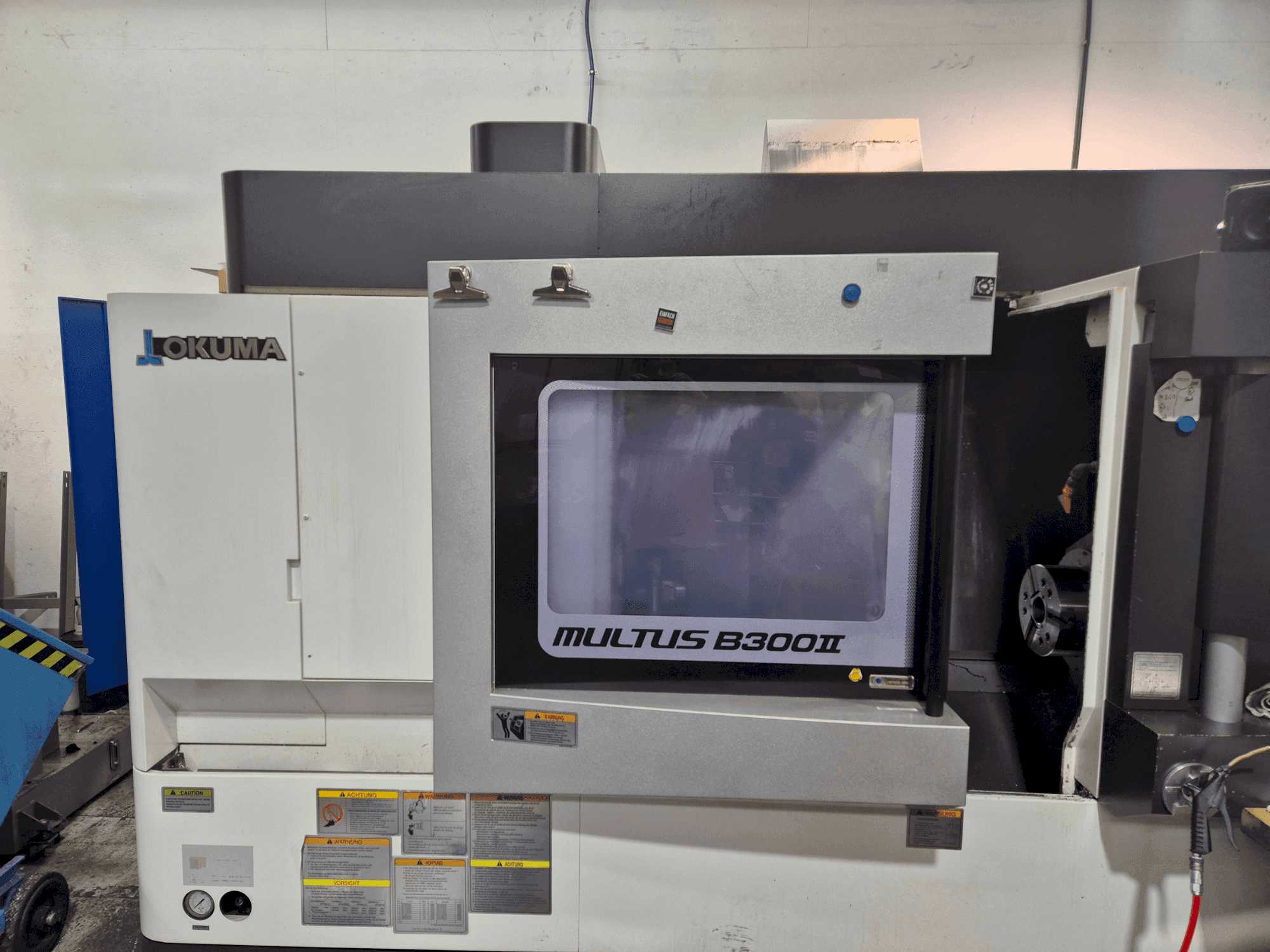

This 4-axis Okuma Multus B300 II Turn Mill Centre was manufactured in 2022. It features a control unit OKUMA OSP-P300SA, a main spindle with a three-jaw chuck diameter of 304mm, and a counter spindle with a C-axis. The milling spindle supports up to 6000 rpm with a torque of 65.7 Nm. If you are looking to get high-quality milling and turning capabilities, consider the Okuma Multus B300 II machine we have for sale. Contact us for more information.

Overview

brand: Okuma
year: 2022
MODEL: Multus B300 II
production hours: 1771
application type: Milling
Location: Germany
machine type: Turn-Mill Centre
availability: Immediately
control unit brand: OKUMA

Technical Information - Okuma Multus B300 II

Control Unit

Brand: OKUMA
Model: OSP-P300SA

Main drive

Spindle speed range: 38-3800 1/MIN
Number of axis: 4

Movement

Y-AXIS Movement: 160 mm
B-AXIS Movement: 0.001° MM

Tools

Slots in storage: 40

Media

Chip conveyor: Yes

Additional equipment

- HI-Cut Pro high-speed control

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 8 short tapers
- - Front bearing diameter: 120mm
- - Boring diameter: 80mm
- - Torque: 412 nm
- - Helical interpolation
- - 10 workpiece zero points
- - Tool spindle and c-axis: 0. 001° for main spindle
- - Ikz: 20 bar
- - Hsk a 63
- - Electr. Spindle orientation: +/- 0. 1°
Qualitative Machine Benefits:
- - Enlarged main spindle
- - Counter spindle with c-axis on w-axis: rapid traverse: 20m/min max: 5000 1/min torque: 328nm spindle nose: kk size 6 spindle bore diameter: 62mm hollow clamping cylinder and three-jaw chuck diameter: 254mm bore in drawtube: 52mm diameter

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
