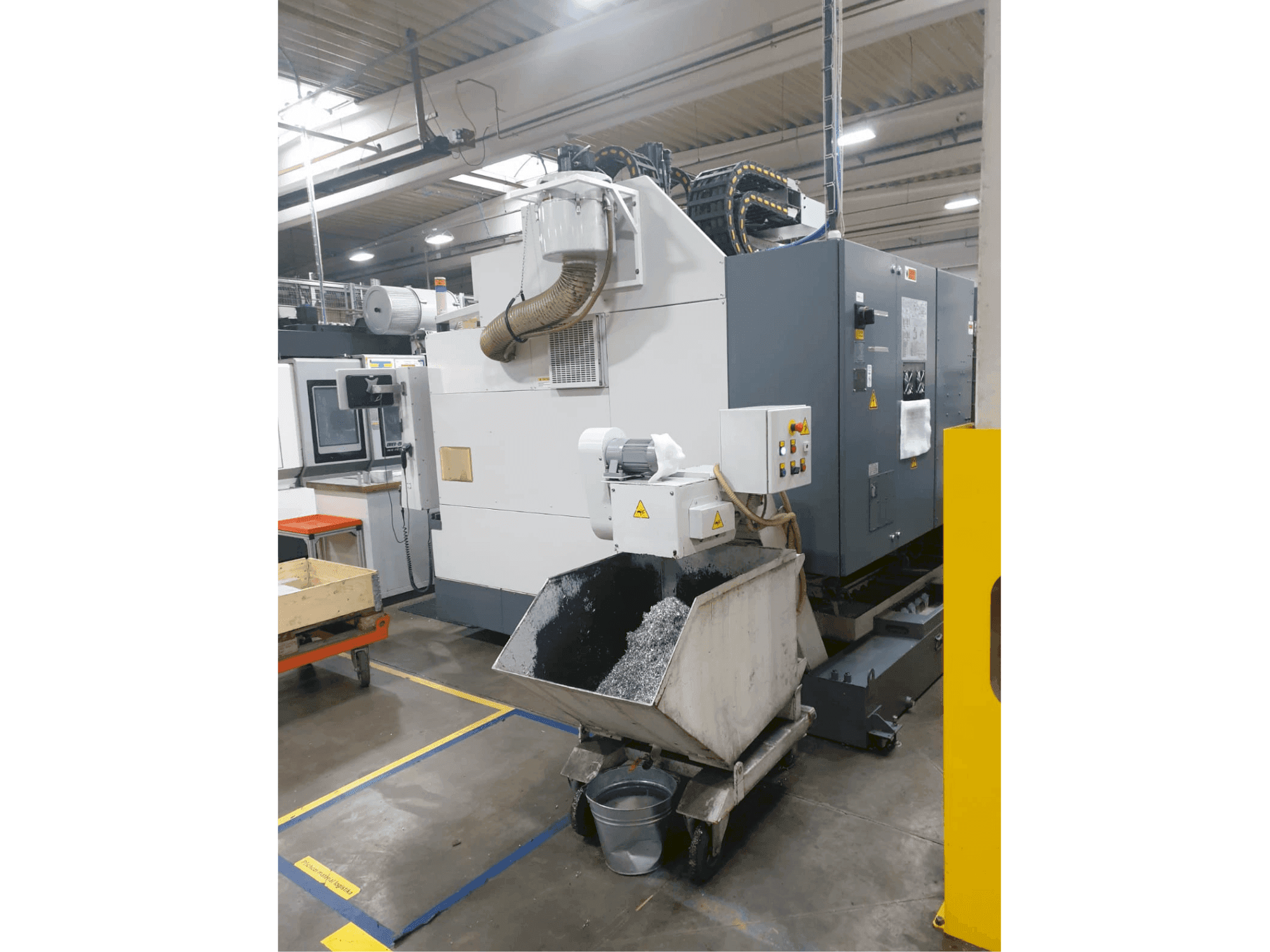

Okuma MB-66VA Vertical Machining center

Show in original language

This Okuma MB-66VA Vertical Machining center was manufactured in the year 2007 in Japan and is controlled by an Okuma OSP P200M control unit. The machine has a spindle speed of 15000 rpm. It is equipped with 3 axis, 48 tool slots and tool holder SK40. It is currently under production and in good condition due to regular maintenance. 4th axis table Kitagawa TMX250J01 available upon extra charge.

Overview

brand: Okuma
year: 2007
MODEL: MB-66VA
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Sold
control unit brand: OKUMA

Technical Information - Okuma MB-66VA

General Data

Measurements width: 3265 mm
Measurements depth: 2940 mm
Measurements height: 3295 mm
Machine weight: 11000 kg

Control Unit

Model: OPS-P200M
Brand: OKUMA

Main drive

Number of spindles: 1
Spindle speed range: 15000 1/min

Movement

X-AXIS Movement: 1500 mm
Y-AXIS Movement: 660 mm
Z-AXIS Movement: 660 mm

Workpiece

Workpiece weight: 1500 kg

Table

Outer length: 1530 mm
Outer width: 660 mm

Tools

Slots in storage: 48
Max weight: 8 kg
Max tool diameter: 90/125 mm
Max tool length: 400 mm
Type of tool holder: SK 40

Media

Power consumption: 50 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 4th axis table kitagawa tmx250j01 (upon extra charge)
- - Min. -max. Height under spindle 150-810 mm
- - Feedrate 32 m/min
- - Rapid feedrate x/y: 40, z: 32 m/min
- - Spindle motor power 22 kw
- - High pressure through spindle coolant with band filtration
- - Mist collector
- - Chip conveyor
- - Renishaw omi 2 workpiece probe (only transmitter)
Qualitative Machine Benefits:
- - Good condition, regularly maintained
- - 2023/06 - new x axis ballscrew

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
