➤ Used Okuma LB3000 EX II-MY C450 For Sale | gindumac.com

Show in original language

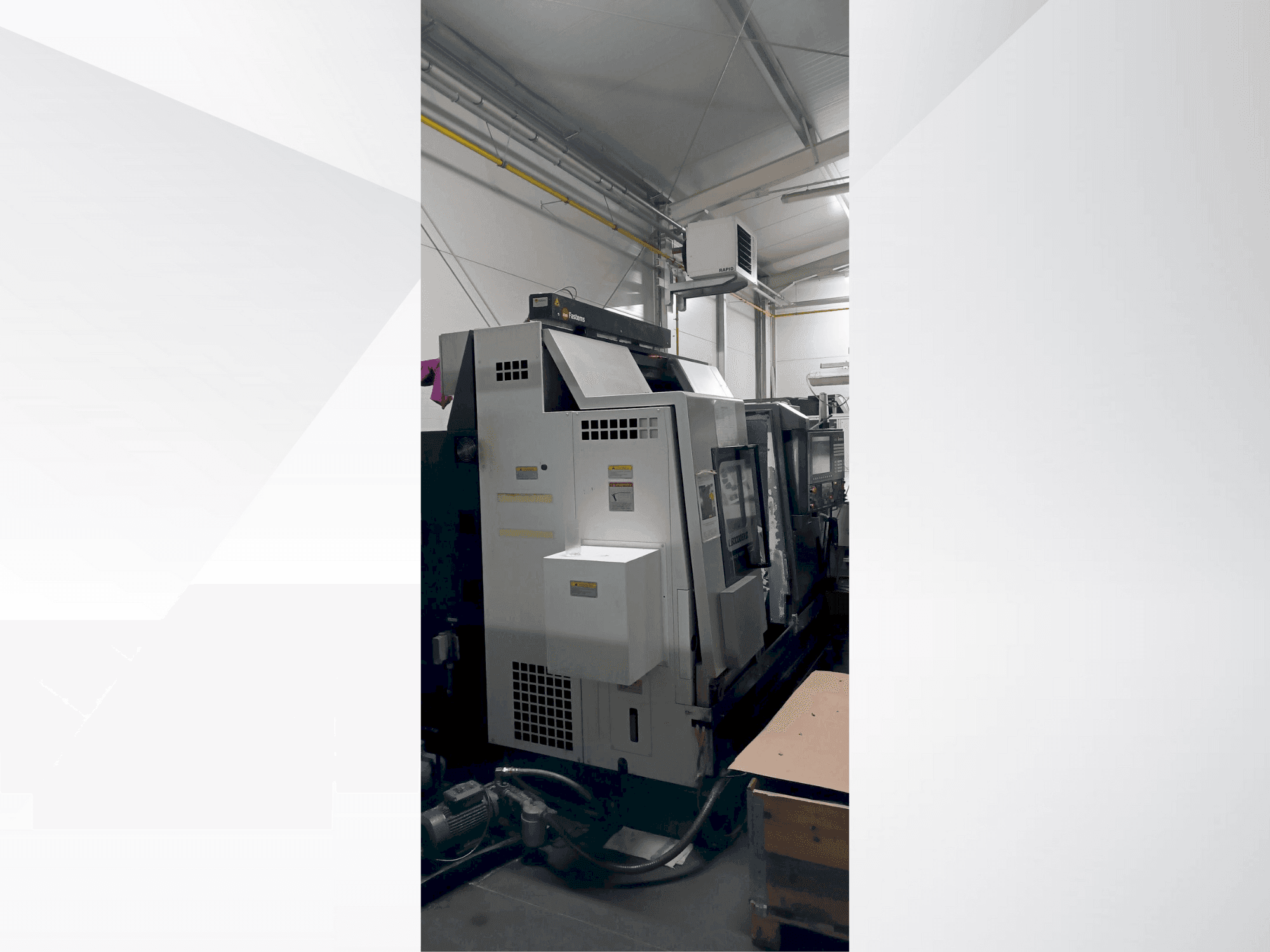

This 4-axis Okuma LB3000 EX II-MY C450 was manufactured in 2017, featuring a robust horizontal turning machine design. It boasts a max turning diameter of 340 mm, a distance between centers of 470 mm, and a maximum work length of 450 mm. Equipped with a high-pressure cooling system at 15 bar and a chip conveyor, it ensures efficient operation. If you are looking to get high-quality turning capabilities consider the Okuma LB3000 EX II-MY C450 machine we have for sale. Contact us for more information.

Overview

brand: Okuma
year: 2017
MODEL: LB3000 EX II-MY C450
application type: Turning
Location: Czech Republic
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: OKUMA

Technical Information - Okuma LB3000 EX II-MY C450

Control Unit

Brand: OKUMA
Model: OSP-P300LA

Main drive

Spindle speed range: 5000 1/MIN
Spindle motor power: 22/15 kW
Number of axis: 3

Movement

X-AXIS Movement: 260 mm
Y-AXIS Movement: 120 (+70 to -50) mm
Z-AXIS Movement: 510 mm

Media

Chip conveyor: Yes

Additional equipment

- Interface for Robot Type E
- Bar Feeder Interface
- Software for Automatic Doors
- High-Pressure Cooling: 15 Bar, 2.2 kW; 2900 RPM

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max turning diameter: 340 mm
- - Distance between centers: 470 mm
- - Max work length: 450 mm
- - Swing over bed: 580 mm
- - C axis: 360 (0. 001) deg.
- - Milling speed: 6000 rpm
- - Tailstock: mt no. 5
Qualitative Machine Benefits:
- - Direct absoscale measurement for the x axis
- - Coolant temperature control
- - Automatic piece picker
- - Automatic front door opening/closing
- - Tool life management
- - Tool life prediction
- - 1-10s4-1-l rotary coupling, passage d80, adhesion
- - Plc: complete for lb3000exiij

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
