Okuma - LB2000EXII MCCZ-TUR-OKU-2013-00002

Name: Okuma LB2000EXII MC
Brand: Okuma
SKU: CZ-TUR-OKU-2013-00002
Price: 4442450 INR
Availability: InStock

Rs. 4,442,450

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Okuma LB2000EXII MC For Sale | gindumac.com

Show in original language

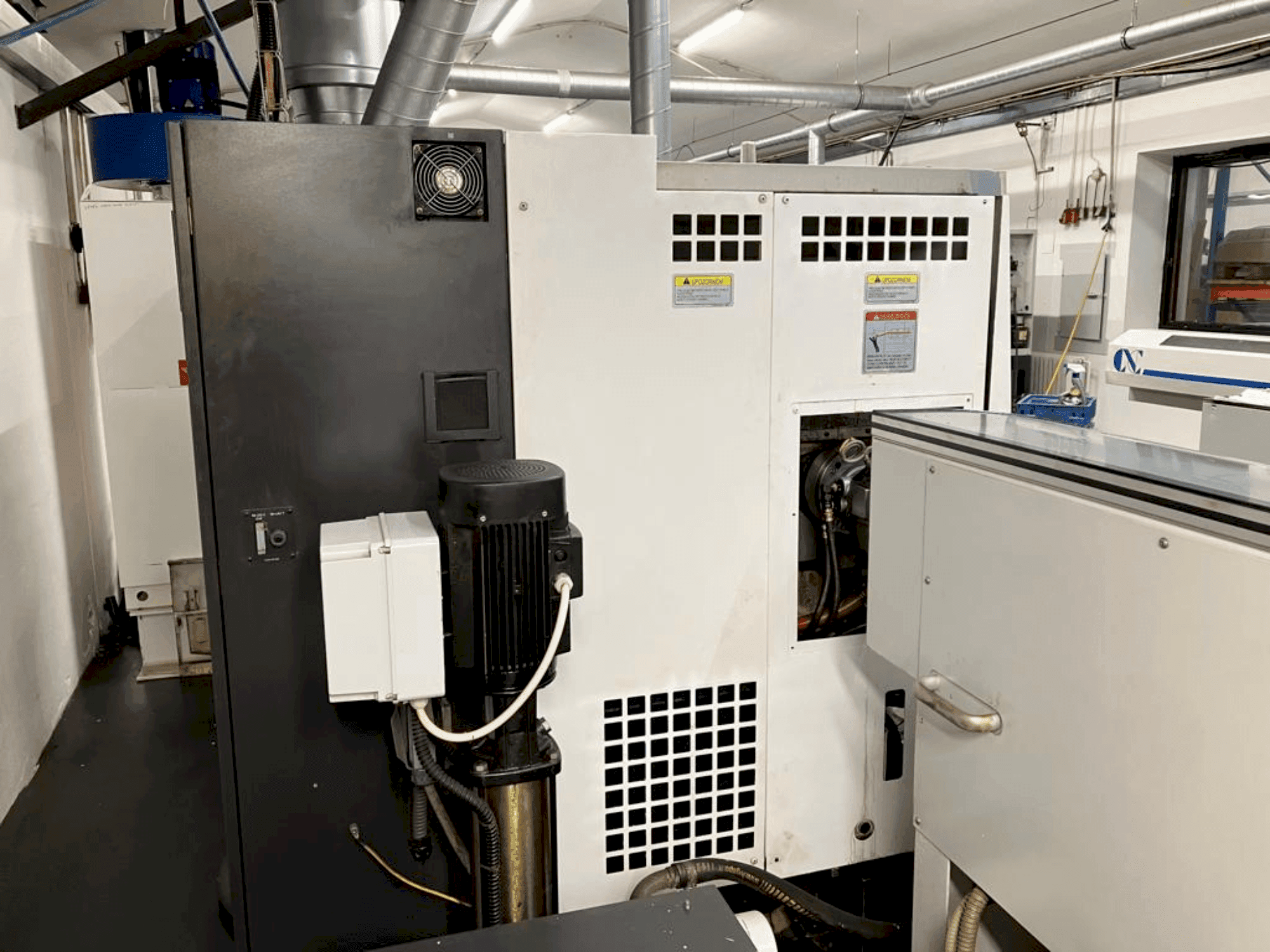

This 3-axis Okuma LB2000EXII MC horizontal turning machine was manufactured in 2013. It features a chuck size of 6 inches, a maximum swing diameter of 580 mm, and a maximum machining diameter of 360 mm. The spindle speed ranges from 50 to 6000 rpm, and it includes a turret head with 12 tool positions. Additionally, it comes with an IRCO MUK-7012 barfeed magazine and Hainbuch SPANNTOP collet chuck. Consider the opportunity to buy this Okuma LB2000EXII MC horizontal turning machine. Contact us for more information.

Overview

brand: Okuma
year: 2013
MODEL: LB2000EXII MC
application type: Turning
Location: Czech Republic
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: OKUMA

Technical Information - Okuma LB2000EXII MC

General Data

Measurements width: 1985 mm
Measurements depth: 1734 mm
Measurements height: 2250 mm
Machine weight: 4050 kg

Control Unit

Brand: OKUMA
Model: OSP P300L

Main drive

Spindle speed range: 50 - 6000 rpm 1/MIN

Movement

X-AXIS Movement: 260 MM
Y-AXIS Movement: 100 MM
Z-AXIS Movement: 350 MM

Additional equipment

- Includes Barfeed Magazine: IRCO MUK-7012 (6-70mm/1250mm)
- Includes Tool Holders (including driven) and Collet Chuck Hainbuch SPANNTOP

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Power: 11. 0/7. 5; (15/11; 22/15) kw
- - Rapid traverse x-axis: 25 m/min /rapid traverse y-axis: 12. 5 m/min/rapid traverse z-axis: 30 m/min
- - Chuck size: 6 inch
- - Max. Swing diameter: 580 mm
- - Max. Machining diameter: 360 mm
- - Max. Machining length: 150 mm
- - Number of tool positions: 12
- - Clamping for external machining: 20 x 20 mm / clamping for internal machining: diameter 32 mm
- - Turret : driven tool speed: 45 - 6000 rpm /npower: 5. 5/3. 7 (7. 1/4. 1) kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
