OKK HMC 500 Horizontal Machining Center

Show in original language

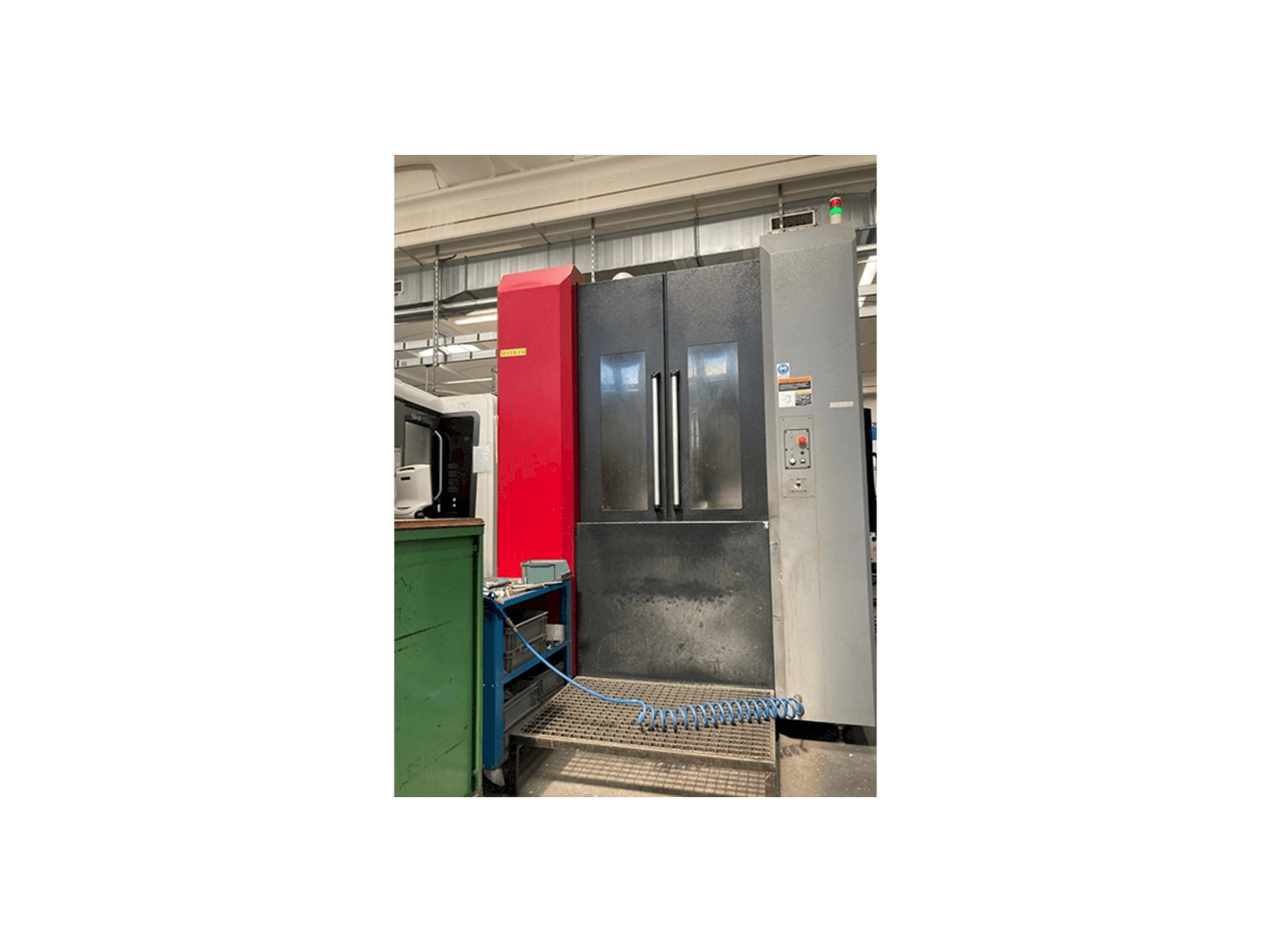

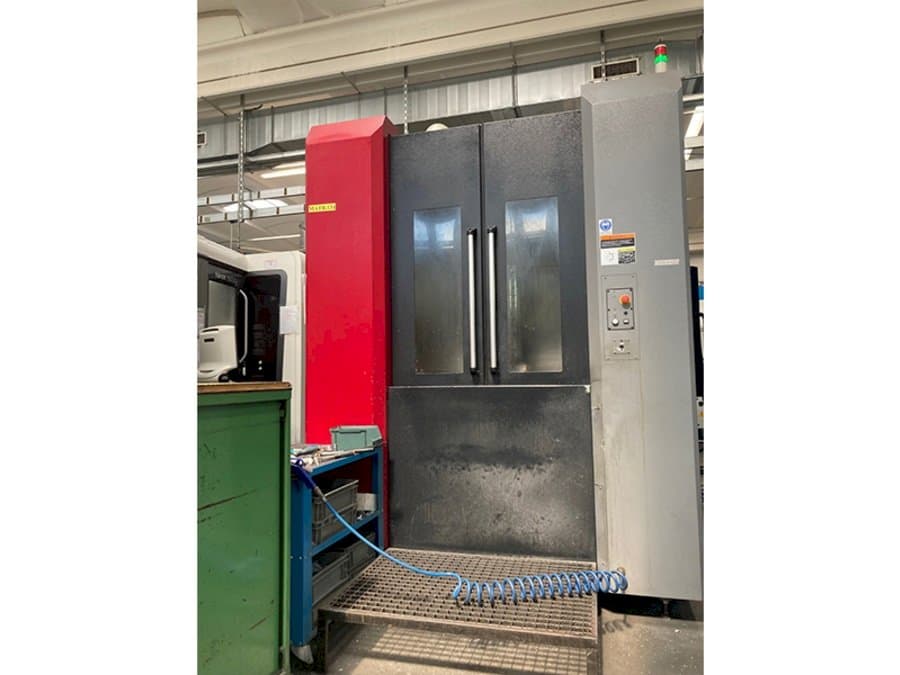

This OKK HMC 500 Horizontal Machining Center from 2016 was built in Germany. It counts with 40320 hours of cutting time. It is operated through a Fanuc Series control unit. This 5 axis machine can operate with a spindle speed up to 18000 rpm.

Overview

brand: OKK
year: 2016
MODEL: HMC 500
production hours: 40320
application type: Milling
Location: Italy
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - OKK HMC 500

General Data

Measurements width: 3939 mm
Measurements depth: 4102 mm
Machine weight: 5280 kg

Control Unit

Model: Series
Brand: FANUC

Main drive

Spindle speed range: 18000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 762 mm
X-AXIS Rapid traverse: 45 m/min
Y-AXIS Movement: 508 mm
Y-AXIS Rapid traverse: 45 m/min
Z-AXIS Movement: 520 mm
Z-AXIS Rapid traverse: 40 m/min
A-AXIS Movement: +30°/-110° MM
C-AXIS Movement: 360° MM

Table

Table load: 200 kg

Tools

Slots in storage: 40
Max weight: 7 kg
Max tool diameter: 75 mm
Max tool length: 300 mm

Media

Power consumption: 48 KVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle nose to table (min-max) 3. 5 in / 24 in (90 mm / 610 mm)
- - Table diameter 9. 8 in (248 mm)
- - Peak spindle motor 47 hp @ 2,800 rpm (35 kw @ 2,800 rpm)
- - Spindle torque (peak) 88 ft. Lbs (119 nm)
- - Max programmable feedrate 1575 in/min (40 m/min)
- - A, c axis max. Rpm 25 rpm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
