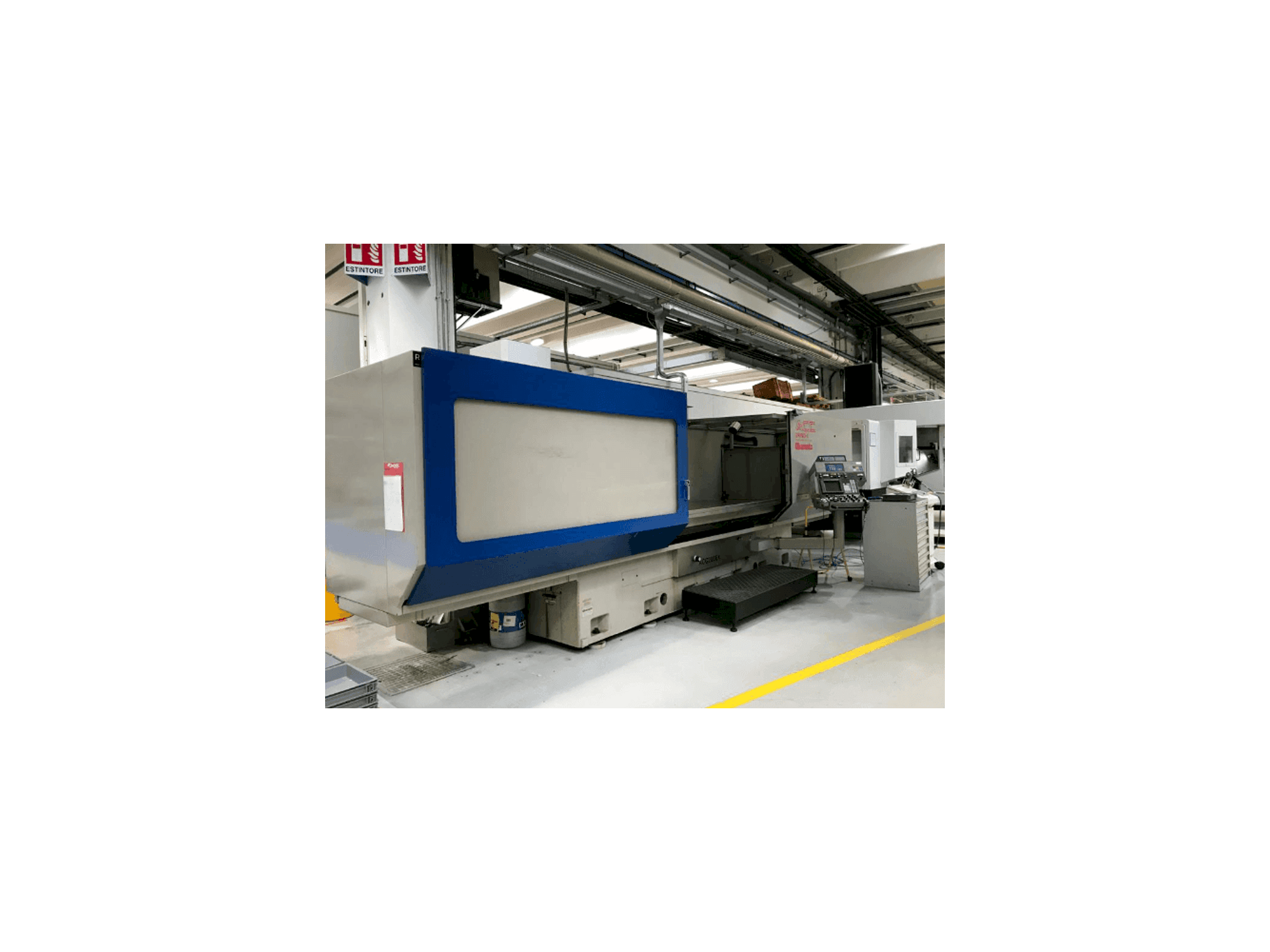

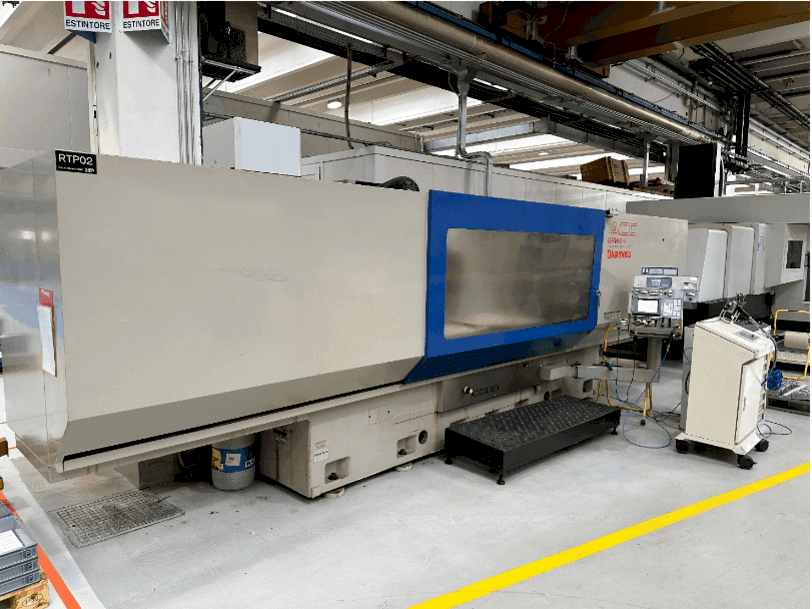

OKAMOTO - ACC 208exIT-GRI-OKA-2008-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Max distance to the table surface under the wheel 400 mm. 685 mm.
  • - Average weight of the vise: 1152 kg
  • - Load capacity of the table (weight of the vice included): 2000 kg
  • - T-slots (width x n. ) 20x3 mm.
  • - Longitudinal advance
  • - Max stroke 2150 mm.
  • - Longitudinal feed speed m/min. 3 – 30
  • - Max stroke 760 mm.
  • - Automatic advance stroke 760 mm.
  • - Rapid feeding speed: 4000mm/min.
• Qualitative Machine Benefits:
  • - Hand feed per turn (x1/x10/x50) mm. 0. 1/1/5
  • - Graduations from handwheel (x1/x10/x50) mm. 0. 001/0. 01/0. 05
  • - Intermittent feeding: 0. 5 – 40 mm.
  • - Continuous feeding speed:. 0 – 1000 mm/min
  • - Hand feed per revolution:(x1/x10/x10). 0. 01/0. 1/1 mm
  • - Graduations from handwheel : x1/x10/x10). 0. 0001/0. 001/0. 01 mm
  • - Coarse pass depth. 0-0. 5 (16 steps) mm
  • - Fine pass depth. 0-0. 04 mm (11 steps)
  • - Fine grinding tolerance. 0-0. 05 mm (9 steps)
  • - Feeding with air cutting ((coarse/fine) mm. 0-9999. 9, hydraulic oil pump (for the sharpener) kw 0. 2/4, vertical feeding (ac servomotor) kw 0. 9, transversal feed kw 0. 9, 380/400/415. 3p 50hz, 31kva, grinding holder flange with hole dia. 127 mm.
