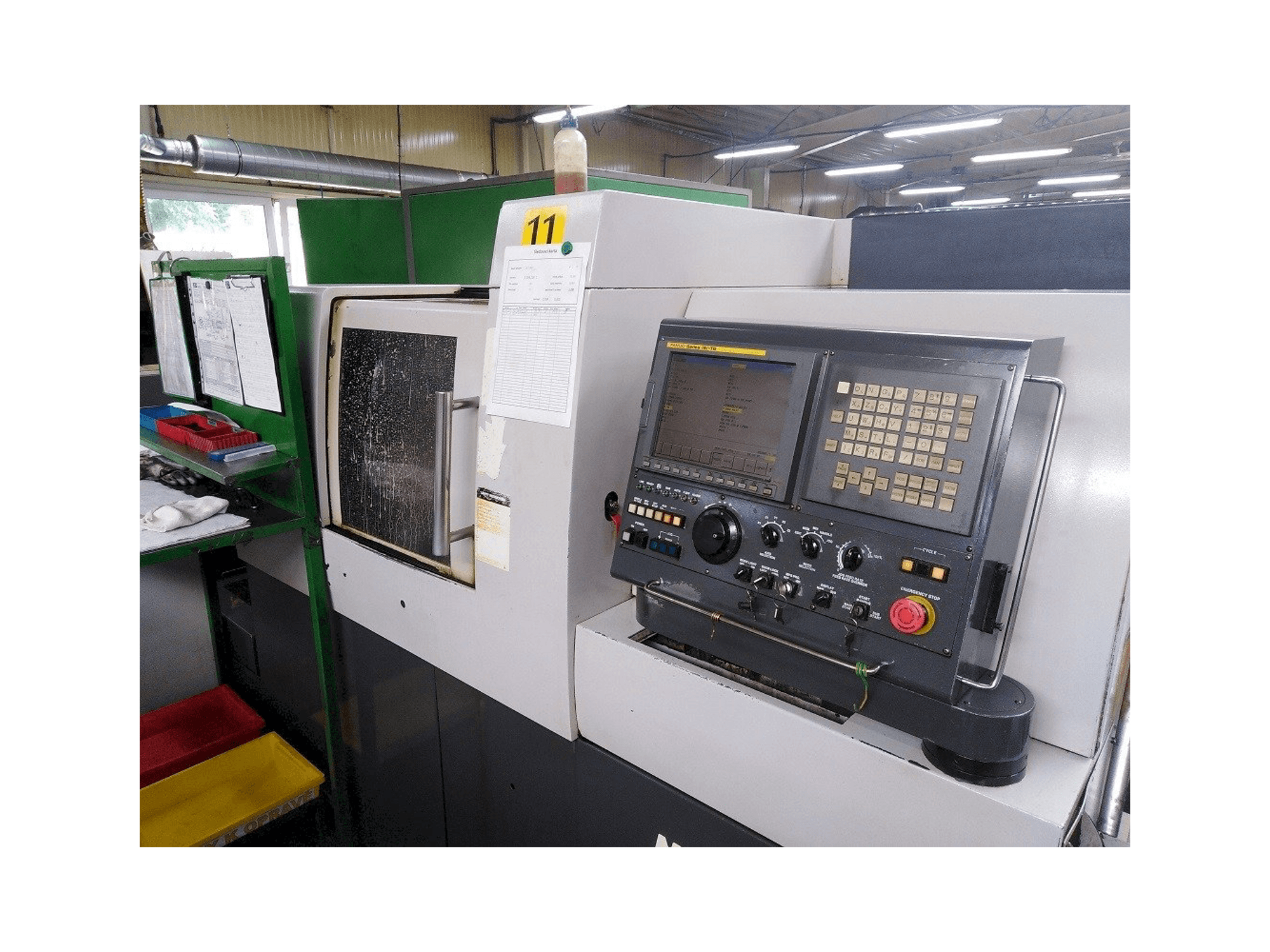

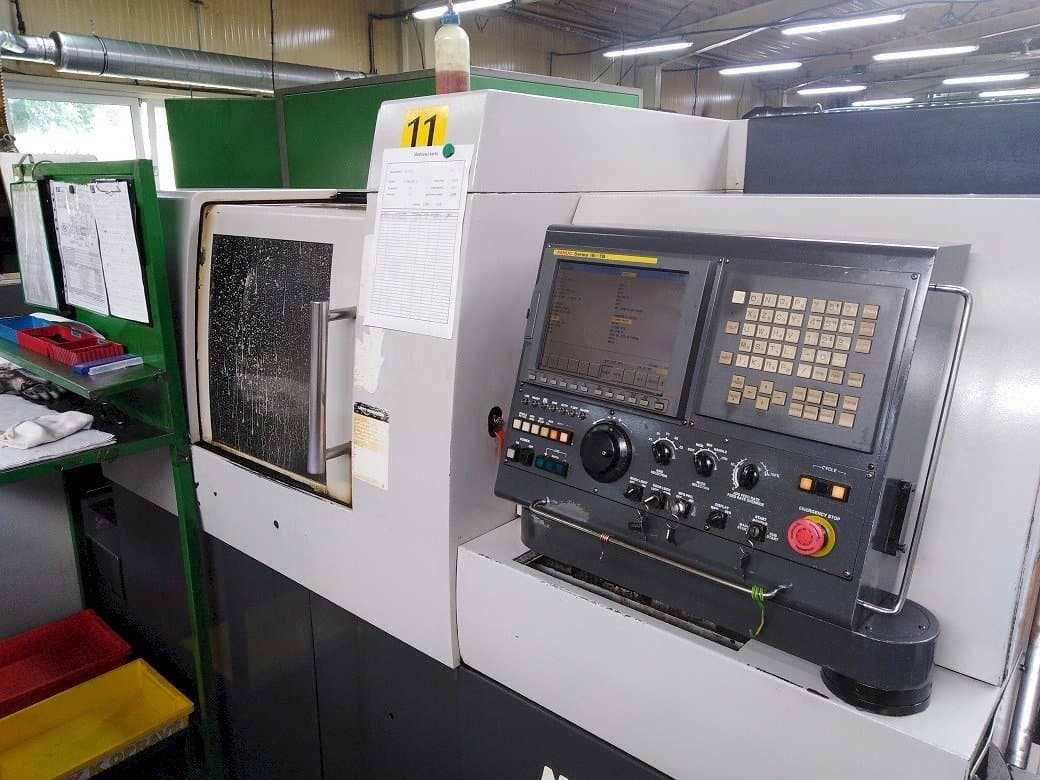

Nexturn SA-38E Lathe

Show in original language

This Nexturn SA-38E Lathe was manufactured in South Korea in 2006. It has 42500 operation hours, of which 14408 are cutting time. It is equipped with a Fanuc Series 18i-TB control unit. This 7 axis machine can works with a spindle speed up to 8000 rpm. It has a new central lubrication on sub-spindle, new guideways and new axis screws on X2, Z2 axis.

Overview

brand: Nexturn
year: 2006
MODEL: SA-38E
production hours: 42500
application type: Turning
Location: Czech Republic
machine type: Swiss Type Turning Machine
control unit brand: FANUC

Technical Information - Nexturn SA-38E

Control Unit

Control Brand: FANUC
Control Model: Series 18i-TB

Dimensions

Machine Depth: 1375 mm
Machine Height: 1670 mm
Machine Weight: 3500 kg

Movement

Number of Axes: 7

Technical Specification

Spindle Power: 5.5 kW
Spindle Speed: 8000 RPM

Additional Information

Additional equipment

Barfeed magazine IEMCA BOSS 542 (3000 mm)

Machine Benefits

Qualitative Machine Benefits

Includes machine manual
Good condition, regularly maintained
2021 - new central lubrication on sub-spindle
2021 - new guideways and new axis screws on x2, z2 axis

Technical Machine Benefits

Simultaneous axis operation
Maximum turning bar diameter: 38 mm
Maximum turning bar length: 210 (250) mm
7 controlled axis - x1, z1, y, x2, z2, c1, c2
Subspindle: 1. 5 - 2. 2 kw
Cross drill/milling unit: 0. 55 / 1. 1 kw
Work feedrate: 6000 mm/min
Rapid traverse rate: 32 mt/min
Max. Drilling/tapping main dia. : 12/m10
Max. Drilling/tapping cross & sub dia. : 10/m8

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
