➤ Used Negri Bossi NB 62 Injection Moulding Machine

Show in original language

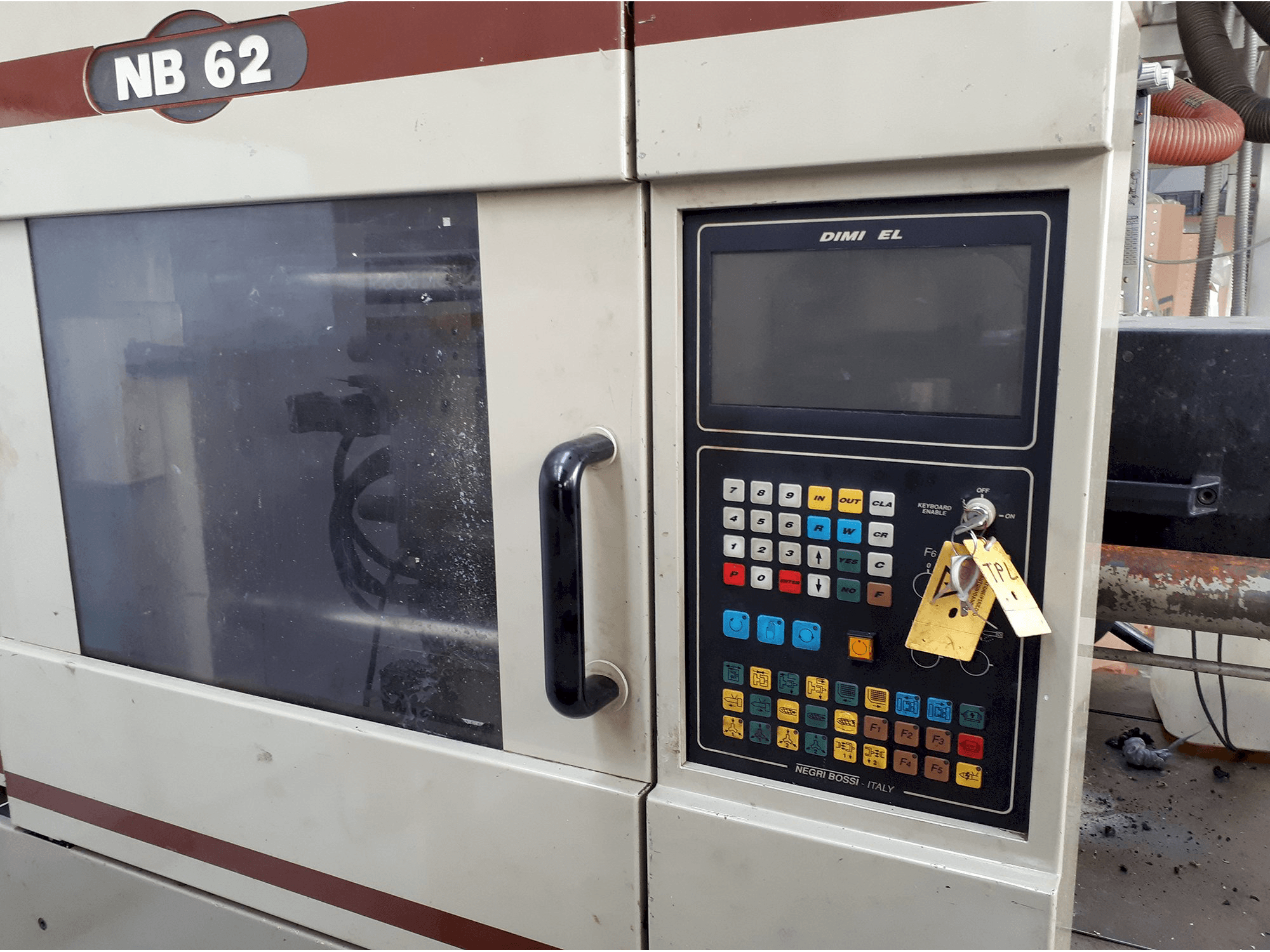

This Negri Bossi NB 62 Injection Moulding Machine from Italy was manufactured in 1995 and has a working time of approximately 60000 hours since then. Equipped with a DIMI EL Control unit, this machine is capable of working with a clamping force of 620 kN.

Overview

brand: Negri Bossi
year: 1995
MODEL: NB 62
production hours: 60000
application type: Injection Moulding
Location: Italy
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Negri Bossi NB 62

General Data

Measurements width: 3745 mm
Measurements depth: 940 mm
Measurements height: 1860 mm
Machine weight: 2300 kg

Injection Unit

Screw diameter: 32 mm
Shot weight: 120 g/PS
Stroke volume: 127 cm³
Injection pressure: 1715 bar
Screw speed: 290 rpm
Heating capacity: 5.7 kW
Adjustable heating zones: 4
Nozzle pressure: 31 KN

Clamping unit

Clamping force: 620 kN
Opening stroke: 310 mm
Distance between bars: 315x315 mm
Mould height min: 120 mm
Mould height max: 350 mm
Size of mold platens: 505x490 mm
Ejector stroke: 70 mm
Ejector force for / back: 23.8 kN

Media

Main electronic connection: 380 V

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
