Negri Bossi NB 60 Injection Moulding Machine

Show in original language

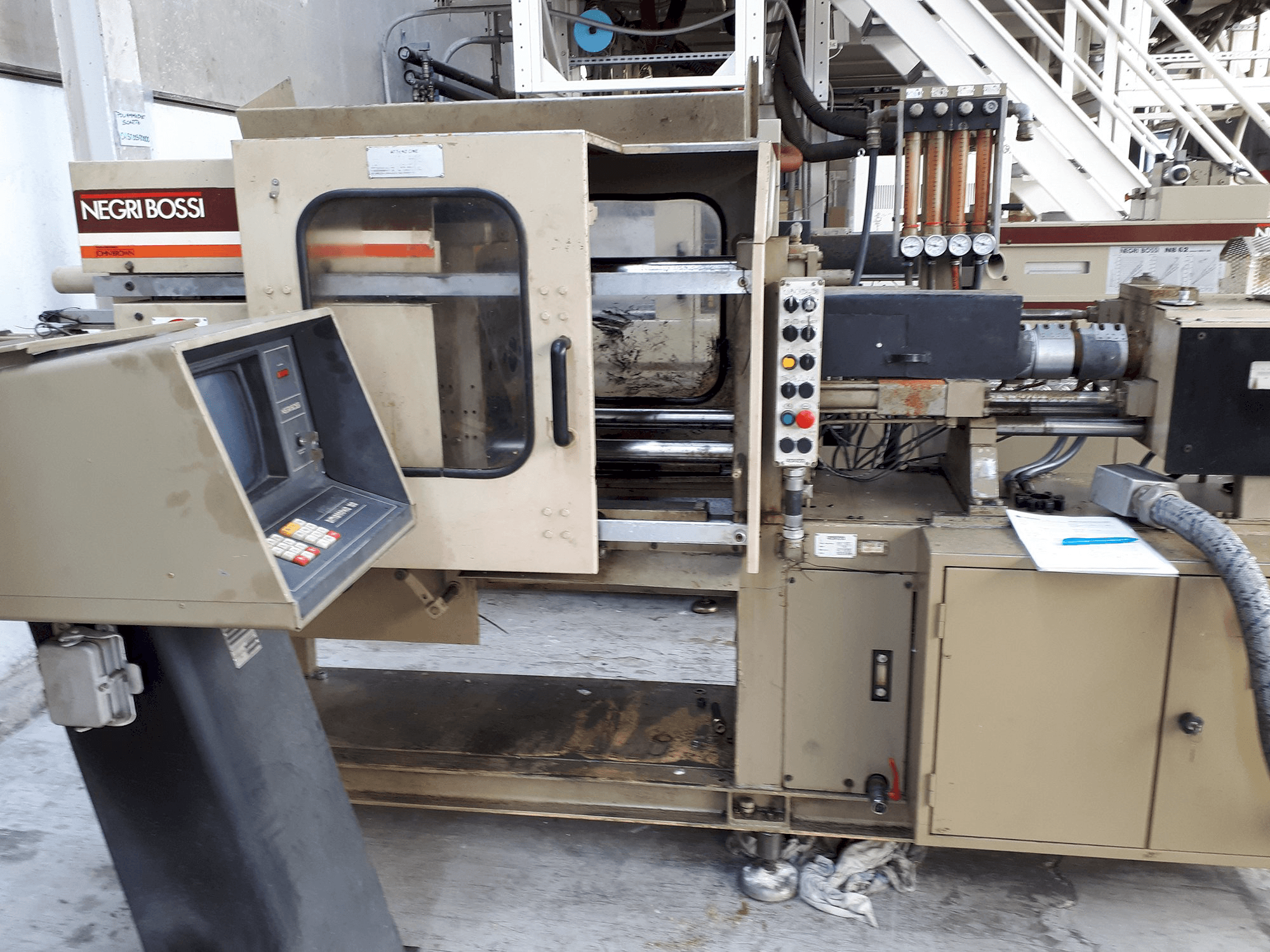

This Negri Bossi NB 60 Injection Moulding Machine was made in 1988 in Italy and has a production time of 107000 hours since then. Equipped with a Dimigraphic 100 Control unit, this machine offers a clamping force of 620 kN. Must be noted that the pump must be replaced.

Overview

brand: Negri Bossi
year: 1988
MODEL: NB 60
production hours: 107000
application type: Injection Moulding
Location: Italy
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Negri Bossi NB 60

General Data

Measurements width: 4010 mm
Measurements depth: 1075 mm
Measurements height: 1480 mm
Machine weight: 2200 kg

Injection Unit

Screw diameter: 35 mm
Shot weight: 143 g/PS
Stroke volume: 152 cm³
Injection pressure: 1380 bar
Screw speed: 290 rpm
Heating capacity: 4.5 kW
Adjustable heating zones: 4
Nozzle pressure: 30 kN

Clamping unit

Clamping force: 620 kN
Opening stroke: 310 mm
Distance between bars: 310x310 mm
Mould height min: 150 mm
Mould height max: 350 mm
Size of mold platens: 490x490 mm
Ejector stroke: 70 mm
Ejector force for / back: 23 kN

Media

Main electronic connection: 380 V

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
