- Muratec MD 200 Lathe

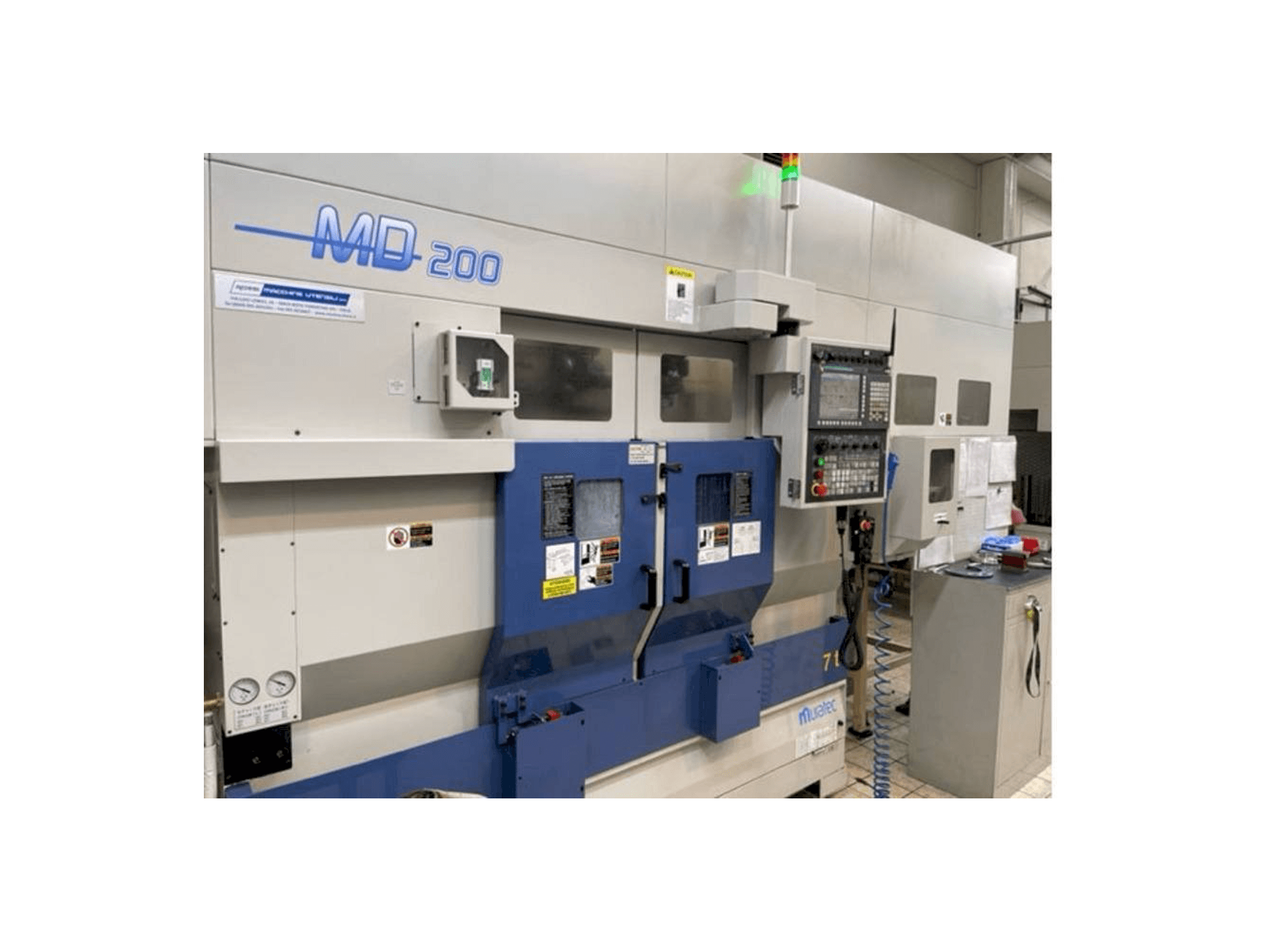

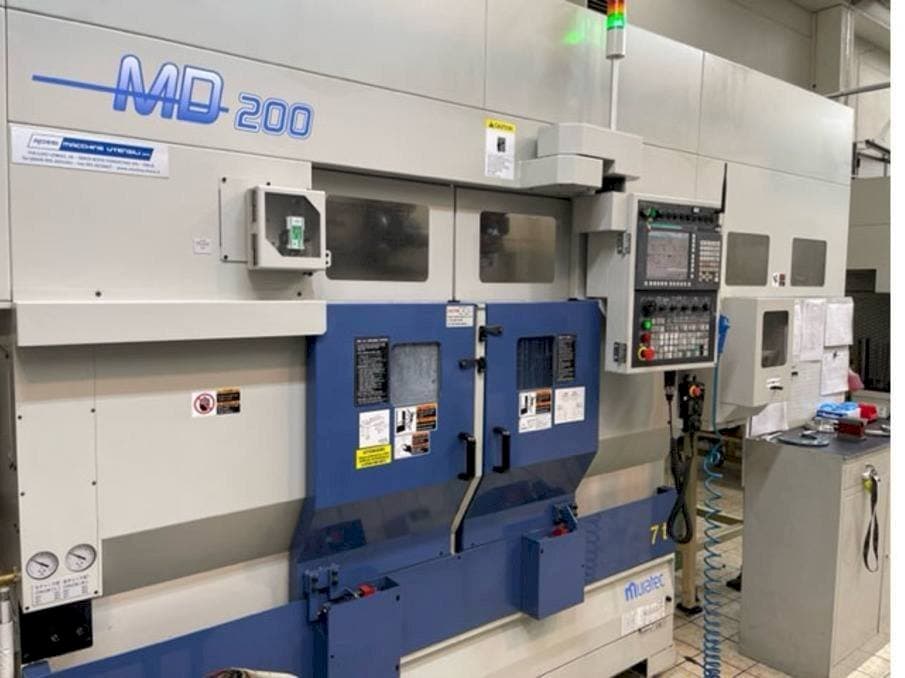

This Muratec MD 200 Lathe was manufactured in the year 2019 in Japan. It is equipped with a Fanuc CNC control unit. The machine has a spindle speed of 2000 rpm, is in good condition and well maintained.
Overview
- brand: Muratec
- year: 2019
- MODEL: MD 200
- application type: Turning
- Location: Italy
- machine type: Horizontal Turning Machine
- availability: Sold
- control unit brand: FANUC
Technical Information - Muratec MD 200
General Data
- Measurements width: 3200 mm
- Measurements depth: 4840 mm
- Measurements height: 2200 mm
- Machine weight: 7400 kg
Control Unit
- Model: CNC
- Brand: FANUC
Main drive
- Spindle speed range: 2000 1/MIN
Additional Information
- Technical Machine Benefits:
- - Spindle nose asa 6
- - Spindle power 11 kw
- - Turnable diameter 200 mm
- - Self-centering diameter: 254 mm
- - Distance between spindles : 440 mm
- - Bar passage :65 mm
- - Turnable length: 100 mm
- - Number of secondary spindle revolutions :2000
- - Number of tool places in the first turret 12
- - Motorized number of first turret 12
- Qualitative Machine Benefits:
- - Number of second turret tool places 12
- - Second turret motorized number 12
- - Rapid feeds linear axes x y z 18 m / min
- - Gantry loader
- - Maximum capacity of the gantry 8 x 2 kg
- - Maximum diameter of the piece that can be transported :200 mm
- - Maximum transportable piece length: 100 mm
- - Stoker or blanks warehouse yes
- - Pallet number 14
- - Chip conveyor belt
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
