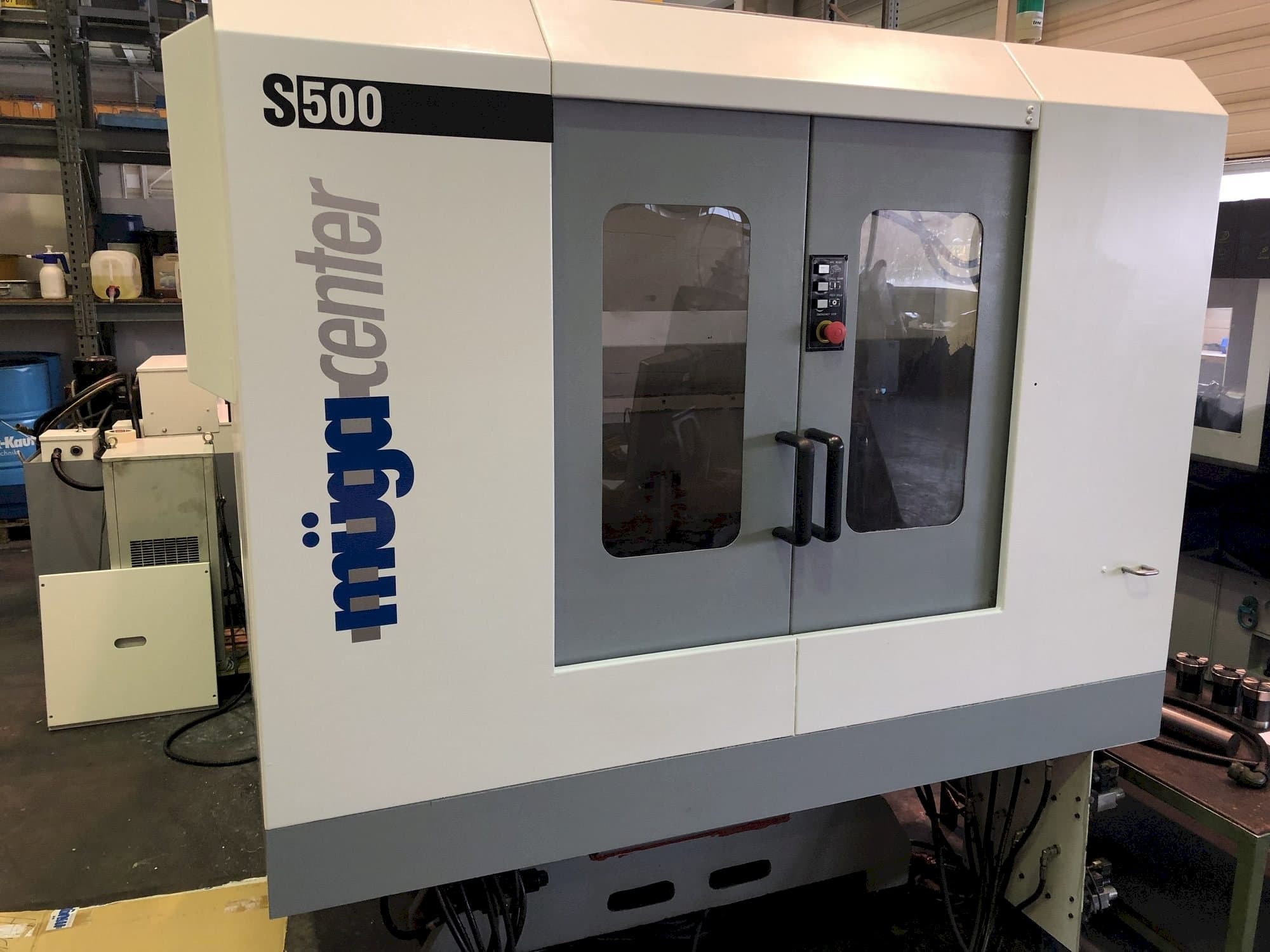

Müga S500 Vertical Machining Center

Show in original language

This Müga S500 Vertical Machining Center from Germany was manufactured in 2004. Operated through a Mitsubishi 64S Control unit, this machine can perform with a spindle speed up to 15000 rpm. Several benefits such as a rotary table, a chip conveyor, an electric hand wheel and an air extractor among others are included.

Overview

brand: Muga
year: 2004
MODEL: S500
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: MITSUBISHI

Technical Information - Muga S500

Control Unit

Model: 64S
CNC main language: German
CNC language customizable: Yes
Brand: MITSUBISHI

Main drive

Number of spindles: 1
Spindle speed range: 15000 rpm 1/MIN

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 350 mm

Table

Outer length: 600 mm
Outer width: 400 mm
Number of tslots: 3

Tools

Slots in storage: 30 + 1
Max weight: 3 kg
Max tool diameter: 70 mm
Max tool length: 200 mm
Type of tool holder: BT30

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rotary table
- - Chip conveyor
- - Paper band filter
- - Ikz 20 bar
- - Electric handwheel
- - Air extraction
- - Traffic light

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
