MT Cut V110H Vertical Machining Center

Show in original language

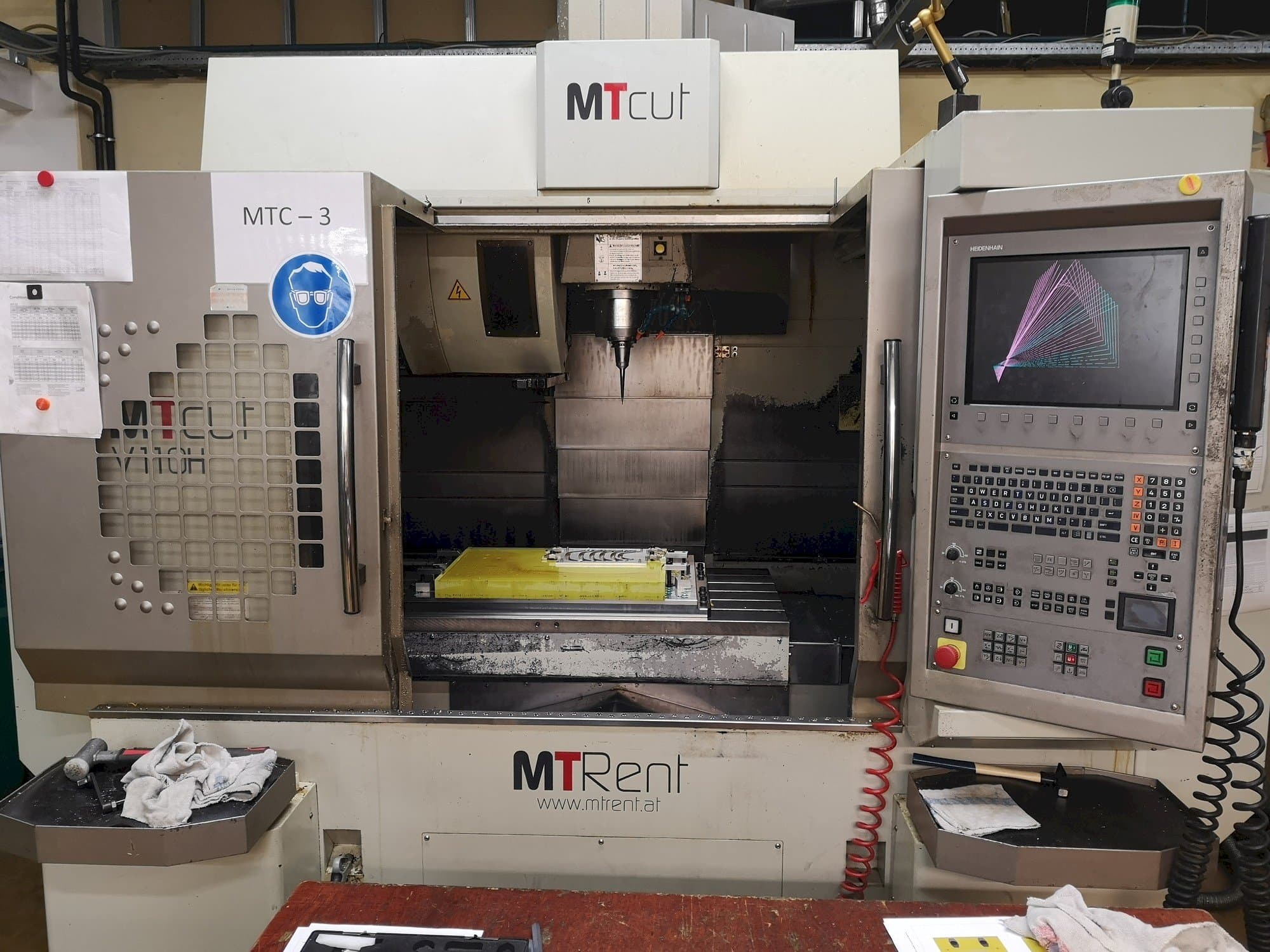

This MT Cut V110H Vertical Machining Center was manufactured in the year 2007 in Taiwan. It is operated with a Heidenhain control unit. This machine can operate with a speed up to 12000 rpm.

Overview

brand: MTcut
year: 2007
MODEL: Cut V110H
application type: Milling
Location: Austria
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - MTcut Cut V110H

General Data

Measurements width: 3160 mm
Measurements depth: 2870 mm
Measurements height: 3000 mm
Machine weight: 850 kg

Control Unit

Brand: HEIDENHAIN

Main drive

Spindle speed range: 1 - 12000 1/MIN

Movement

X-AXIS Movement: 1100 mm
X-AXIS Rapid traverse: 32m/min
Y-AXIS Movement: 610 mm
Y-AXIS Rapid traverse: 32m/min
Z-AXIS Movement: 610 mm
Z-AXIS Rapid traverse: 32m/min

Table

Outer length: 1250 mm
Outer width: 610 mm
TSlots size: 18mm x 5 x 100mm
Table load: 1000 kg

Tools

Type of tool holder: BT40/CAT40/DIN40/BBT40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle diameter Ø 70mm
- - Positioning accuracy 0. 005mm
- - Repeat accuracy x. Y. And z-axis 0,003mm
- - Distance spindle nose - work table 120 - 730mm
- - Distance spindle centre to stand 668mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
