- Mitsui Seiki HU40A Horizontal Machining Center

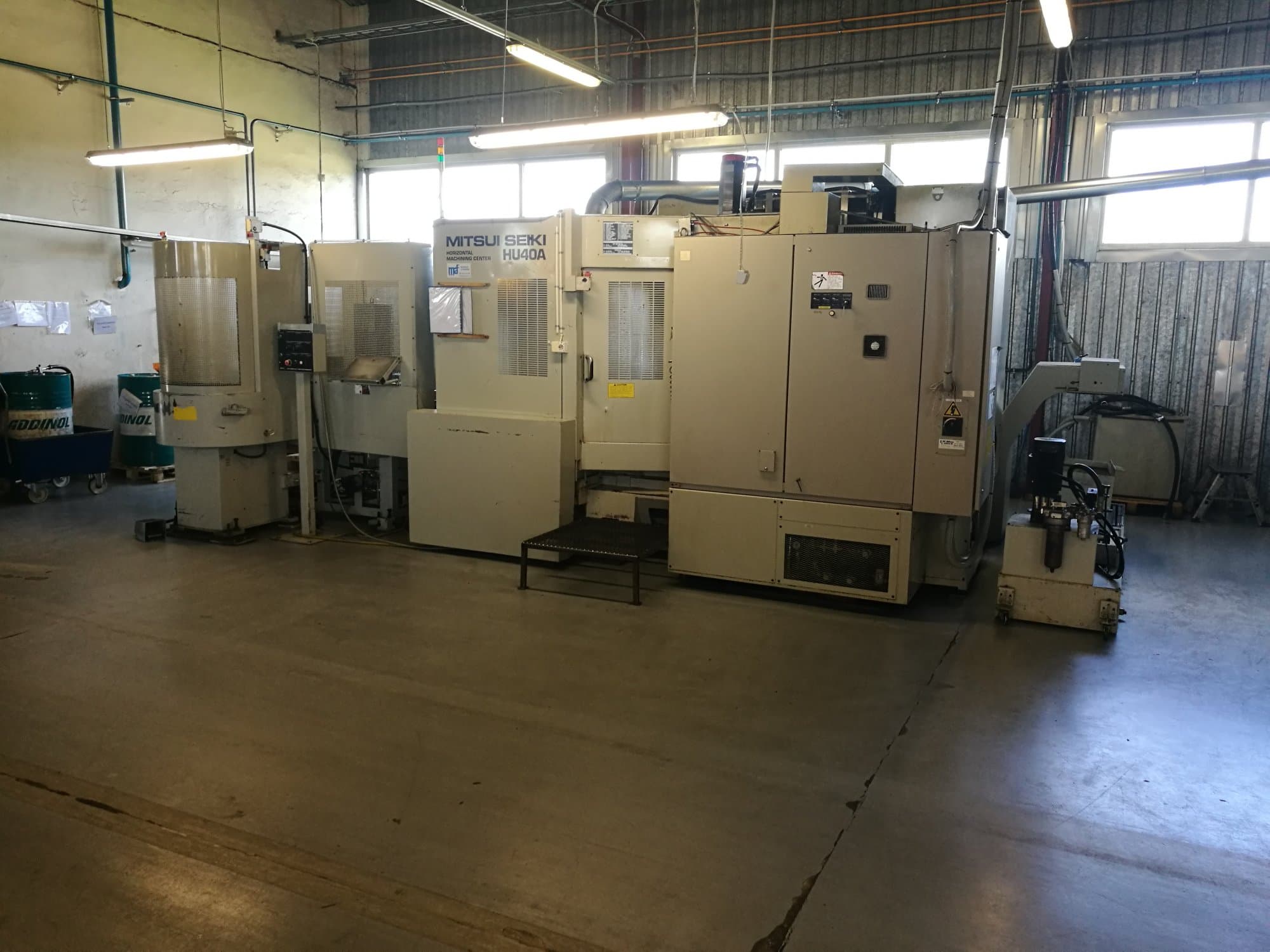

This Mitsui Seiki HU40A Horizontal Machining Center was manufactured in 1998 in Japan and has a working record of 8687 production hours. Equipped with a FANUC Series 16M Control unit, this machine has mainly worked with steel during the past.
Overview
- brand: Mitsui Seiki
- year: 1998
- MODEL: HU40A
- production hours: 8687
- application type: Milling
- Location: Estonia
- machine type: Horizontal Machining Centre
- availability: Sold
- control unit brand: FANUC
Technical Information - Mitsui Seiki HU40A
General Data
- Measurements width: 4293 mm
- Measurements depth: 2413 mm
- Measurements height: 2820 mm
- Machine weight: 13000 kg
Control Unit
- Brand: FANUC
- Model: Series 16MC
Main drive
- Number of spindles: 1
- Spindle speed range: 12000 1/min
Movement
- X-AXIS Movement: 560 x 280 mm
- Y-AXIS Movement: 560 x 660 mm
- Z-AXIS Movement: 560 x 710 mm
Workpiece
- Workpiece drm: 600 mm
- Workpiece weight: 400 kg
Table
- Outer length: 400 mm
- Outer width: 400 mm
- Height adjustment: 800 mm
Tools
- Max weight: 9 kg
- Max tool diameter: 125 mm
- Max tool length: 300 mm
Media
- Main electronic connection: 400 V / 50 Hz
- Chip conveyor: Yes
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
